PROXXON 24112 Mill/drill head PF 250/BL
€749.00
Content:
1 pcs
/ 5
Delivery time 5 working days
Variante
Product number:
1985716
Manufacturer no.:
24112
EAN:
4006274241121
Weight in kg:
8
Product information "PROXXON 24112 Mill/drill head PF 250/BL "

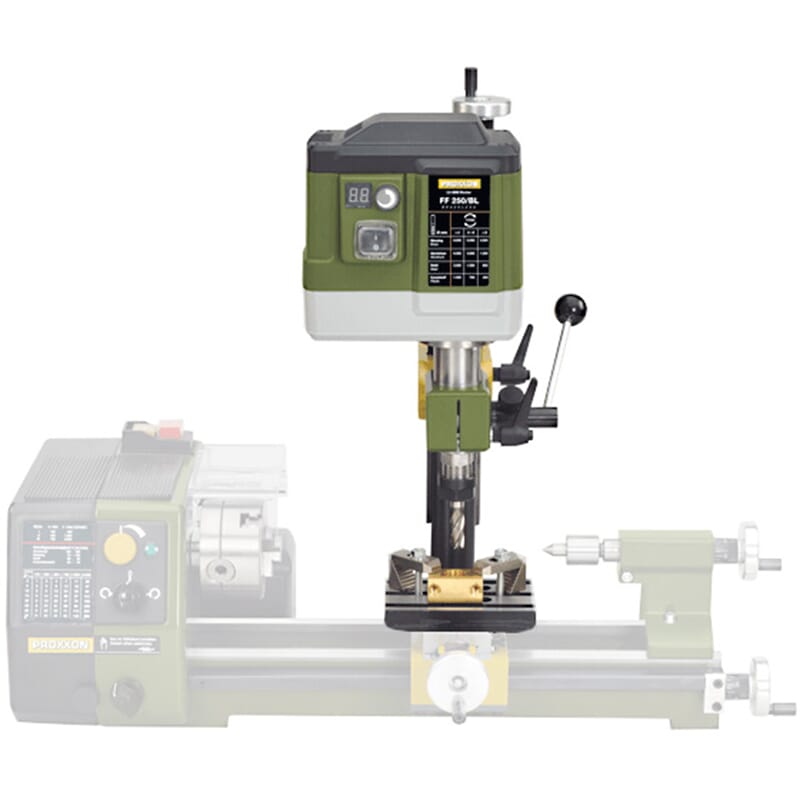

PROXXON 24112 Mill/drill head PF 250/BL
Converts your lathe PD 250/E or PD 400 into a complete machining centre.
Features:
- Incudes column (Ø 35 x 400mm), mounting bracket and fastening screws (the PD 250/E and PD 400 already come with a plane-milled surface).
- The lathe's top slide is replaced with the table (supplied) of 110 x 70mm, with 3 T-slots.
- The lathe now functions as a compound table, with X-Y travel being longitudinally and cross-wise respectively.
- The mill/drill head is identical to the miller FF 250/BL.
- Three collets of sizes 6 - 8 and 10mm are included.
Product Safety and Downloads
Documents and datasheets
Product safety information
Manufacturer
PROXXON S.A.
Härebierg 6-10
6868 Wecker
Luxembourg
i@proxxon.com
Skip product gallery
Zubehör
Proxxon 24140 Fine feed for milling machine PF 230
Regular price:
€91.95
PROXXONcolor> 24140 Fine feed for milling machine PF 230 and MICRO miller FF 230
Features:
Easily installed in a few seconds!
The feed may be used via either the height feed (vertical) or the fine feed in the tilted position
The graduated scale may be zero reset
One revolution is equivalent to 1.5mm spindle travel (1 division = 0.05mm)
