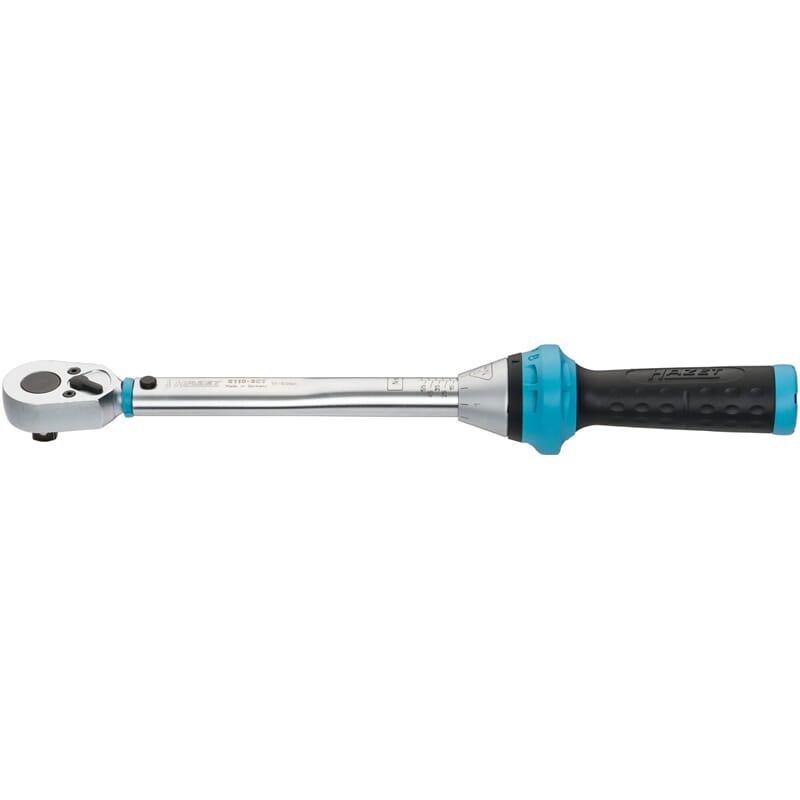

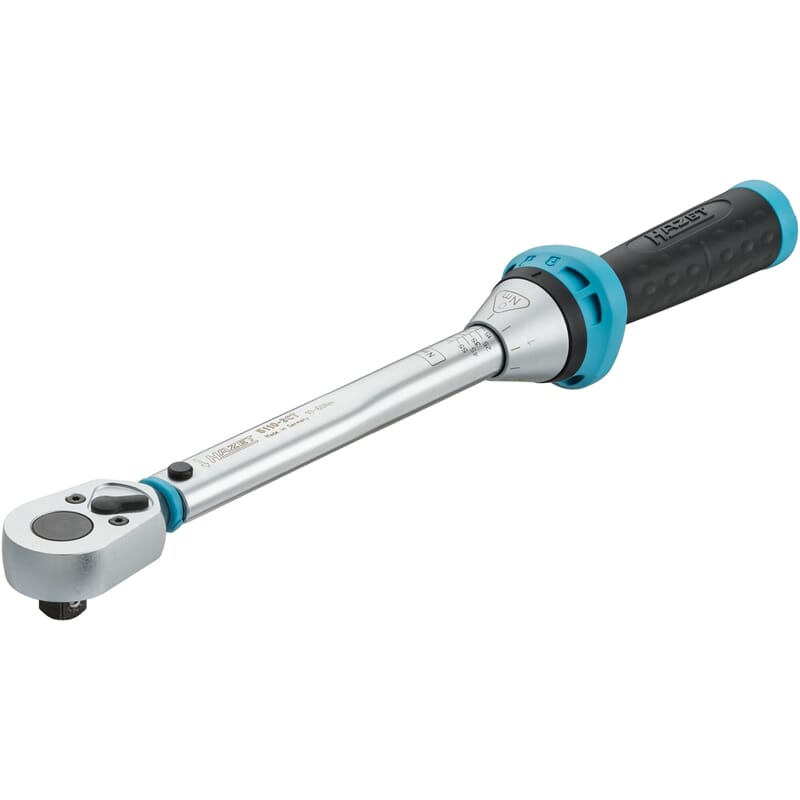

Hazet 5110-3CTCAL Torque wrench 3/8" 10-60Nm
Product number:
1986050
Manufacturer no.:
5110-3CTCAL
EAN:
4000896243136
Weight in kg:
0.581
Product information "Hazet 5110-3CTCAL Torque wrench 3/8" 10-60Nm "
Hazet 5110-3CTCAL Torque wrench - Nm min-max: 10-60 Nm - Tolerance: 3% - Square, solid 10 mm (3/8 inch)
Features:
- User-friendly reversible ratchet
- Torque wrench including DAkkS calibration certificate
- Accuracy ± 3% of the scale value (in direction of actuation for right-hand tightening) (5107-3 CT ± 4% accuracy of scale value)
- For left-hand tightening, use our torque wrenches with insert tool
- Safety:Haptic (close-gap release)
- Audible (-click- sound)
- Designed for rough workshop use

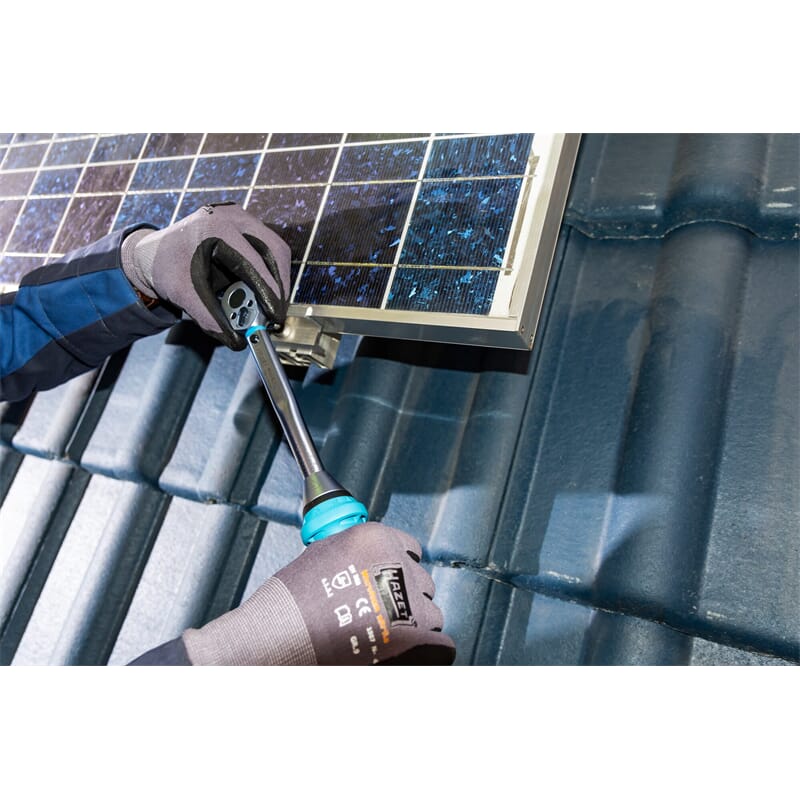

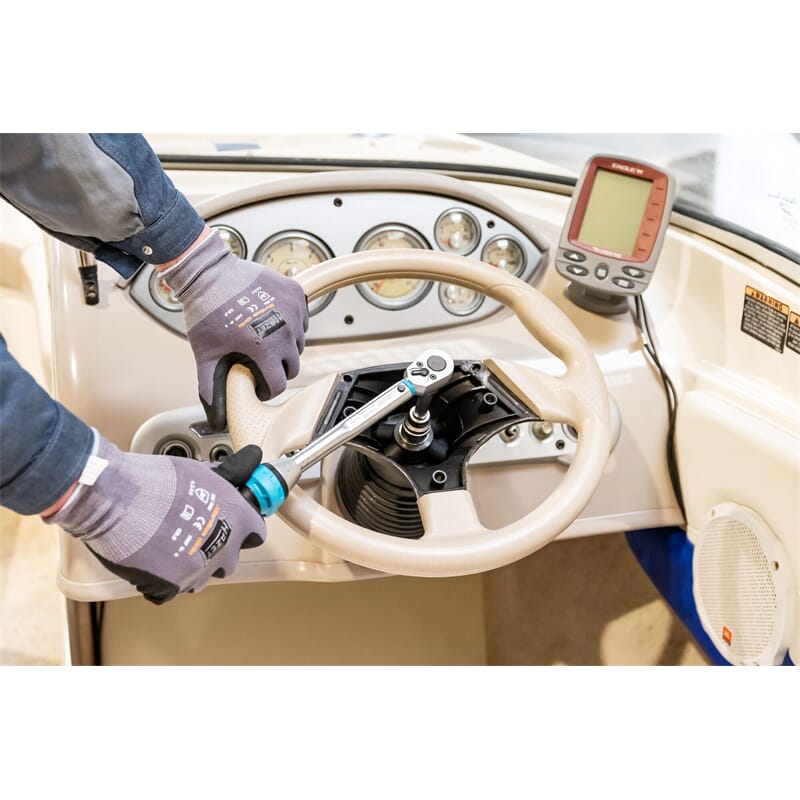

- Wide range of applications for controlled screw tightening in tyre service, bicycle, passenger car and commercial vehicle applications as well as various applications in trade and industry
- Optimised sealing ring to protect against debris
- Ratchet repair set for customer-oriented self-assembly enables decades of use
- Handle with better grip for easier power transmission
- Adjustment aid with detent points for optimised operator guidance ensures safe and fast adjustment of the desired torque value by turning the handle
- Safe locking of the setting values by latching function on the rotary assembly
- Rotary assembly in triangular form prevents uncontrolled rolling
- Lock symbols indicate the respective locking status
- Can be attached to the cable loop through openings on the locking rotary assembly

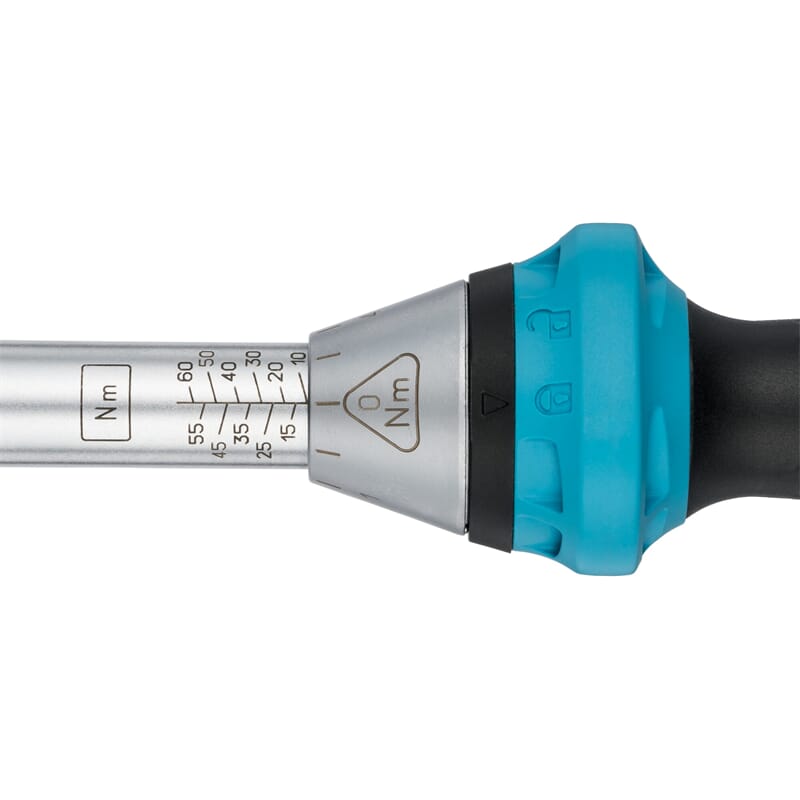

- Easy-to-read, high-contrast scale
- Permanent readability due to laser marking on the scale bush
- Integrated shift lever
5121-3 CT - 5123-3 CT: shift level with idle function - reduces risk of injury and malfunction - With calibration certificate and serial number
- Delivery in sturdy Hexa plastic box
- DIN EN ISO 6789-2:2017, DIN 3120, ISO 1174-1
- Made in Germany
- Output: Square, solid 10 mm (3/8 inch)
- Dimensions / length: 320 mm
- Nm min-max: 10---60 Nm
- Tolerance: 3 %
- Scale Graduation (Nm): 0.25 Nm
- Actuating force min.-max. kg: 3.9---25.0 kg
- Number of teeth: 30 (Opening angle 12°)
- Head Thickness a: 14.5 mm
- Head Width b: 32 mm
- No more turning back: Continuous long-term tests on the 5000 series and 6000 series of HAZET torque wrenches have demonstrated that turning them back to the smallest scale value is not required
Technical features:
- Weight: 0
- Hazet part number: 5110-3CTCAL
- EAN: 4000896243136
