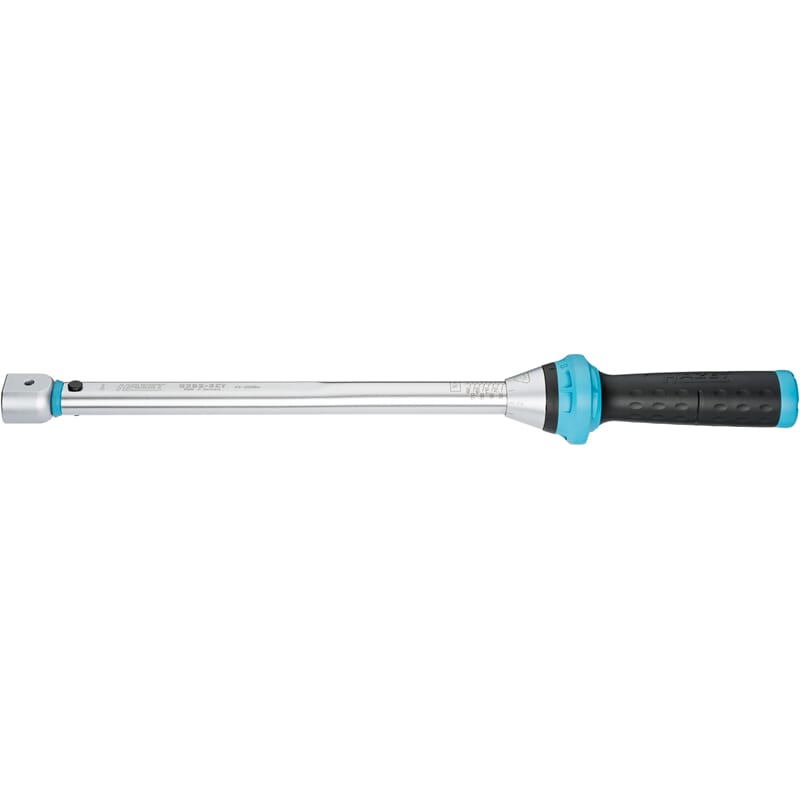

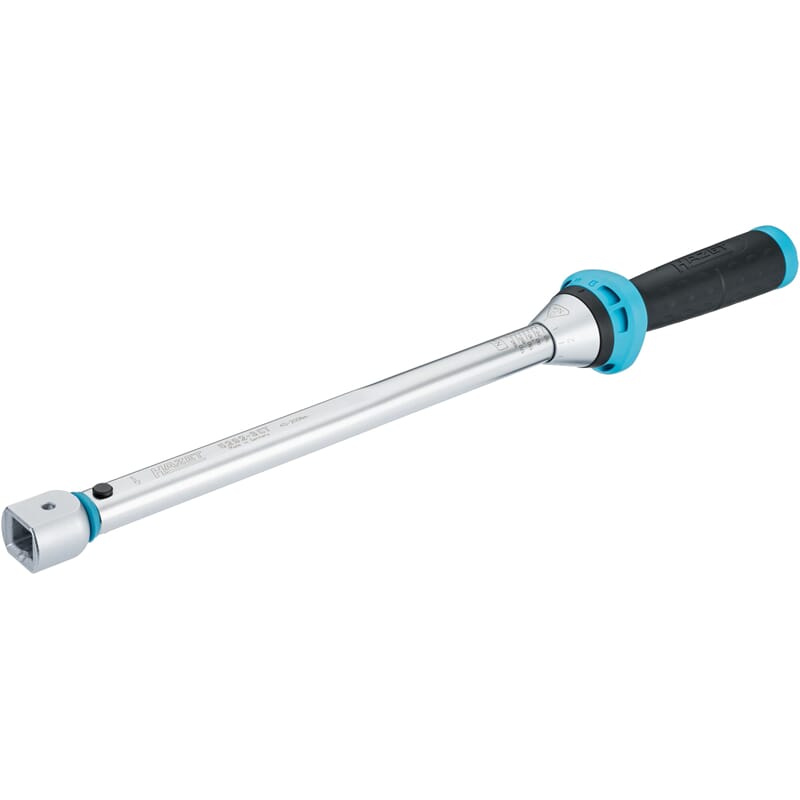

Hazet 5292-3CTCAL Torque wrench 14 x 18 40-200 Nm
Product number:
1986060
Manufacturer no.:
5292-3CTCAL
EAN:
4000896243235
Weight in kg:
1.149
Product information "Hazet 5292-3CTCAL Torque wrench 14 x 18 40-200 Nm "
Hazet 5292-3CTCAL Torque wrench - Nm min-max: 40-200 Nm - Tolerance: 3% - Insert square 14 x 18 mm
Features:
- Plug-and-socket connection to hold insert tools
- Torque wrench including DAkkS calibration certificate
- Accuracy ± 3% of the scale value(in direction of actuation)
Can be used for right-hand and left-hand threads by turning the insert tool - Safety:Haptic (close-gap release)
- Audible (-click- sound)
- Designed for rough workshop use

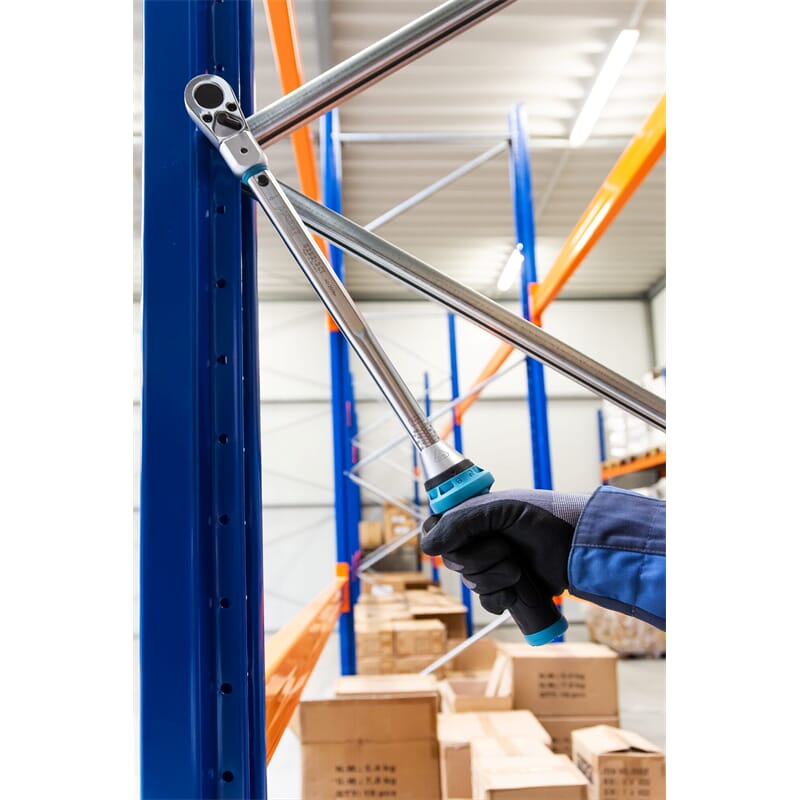

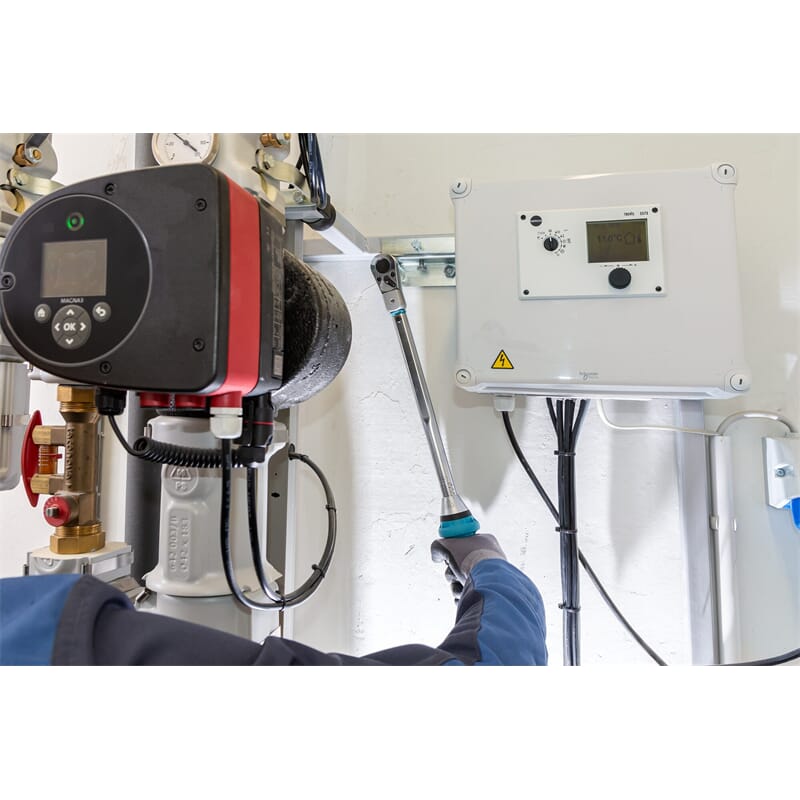

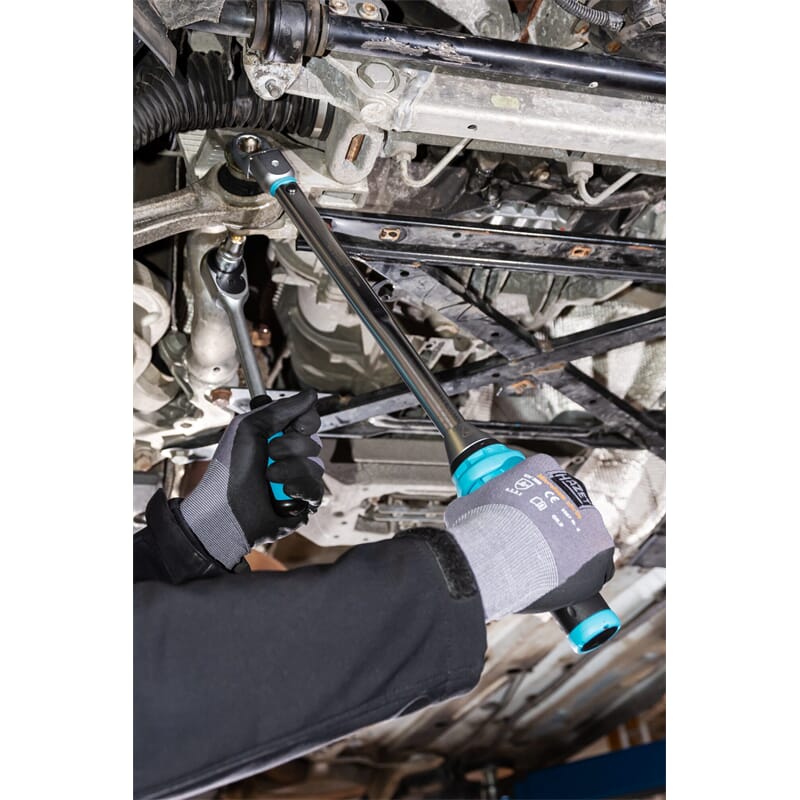

- Wide range of applications for controlled screw tightening in tyre service, bicycle, passenger car and commercial vehicle applications as well as various applications in trade and industry
- Optimised sealing ring to protect against debris
- Handle with better grip for easier power transmission
- Adjustment aid with detent points for optimised operator guidance ensures safe and fast adjustment of the desired torque value by turning the handle
- Safe locking of the setting values by latching function on the rotary assembly
- Rotary assembly in triangular form prevents uncontrolled rolling
- Lock symbols indicate the respective locking status
- Can be attached to the cable loop through openings on the locking rotary assembly
- Easy-to-read, high-contrast scale
- Permanent readability due to laser marking on the scale bush
- With calibration certificate and serial number
- Delivery in sturdy Hexa plastic box
- DIN EN ISO 6789-2:2017
- Made in Germany
- Output: Insert square 14 x 18 mm
- Dimensions / length: 484 mm
- Nm min-max: 40---200 Nm
- Tolerance: 3 %
- Scale Graduation (Nm): 1 Nm
- Effective torque wrench length min.-max. I1 mm: 460.00---437.44 Nm
- Actuating force min.-max. kg: 8.9---46.6 kg
- Inside micrometre of the adjusting tool l2: 38.5 mm
- Head Thickness a: 23 mm
- Head Width b: 30 mm
- No more turning back: Continuous long-term tests on the 5000 series and 6000 series of HAZET torque wrenches have demonstrated that turning them back to the smallest scale value is not required
Technical features:
- Weight: 1149 g
- Hazet part number: 5292-3CTCAL
- EAN: 4000896243235
