Stahlwille 11200/4 Puller 2armed 200x150mm Arm Puller
€204.95
/ 4
Delivery time 4 working days
Variante
Product number:
1989571
Manufacturer no.:
71020004
EAN:
4018754341917
Weight in kg:
3.46
Product information "Stahlwille 11200/4 Puller 2armed 200x150mm Arm Puller"

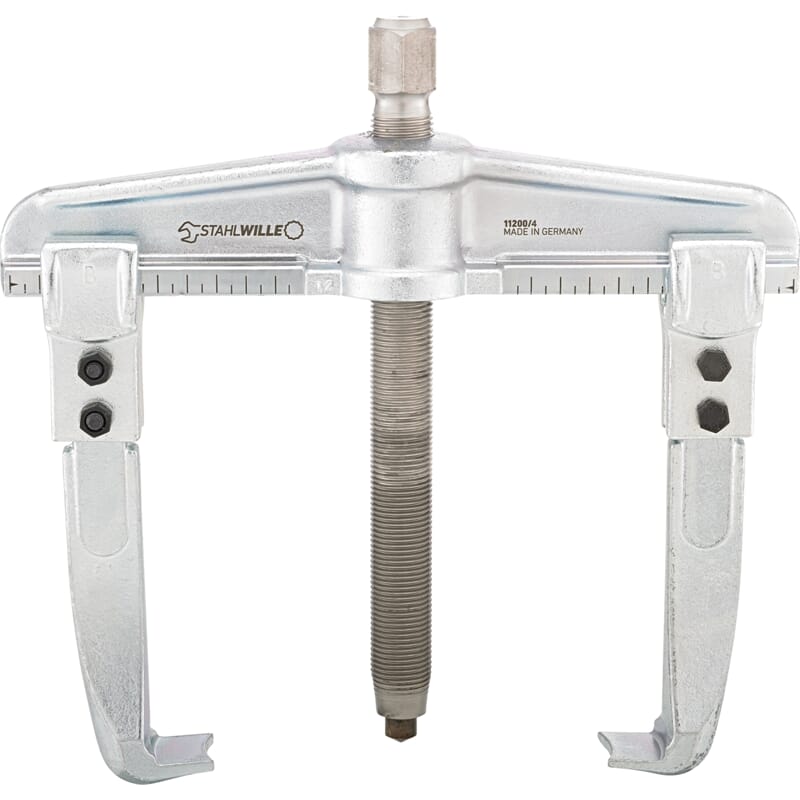

Stahlwille 11200/4 Puller 2armed 200x150mm
Features:
- two-armed
- with sliding, always parallel puller hooks
- for pulling gears, ball bearings, pulleys and similar parts from a shaft or axle
- for extracting ball bearings, ball bearing outer rings and bushings from bores
- reversible hooks for use as external and internal pullers
- adjustment scale for even adjustment of the puller hooks
- nitrided spindle, no oiling required, maintenance-free
- strong design, galvanised

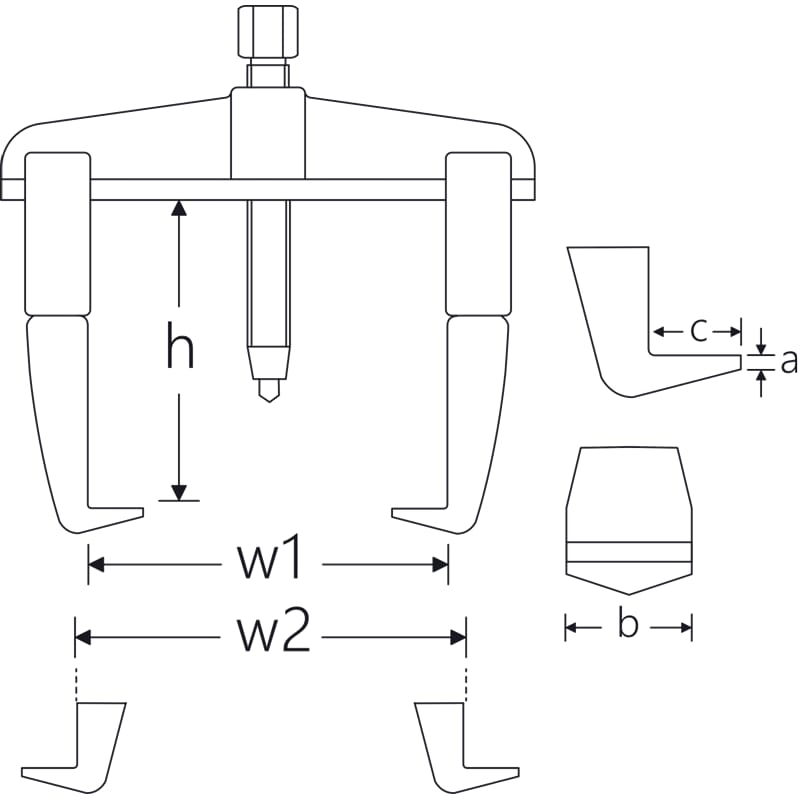

Technical features:
- External hex drive (mm): 22 mm
- Thickness of hook base tip mm (a): 4 mm
- Hook base width mm (b): 30 mm
- Hook base depth mm (c): 18 mm
- Size: 4
- Number of hooks: 2
- max. load: 5 t
- Clamping depth (h) mm: 150 mm
- Spindle thread size: G 1/2 x 210
- External span max. mm (w1): 200 mm
- Internal span min. mm: 90 mm
- Internal span max. mm (w2): 260 mm
- Weight: 3322 g
- Weigth kg: 3.46 kg
Stahlwille 11200/4
Stahlwille product no: 71020004
EAN: 4018754341917
