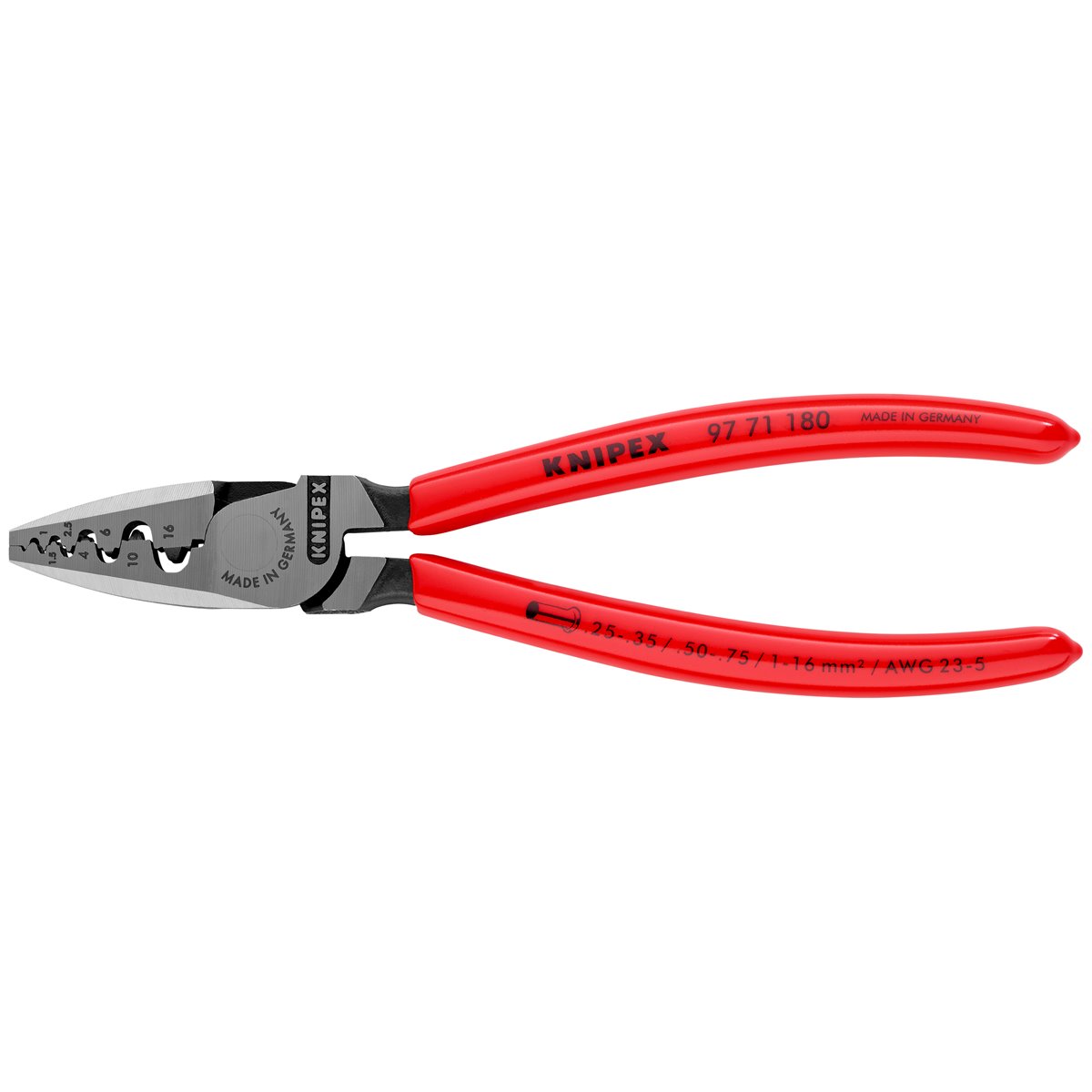

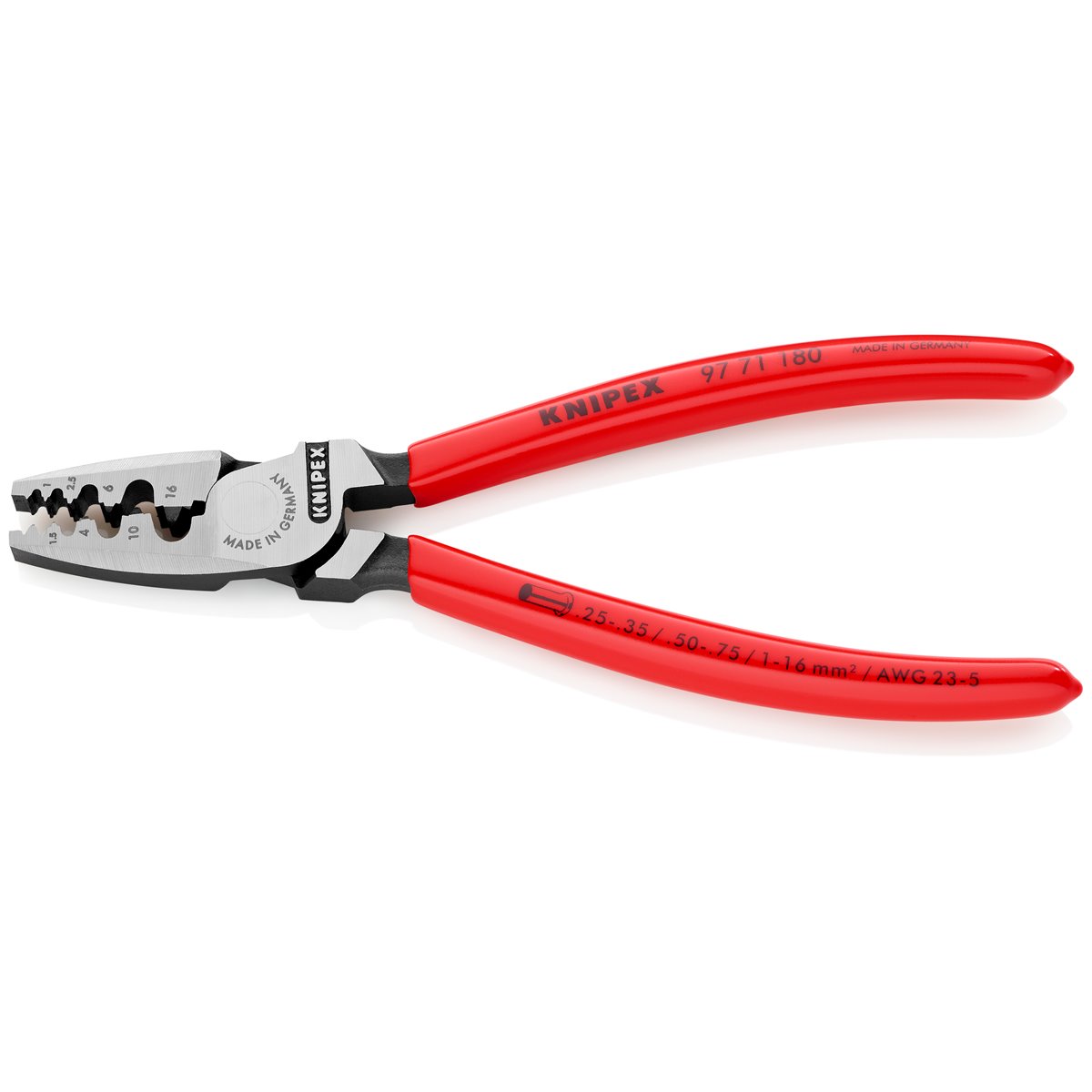

Knipex 97 71 180 Crimping Pliers for end sleeves (ferrules) plastic coated 180 mm
Product number:
1846445
Manufacturer no.:
9771180
EAN:
4003773040668
Weight in kg:
0.214
Product information "Knipex 97 71 180 Crimping Pliers for end sleeves (ferrules) plastic coated 180 mm"
Knipex 97 71 180 Crimping Pliers for end sleeves (ferrules) plastic coated 180 mm
- For crimping end sleeves (ferrules) according DIN 46228 parts 1 + 4 from 0.25 to 16 mm²
- Crimping in marked half-round dies for reliable connections between the sleeve and the conductor
- 9 particularly deep dies with conical side faces
- Special tool steel, forged, oil-hardened
Technical data:
- Head: polished
- Handles: plastic coated
- Applications: End Sleeves (ferrules)
- Capacity: 0,25 - 16,0 mm²
- AWG: 23 - 5
- Number of crimping positions: 9
- Length: 180 mm
