BGS 7737 External / internal Puller, 2-arm, 40 - 1 45 mm / 70 - 170 mm
Product number:
1914817
Manufacturer no.:
7737
EAN:
4026947077376
Weight in kg:
1.78
Product information "BGS 7737 External / internal Puller, 2-arm, 40 - 1 45 mm / 70 - 170 mm"
BGS 7737 External / internal Puller, 2-arm, 40 - 145 mm / 70 - 170 mm
Features:
- BGS 7737 External / internal Puller, 2-arm, 40 - 145 mm / 70 - 170 mm
- suitable as inside and outside puller
- Clamping range as inside puller 40 - 145 mm
- Clamping range as external puller 70 - 170 mm
- slotted puller arm also suitable for small sleeves, bearing, gears, pulleys etc.
- structured puller arm for better grip
- good centering by cone-shaped pressure piece
- incl. flat pressure piece
- spindle drive is possible via internal square 1/2", external hexagon 21 mm or rod
- spindle made of carbon steel
Technical features:
- Max. clamping width inside puller: 145 mm
- Drive profile 1, inch: 1/2 "
- Drive profile size 1, metric: 12,5 mm
- Hooked footh: 14 mm
- Drive profile 1: Internal square
- Wrench size 1: 12,5 mm (1/2") | Gleitgriff
- Gross weight: 1780 g
- Min. clamping width inside puller: 40 mm
- Max. clamping width: 145 mm
- Hex drive size: 21 mm
- Hook foot thickness at the top: 6,5 mm
- Max. clamping width outside puller: 170 mm
- Hook foot opening: 8 mm
- Hook length: 31,5 mm
- Min. clamping width outside puller: 70 mm
- Clamping depth: 100 mm
- Drive profile 2: External hexagon
- Spindle length: 155 mm
- Min. clamping width: 40 mm
- Drive: Slinding Handle
- EAN: 4026947077376
Product Safety and Downloads
Documents and datasheets
Product safety information
Manufacturer
BGS technic KG
Bandwirkerstraße 3
42929 Wermelskirchen
Germany
mail@bgs-technic.de

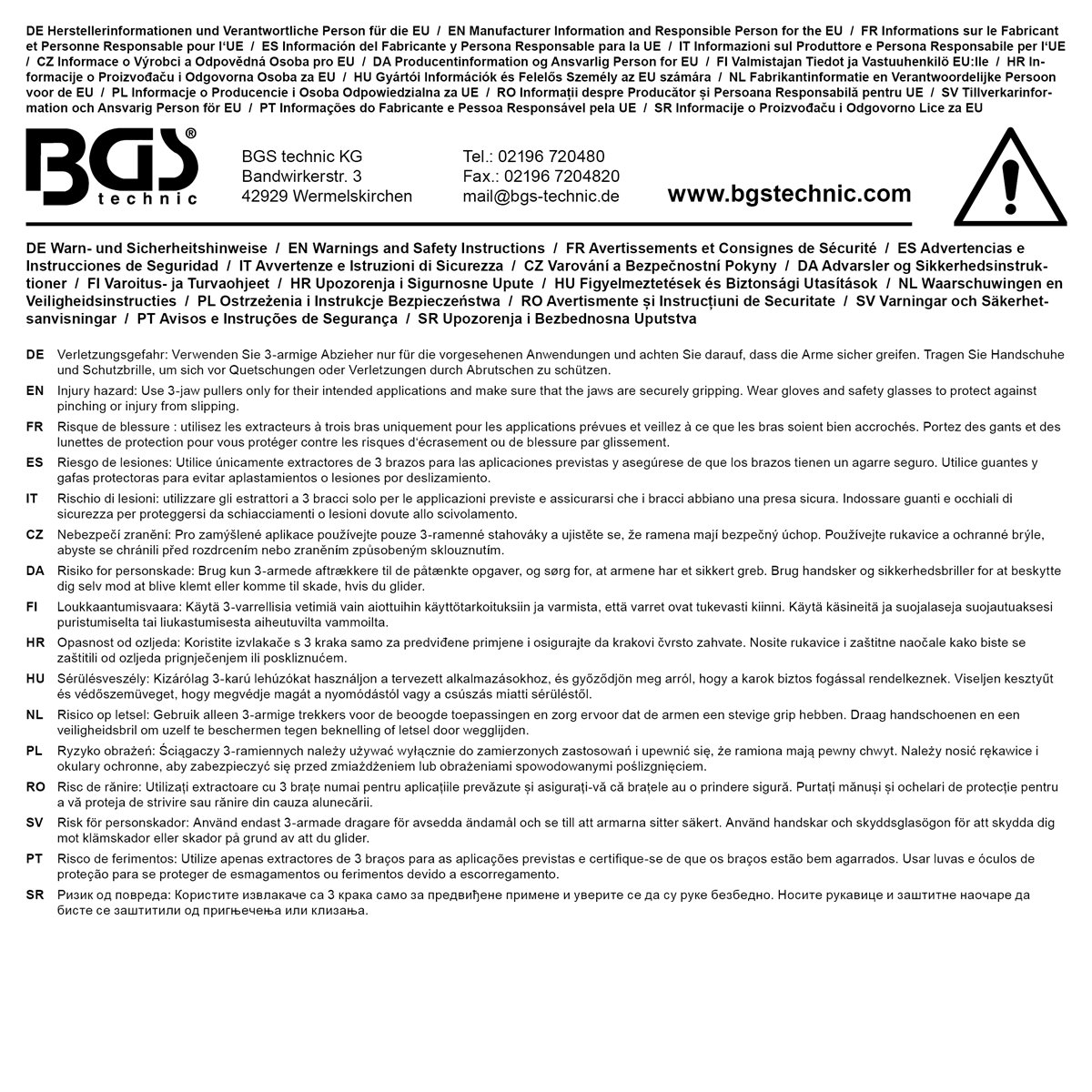

Safety information
- Warnings and Safety Instructions
