BGS 7753 Splitting Knife Set for Ball Bearing Asse mblies, 6 pcs.
Product number:
1913028
Manufacturer no.:
7753
EAN:
4026947077536
Weight in kg:
7.5
Product information "BGS 7753 Splitting Knife Set for Ball Bearing Asse mblies, 6 pcs."
BGS 7753 Splitting Knife Set for Ball Bearing Assemblies, 6 pcs.
Features:
- BGS 7753 Splitting Knife Set for Ball Bearing Assemblies, 6 pcs.
- total length of central bolt is 290 mm
- see BGS 7742 for separate splitting knife
- clamping width (A) min. / max. in mm: min. 13 mm / max. 70 mm
- puller bolt receiving thread (B): 1/2" x 13 UNC
- clamping bolt distance (C) in mm: 113 mm
- camping bolt thread (D): 1/2" x 13 UNC
- puller bolt distance (E) min. / max. in mm: min. 90 mm / max. 147 mm
- clamping bolt length (F): 166 mm
- splitting knife base (G) min. / max. in mm: min. 57 mm / max. 114 mm
Technical features:
- Gross weight: 7500 g
- EAN: 4026947077536
Product Safety and Downloads
Documents and datasheets
Product safety information
Manufacturer
BGS technic KG
Bandwirkerstraße 3
42929 Wermelskirchen
Germany
mail@bgs-technic.de

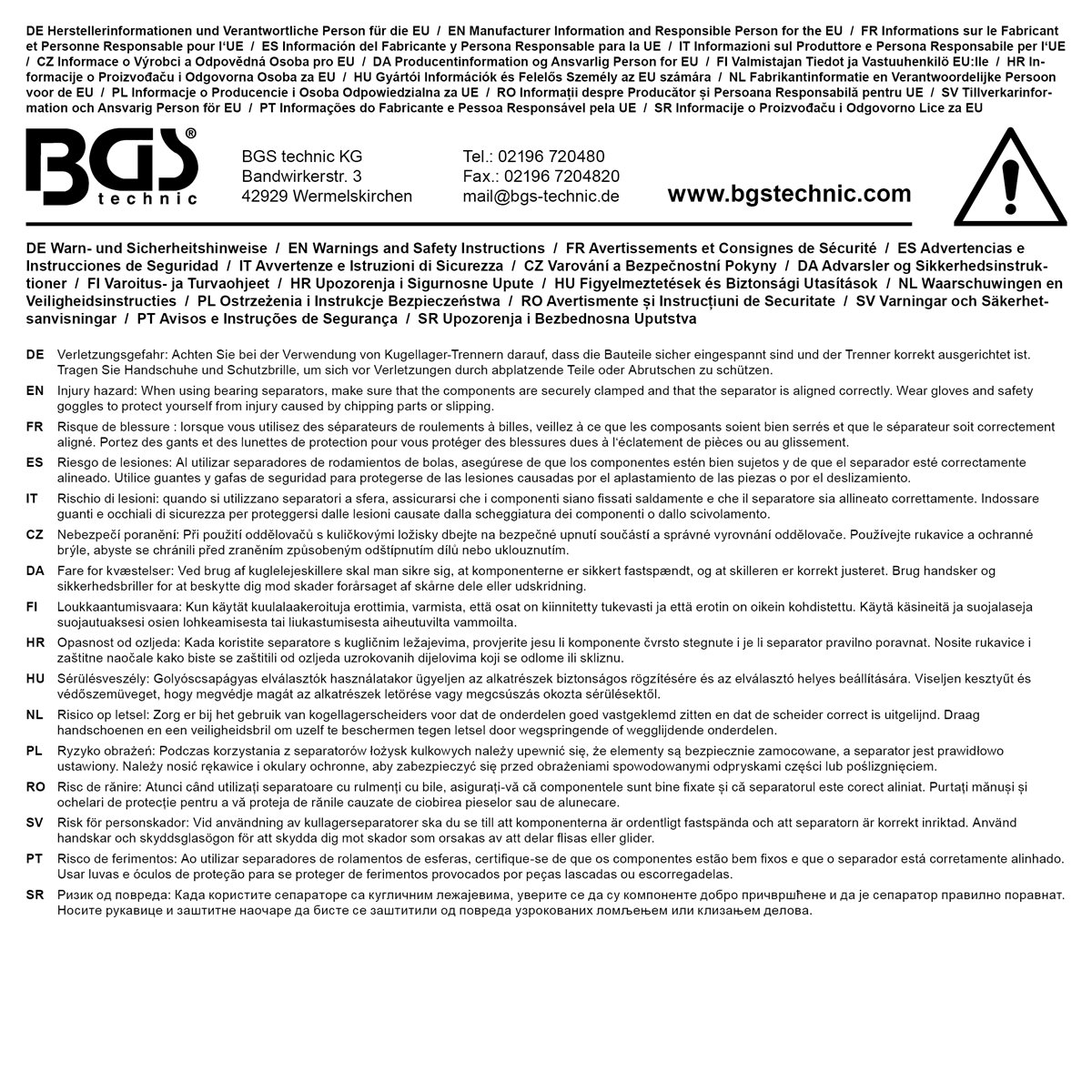

Safety information
- Warnings and Safety Instructions
