BGS 7783 Parallel Puller, fine Thread, 2-legs, 40 - 200 mm
Product number:
1910929
Manufacturer no.:
7783
EAN:
4026947077833
Weight in kg:
3.54
Product information "BGS 7783 Parallel Puller, fine Thread, 2-legs, 40 - 200 mm"
BGS 7783 Parallel Puller, fine Thread, 2-legs, 40 - 200 mm
Features:
- BGS 7783 Parallel Puller, fine Thread, 2-legs, 40 - 200 mm
- forged
- mechanic puller with standard hooks
- parallel puller hooks in every working position, can be used for inside and outside pulling via detachable and adjustable puller hooks
Technical features:
- Spindle thread: M20 x 2,0
- Min. clamping width: 40 mm
- Spindle length: 220 mm
- Gross weight: 3540 g
- Hex drive size: 22 mm
- Material: Special steel
- Clamping depth: 150 mm
- Hooked footh: 21 mm
- Hook length: 45 mm
- Max. clamping width: 200 mm
- Hook foot thickness at the top: 8,5 mm
- EAN: 4026947077833
Product Safety and Downloads
Documents and datasheets
Product safety information
Manufacturer
BGS technic KG
Bandwirkerstraße 3
42929 Wermelskirchen
Germany
mail@bgs-technic.de

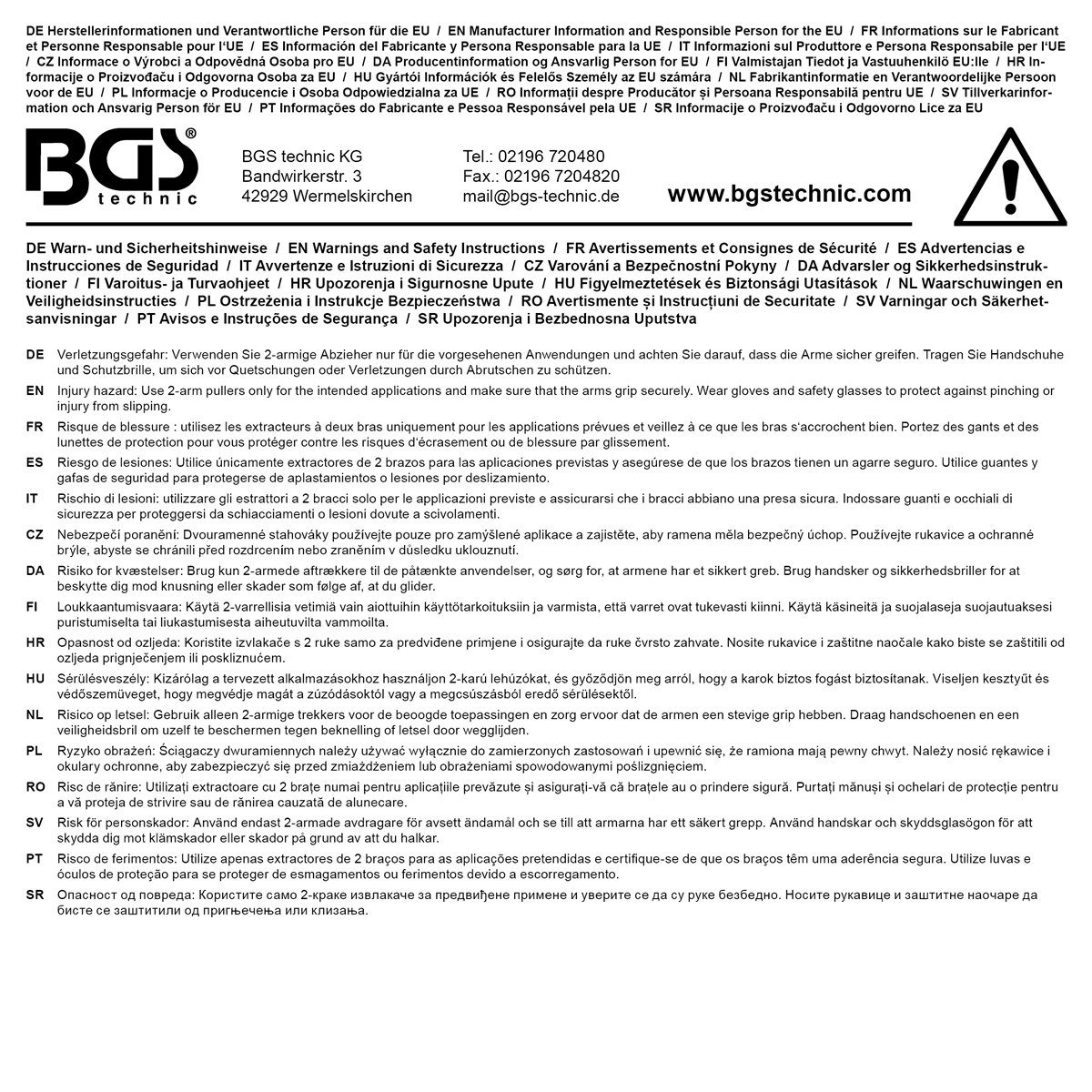

Safety information
- Warnings and Safety Instructions
