BGS 9237 Engine Support with 4-point support, 510 - 845 mm, 315 kg
Product number:
1911468
Manufacturer no.:
9237
EAN:
4048769020040
Weight in kg:
18.55
Product information "BGS 9237 Engine Support with 4-point support, 510 - 845 mm, 315 kg"
BGS 9237 Engine Support with 4-point support, 510 - 845 mm, 315 kg
Features:
- BGS 9237 Engine Support with 4-point support, 510 - 845 mm, 315 kg
- especially suitable for vehicles with auxiliary frame
- prevents undesired twisting and tilting of the engine
- 2 positionable longitudinal beams for support on front panel
- rubber protected front panel support feet
- positionable 2 hook support
- can also be used without longitudinal beams
- including two chains and shackles, length 530 mm
- variable width, up to 1500 mm
- variable length of longitudinal beams 510 - 845 mm
- lifting spindle length 340 mm
- capacity: 315 kg
Technical features:
- Max. width: 1500 mm
- Gross weight: 18550 g
- EAN: 4048769020040
Product Safety and Downloads
Documents and datasheets
Product safety information
Manufacturer
BGS technic KG
Bandwirkerstraße 3
42929 Wermelskirchen
Germany
mail@bgs-technic.de

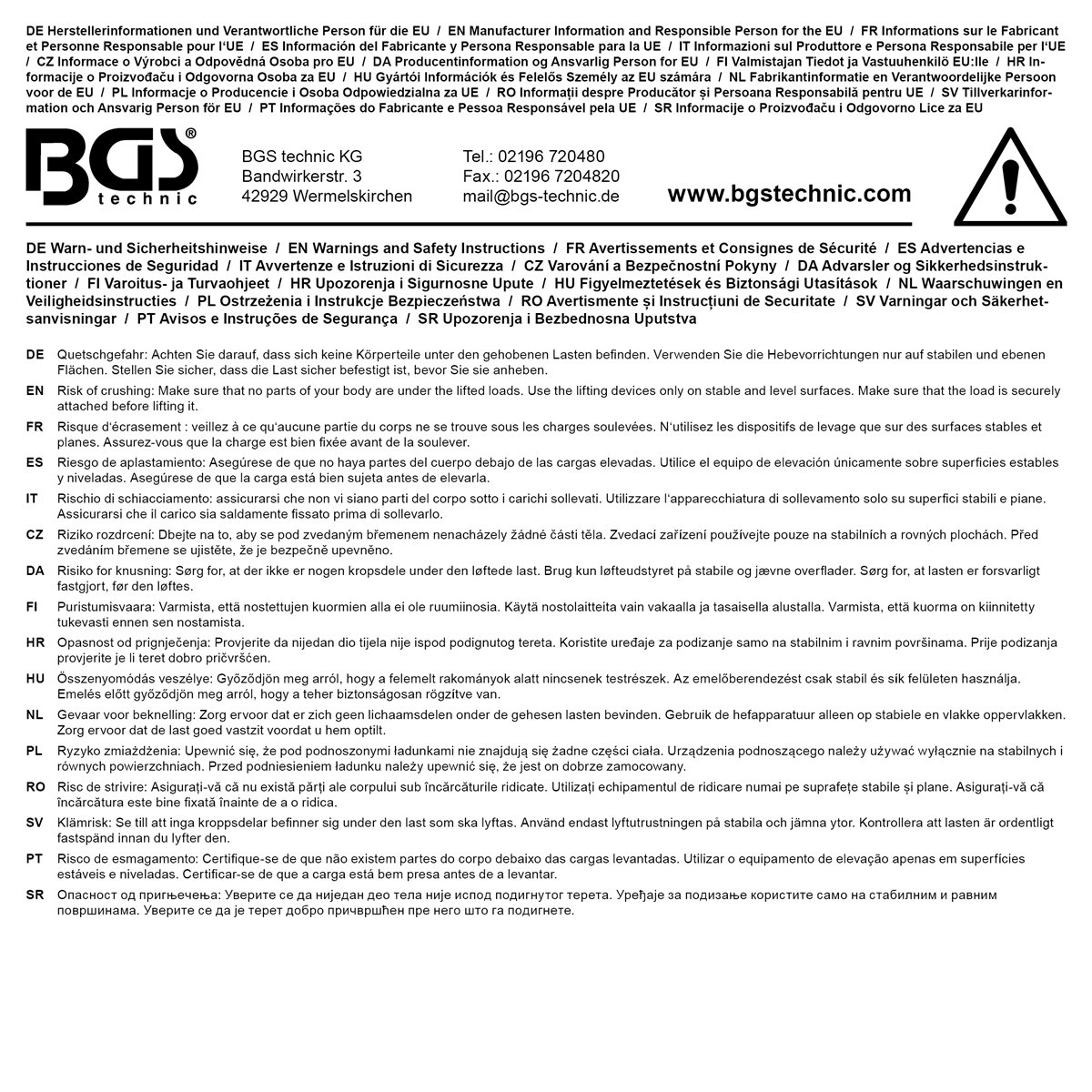

Safety information
- Warnings and Safety Instructions
