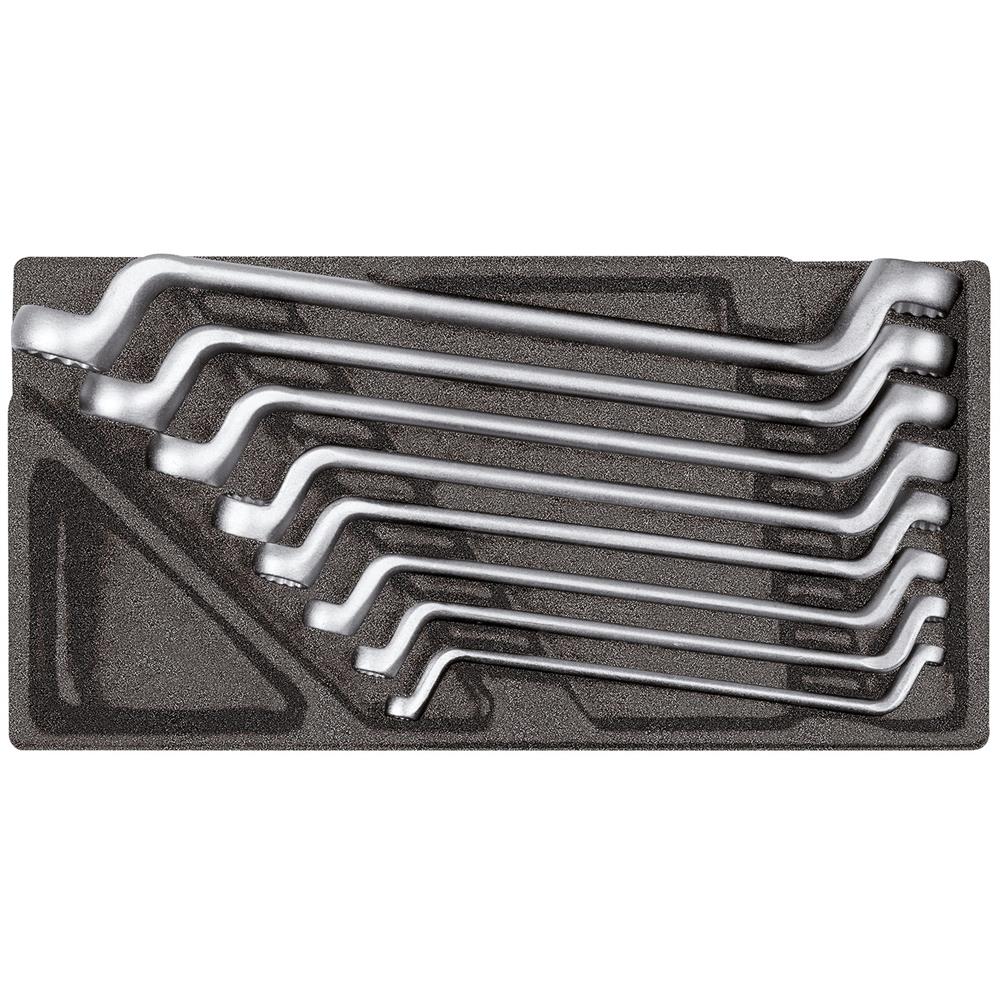

Gedore red R22150000 Double-ended ring spanner set in the 3/3 foam module, 8 pieces   Features: Acc. to DIN 838, ISO 3318, ISO 1085, ISO 10104 5° offset Thin walled rings Chrome-vanadium steel Matt satin chrome-plated finish In the foam module   Contents:  Double-ended ring spanner 6x7 8x9 10x11 12x13 14x15 16x17 18x19 20x22 mm

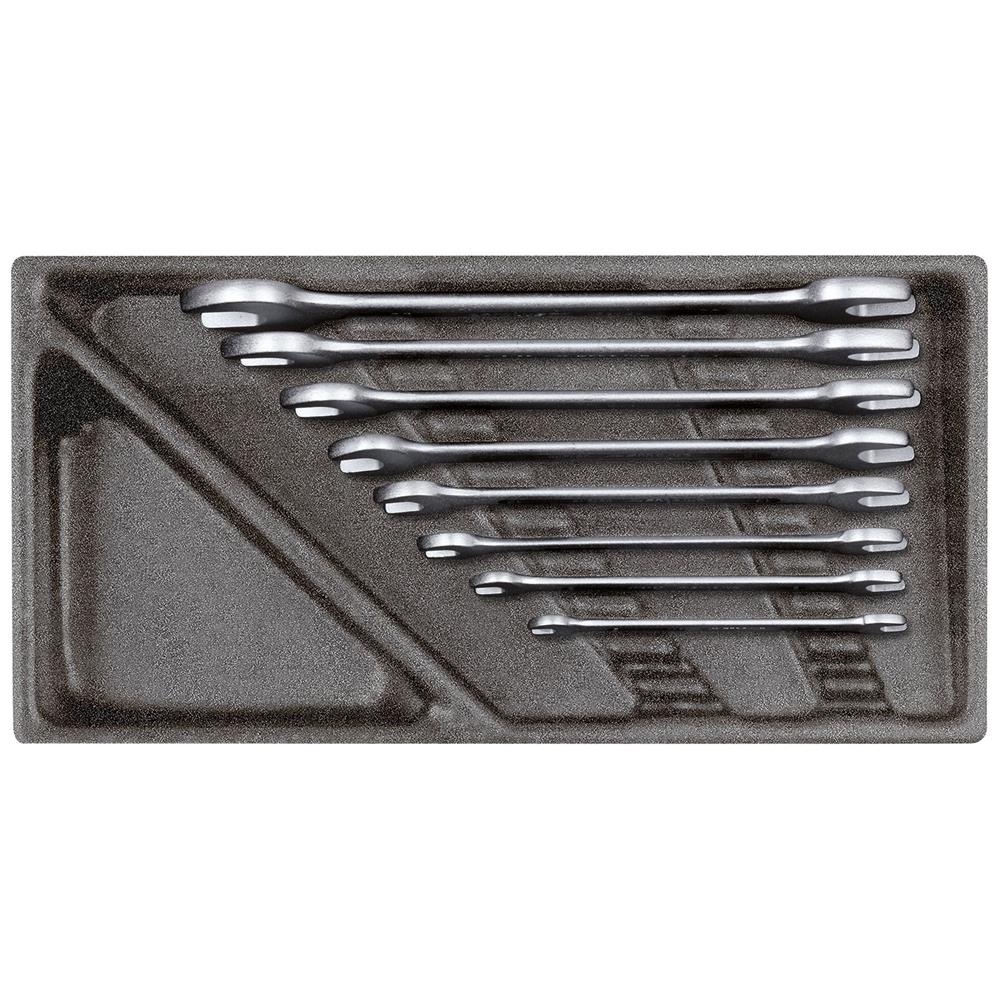

Gedore red R22150001 Double open-ended spanner set in the 3/3 foam module, 8 pieces   Features: Acc. to DIN 3110, ISO 3318, ISO 1085, ISO 10102 Jaw set at 15° Matt satin chrome-plated finish Chrome-vanadium steel In the foam module   Contents: Double open ended spanner 6x7 8x9 10x11 12x13 14x15 16x17 18x19 20x22 mm

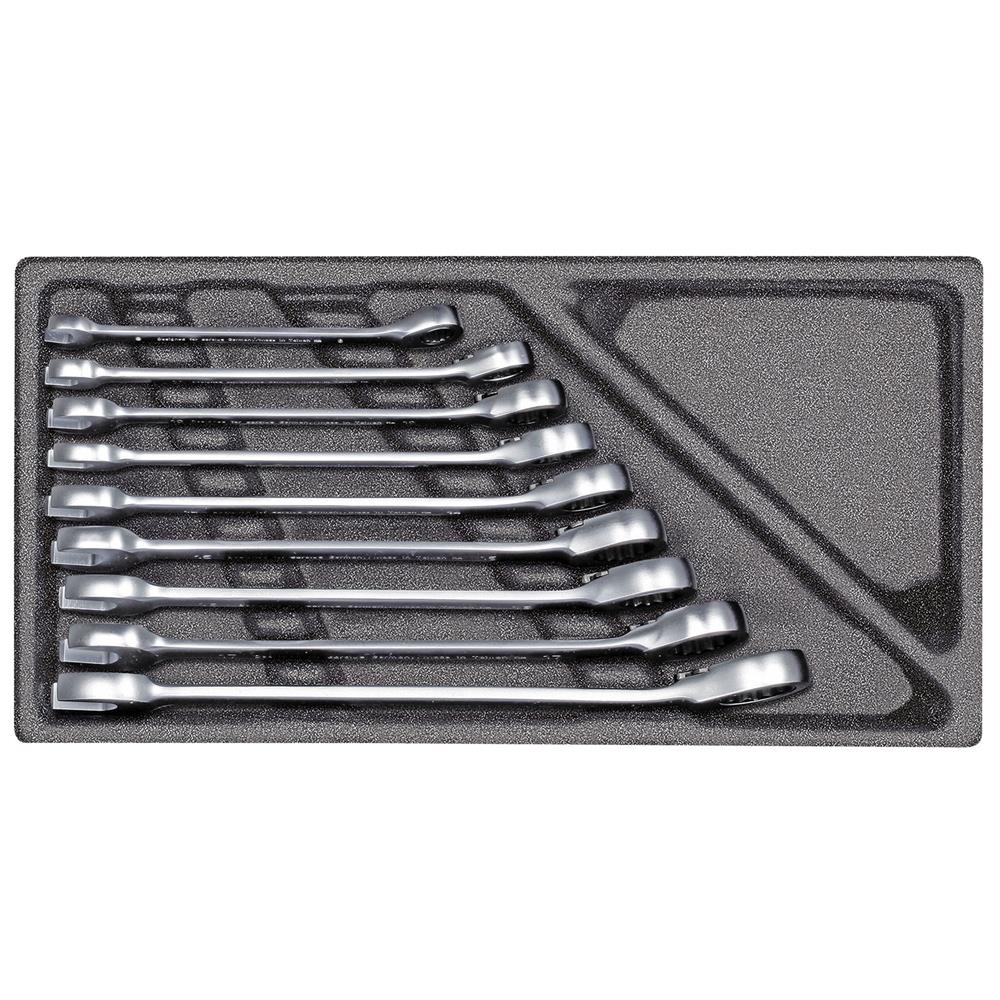

Gedore red R22150002 Ratchet wrench set in the 3/3 foam module, 9 pieces   Features: Based on DIN 3113, ISO 3318 Ring offset to 15°, reversible for right and left hand operation Jaw set at 15° Matt satin chrome-plated finish Chrome-vanadium steel In the foam module   Contents: Ratchet wrench set 8 10 12 13 14 15 16 17 19 mm

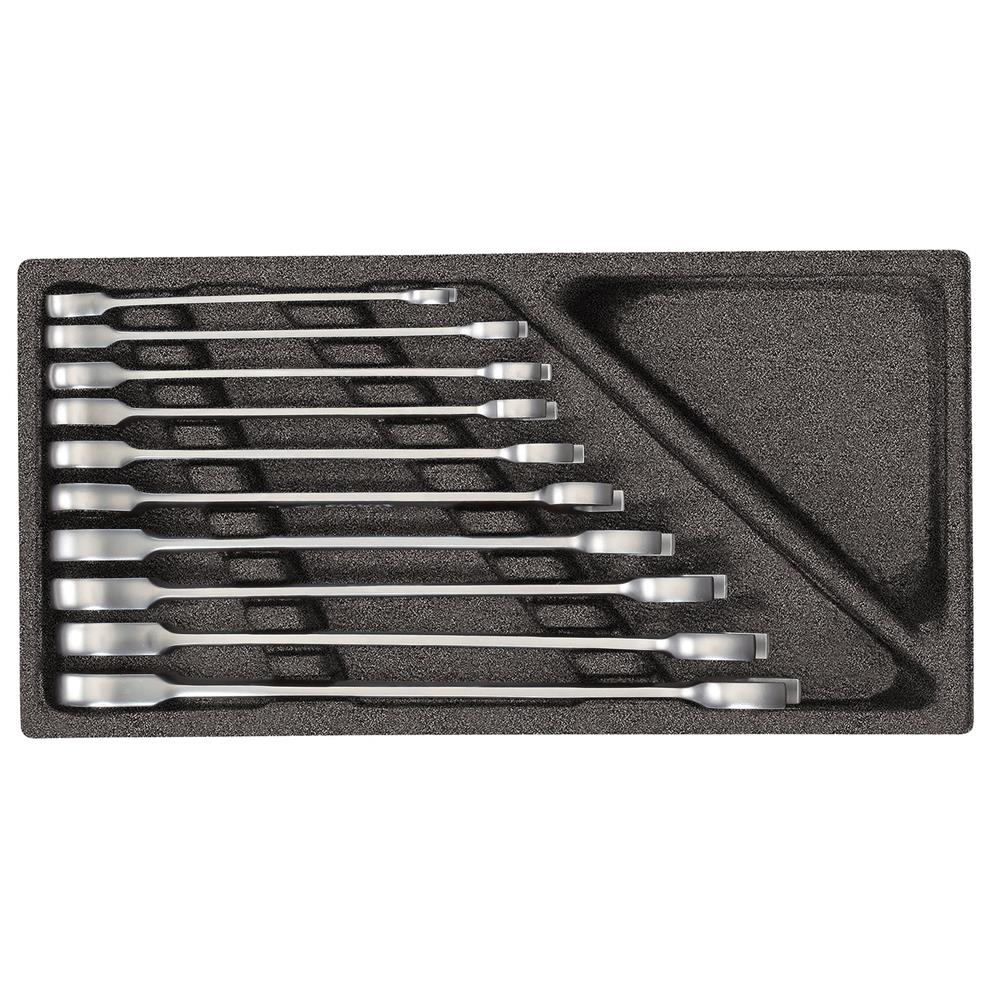

Gedore red R22150003 Ratchet wrench set in the 3/3 foam module, 10 pieces   Features: Based on DIN 3113, ISO 3318 Straight Ratchet mechanism with 72 teeth Working angle: 5° Jaw set at 15° Matt satin chrome-plated finish Chrome-vanadium steel In the foam module   Contents: Ratchet wrench set 8 10 12 13 14 15 16 17 18 19 mm

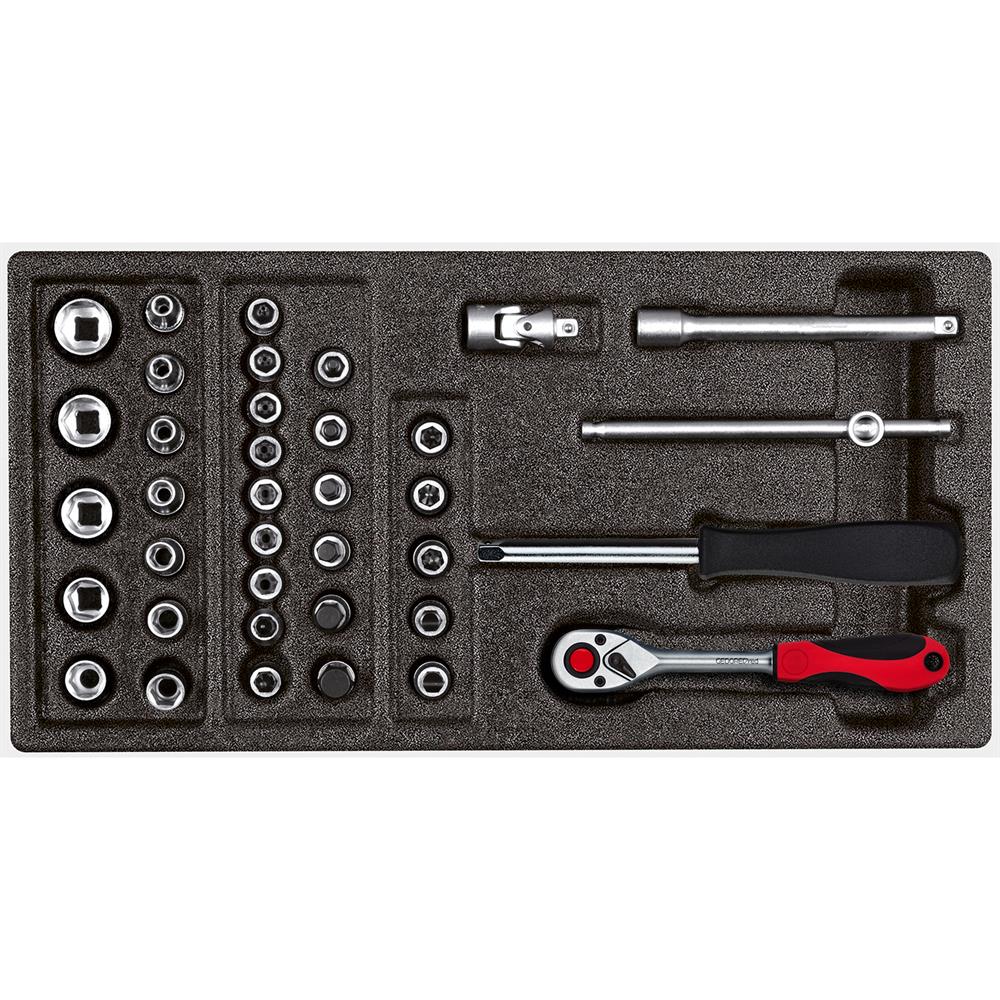

Gedore red R22150006 Socket set 1/4" in the 3/3 foam module, 37 pieces   Features: Coupler based on DIN 3120 - A 6.3, ISO 1174, with ball lock Square drive as per DIN 3120 - C 6.3, ISO 1174, with ball retention groove 2C reversible ratchet 1/4": Lever for reversible right and left hand operation, push button release, fine-toothed, oval head, dual-material handle Square plug-in handle 1/4": 1-component handle with in-hex Socket 1/4" hexagon: Metric, short, to DIN 3124, ISO 2725 Screwdriver bit socket 1/4" for in-hex screws: Pressed-in, phosphated pin Screwdriver bit socket 1/4" slotted: Pressed-in, phosphated pin Screwdriver bit socket 1/4" PZ: Pressed-in, phosphated pin Screwdriver bit socket 1/4" PZ: Pressed-in, phosphated pin Screwdriver bit socket 1/4" TX with drill hole: Pressed-in, phosphated pin Socket extension 1/4": Sliding T-handle with slide 1/4": Acc. to DIN 3122, ISO 3315 Universal joint 1/4": Joint bolted on, design to DIN 3123 - C 6.3 Chrome-vanadium steel, matt satin chrome-plated For hand-operated bolting operations In the foam module   Contents: 1/4” 2C lever reversible ratchet, fine-tooth, 72 teeth | 150 mm 1/4" square plug-in handle 165 mm 1/4” socket hexagon 4 4.5 5 5.5 6 7 8 9 10 11 12 13 1/4" screwdriver bit socket in-hex 3 4 5 6 8 10 | 37 mm 1/4" screwdriver bit socket slotted 5.5 6.5 | 37 mm 1/4" screwdriver bit socket cross-slotted PH 1 2 3 | 37 mm 1/4" screwdriver bit socket cross-head PZ 1 2 | 37 mm 1/4" socket TX with hole T10 T15 T20 T25 T27 T30 T40 | 37 mm 1/4" socket extension 100 mm 1/4" sliding T-handle with slide | 115 mm 1/4" universal joint | 32 mm

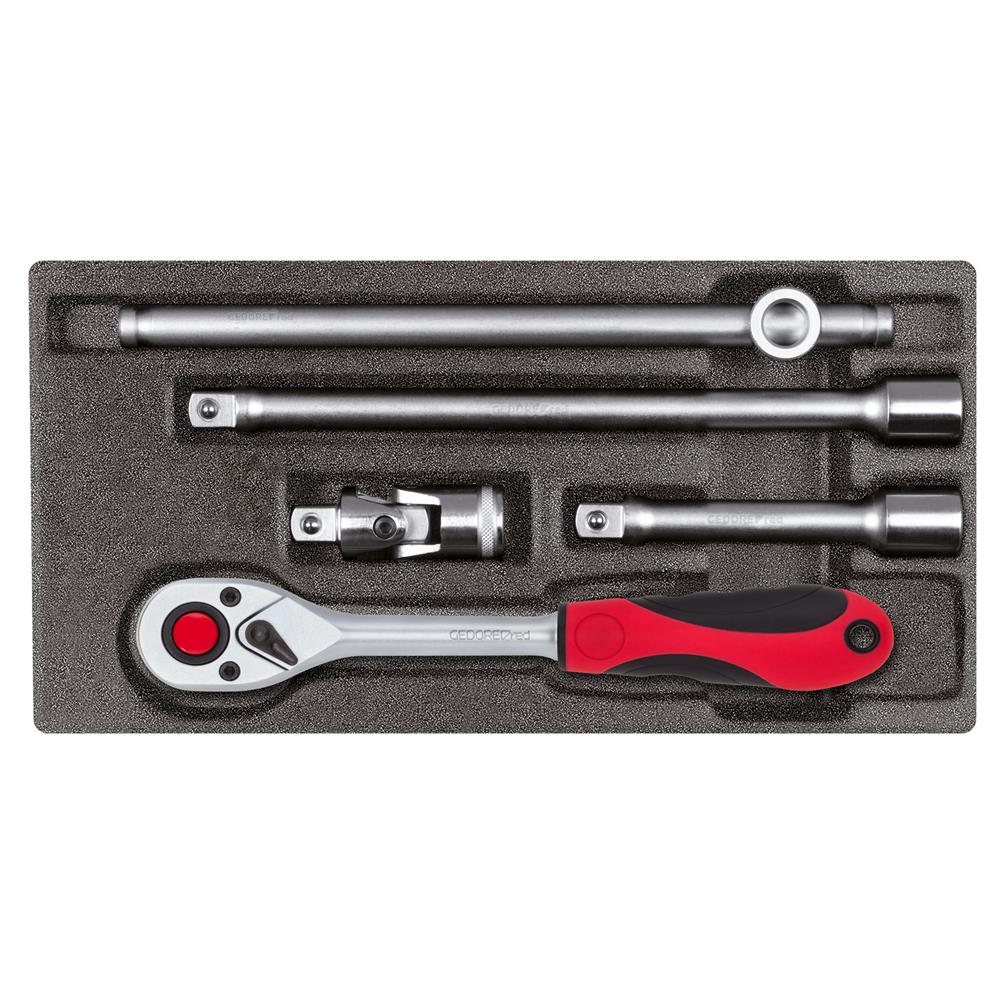

Gedore red R22150008 Ratchet with accessories 1/2'' in the 3/3 foam module, 5 pieces   Features: Coupler in acc. with DIN 3120, ISO 1174, with ball locking device Square drive acc. to DIN 3120, ISO 1174, with ball retention groove 2C reversible ratchet 1/2": To DIN 3120 - A 12.5, ISO 1174, lever for right and left-hand operation, push button release, fine-toothed, oval form, dual-material handle Socket extension 1/2": Universal joint 1/2": Joint bolted on, design to DIN 3123 - C 12.5 Chrome-vanadium steel, matt satin chrome-plated For hand-operated bolting operations In the foam module   Contents: 1/2” 2C lever reversible ratchet, fine-tooth, 72 teeth | 250 mm 1/2" socket extension 125 250 mm 1/2" sliding T bar with slide 250 mm 1/2" universal joint | 66 mm

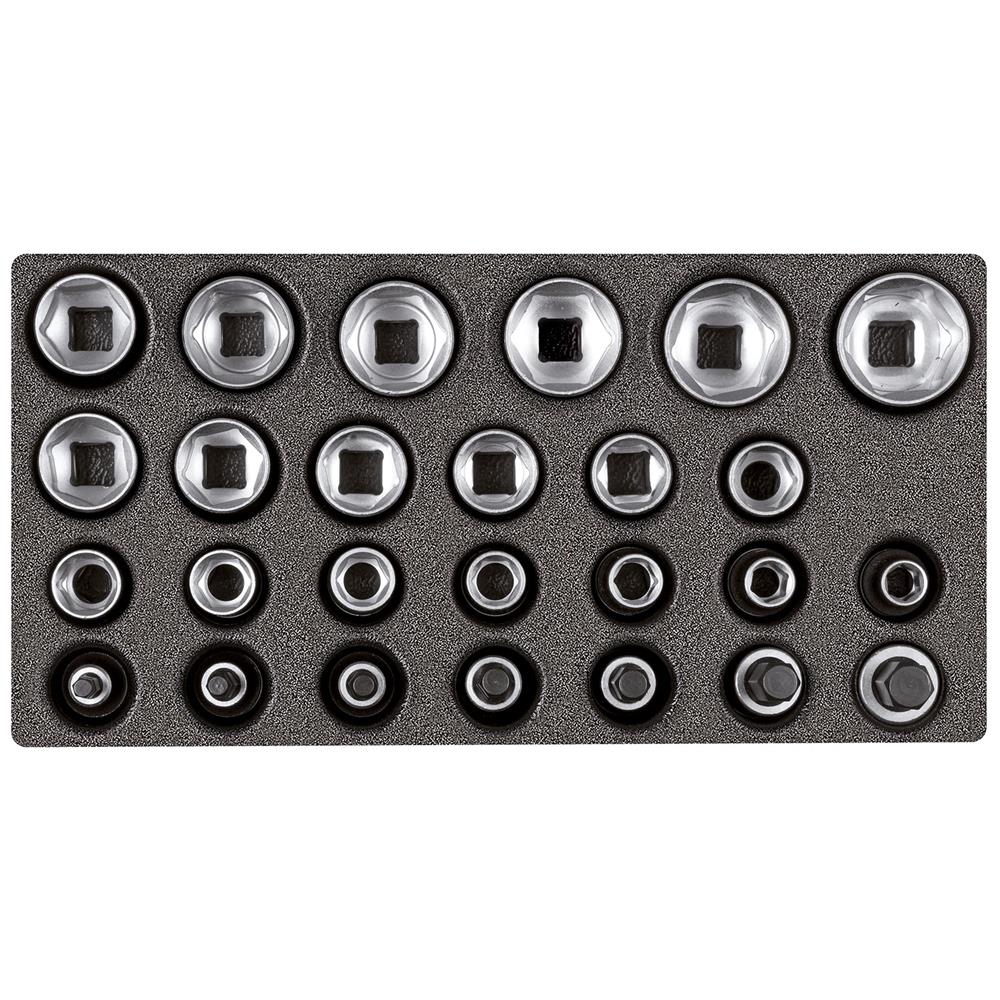

Gedore red R22150009 Socket set 1/2" in the 3/3 foam module, 26 pieces   Features: Square drive acc. to DIN 3120, ISO 1174, with ball retention groove Socket, hex: Metric, short, to DIN 3124, ISO 2725 Screwdriver bit socket 1/2" for in-hex screws: Pressed-in, phosphated pin Chrome-vanadium steel, matt satin chrome-plated For hand-operated bolting operations In the foam module   Contents: 1/2” socket hexagon 10 11 12 13 14 15 16 17 18 19 21 22 23 24 26 27 28 30 32 1/2” screwdriver bit socket in-hex 6 7 8 9 10 12 14 | 55 mm

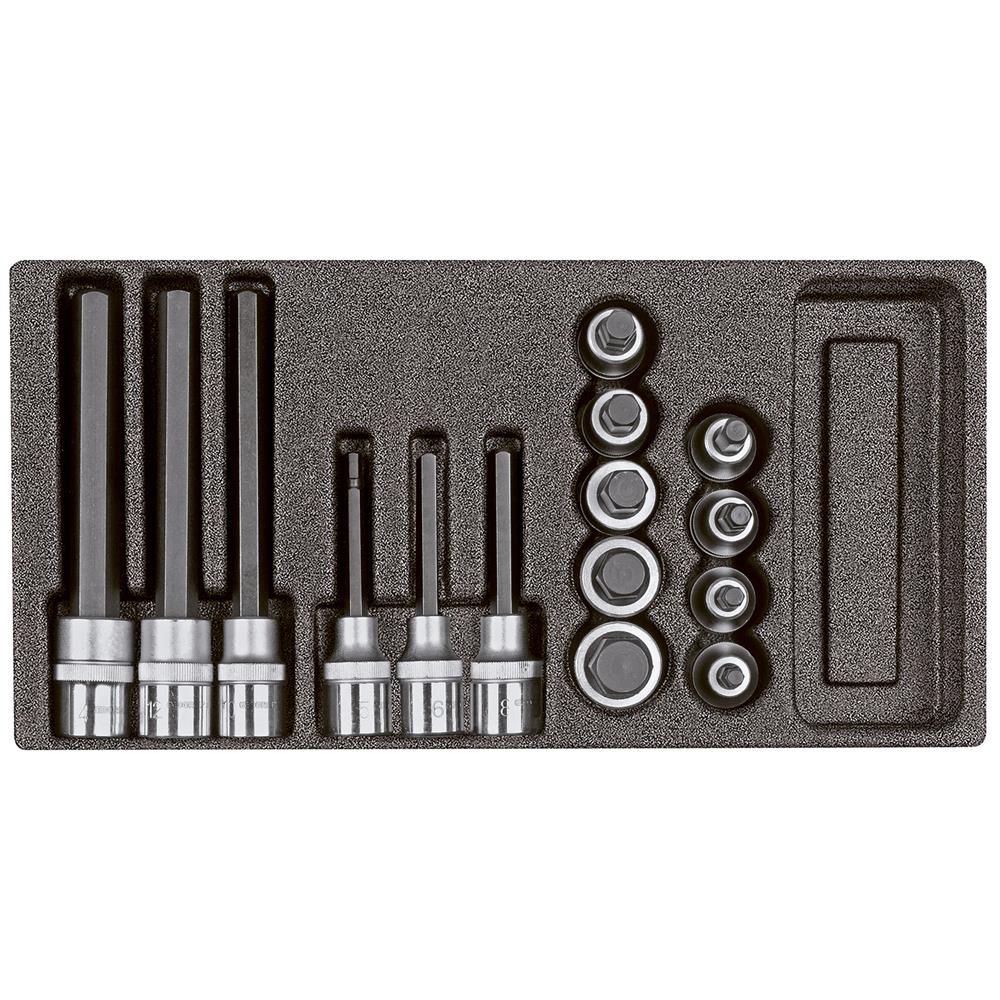

Gedore red R22150011 Screwdriver bit socket set 1/2" in the 3/3 foam module, 15 pieces   Features: Square drive acc. to DIN 3120, ISO 1174, with ball retention groove Screwdriver bit socket 1/2" for in-hex screws: Pressed-in, phosphated pin Chrome-vanadium steel, matt satin chrome-plated For hand-operated bolting operations In the foam module   Contents: Screwdriver bit socket in-hex, 5 6 7 8 9 10 12 14 17 | 55 mm Screwdriver bit socket in-hex, 5 6 8 | 80 mm Screwdriver bit socket in-hex, 10 12 14 | 140 mm

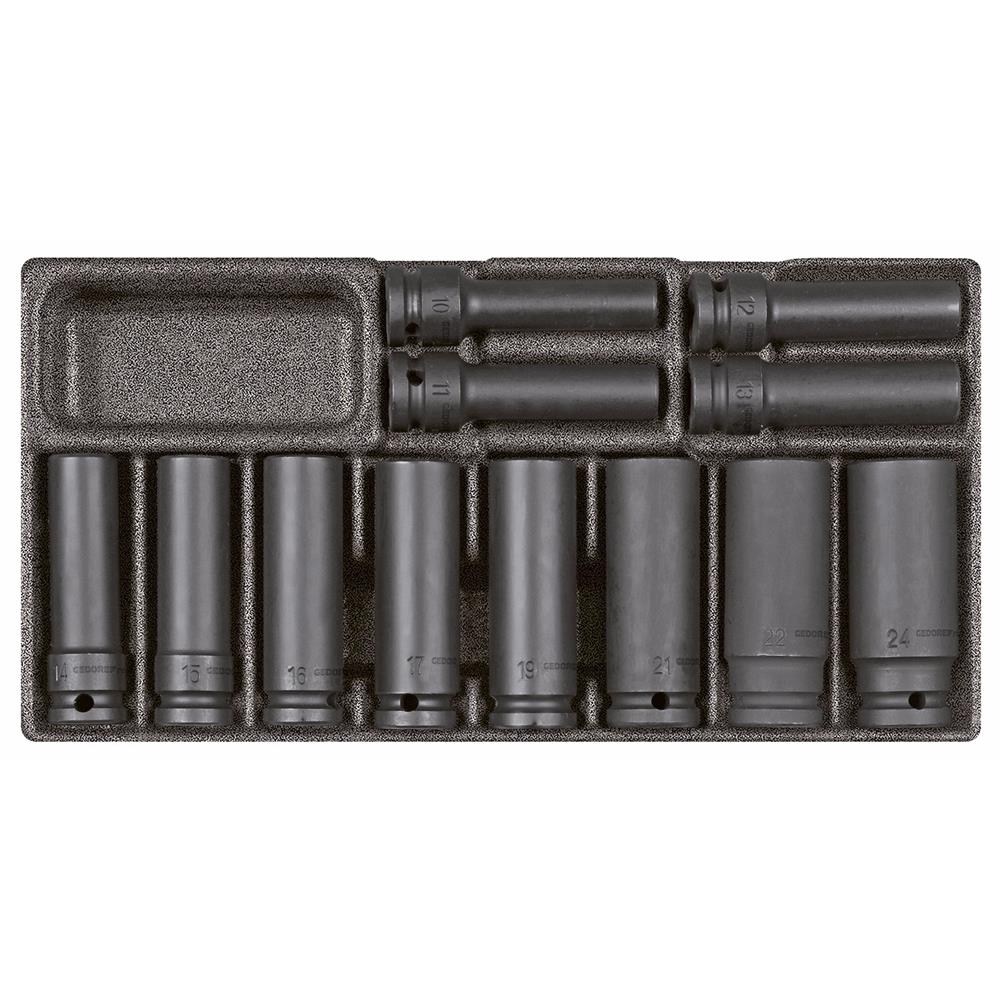

Gedore red R22150012 Impact socket set 1/2" in the 3/3 foam module, 14 pieces   Features: Square drive as per DIN 3121 - G 12.5, ISO 1174 Acc. to DIN 3129, ISO 2725-2 Machine-operated, fixing with safety ring / pin Surface phosphated Chrome-molybdenum steel In the foam module Contents: Impact socket 10 11 12 13 14 15 16 17 19 21 22 24 mm Safety ring and pin (1 each)

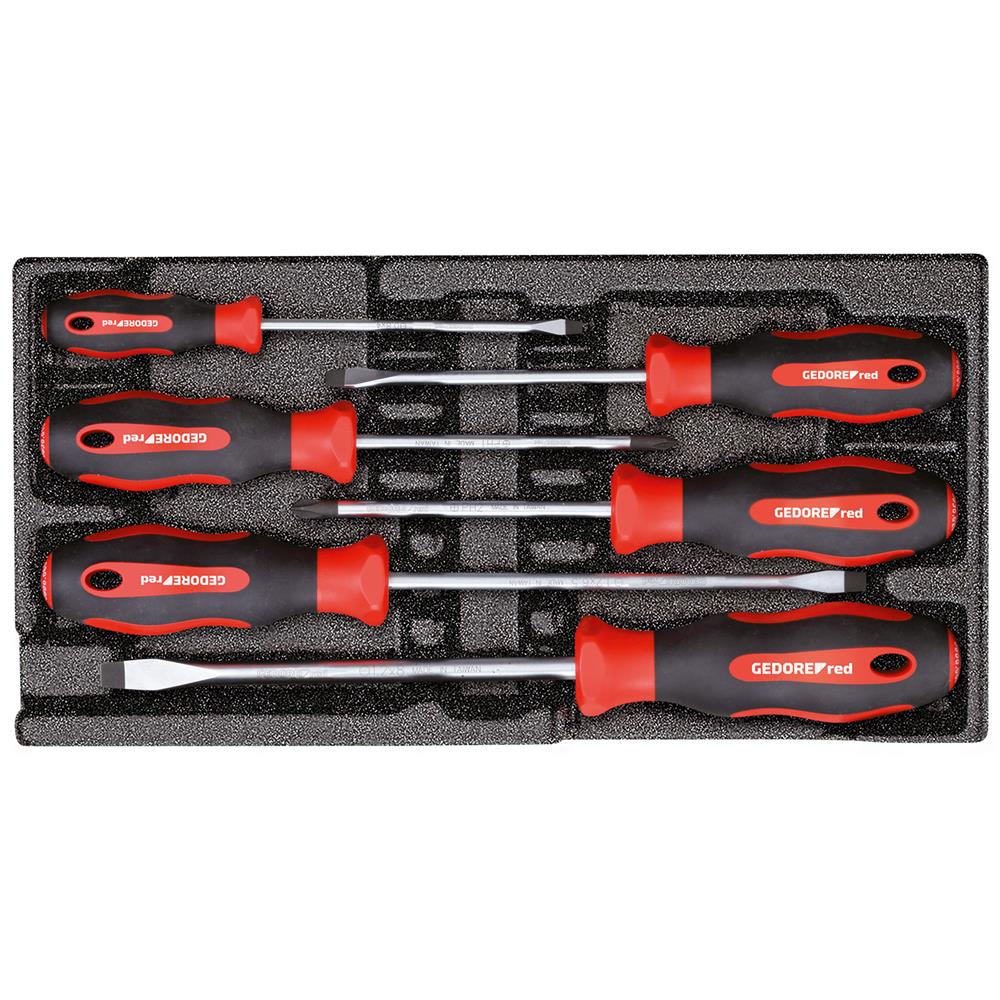

Gedore red R22150013 Screwdriver set in the 3/3 foam module, 6 pieces   Features: Blades of high-grade chrome-molybdenum steel, chrome-plated Driven tips phosphated, corrosion-protected and low-wear Moulded handles form a firm unit with the blades 2 dual-material handles for a hands-friendly transfer of force 5-edge handle heads stop them rolling off when put down Elongated holes in the handle for hanging up In the foam module   Contents: Screwdriver slotted 4 5.5 6.5 8 mm Screwdriver cross-slotted PH 1 2

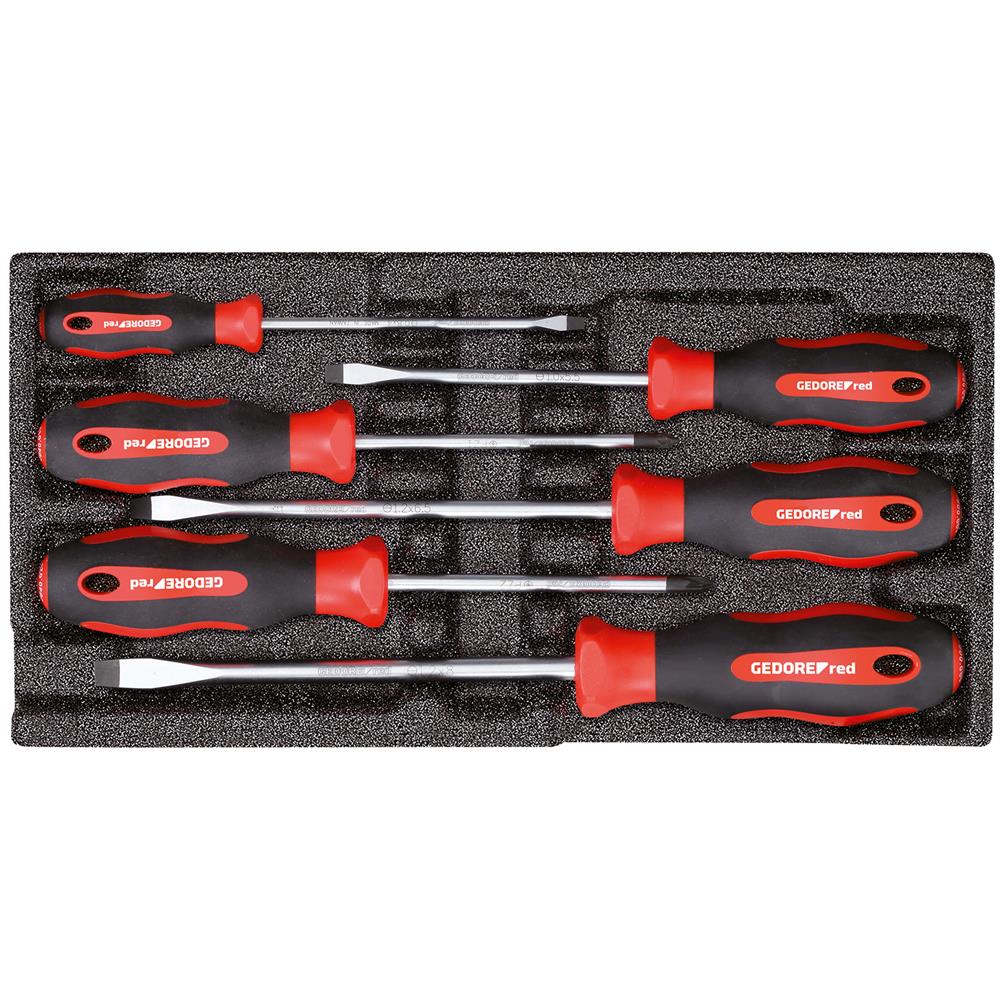

Gedore red R22150014 Screwdriver set in the 3/3 foam module, 6 pieces   Features: Blades of high-grade chrome-molybdenum steel, chrome-plated Driven tips phosphated, corrosion-protected and low-wear Moulded handles form a firm unit with the blades 2 dual-material handles for a hands-friendly transfer of force 5-edge handle heads stop them rolling off when put down Elongated holes in the handle for hanging up In the foam module   Contents: Screwdriver slotted 4 5.5 6.5 8 mm Screwdriver cross-slotted PZ 1 2

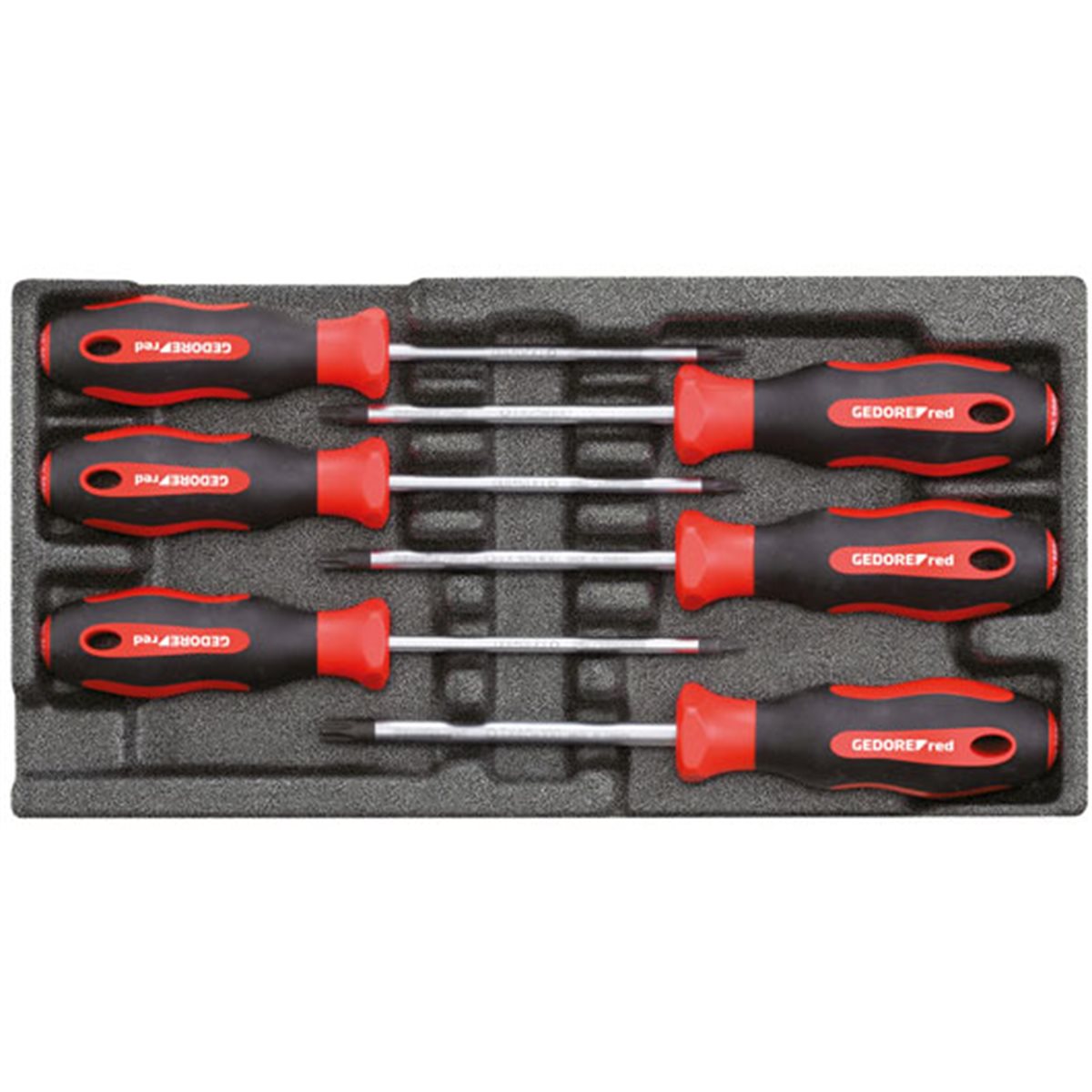

Gedore red R22150015 Screwdriver set TX in the 3/3 foam module, 6 pieces   Features: Blades of high-grade chrome-molybdenum steel, chrome-plated Driven tips phosphated, corrosion-protected and low-wear Moulded handles form a firm unit with the blades 2 dual-material handles for a hands-friendly transfer of force 5-edge handle heads stop them rolling off when put down Elongated holes in the handle for hanging up In the foam module   Contents: Screwdriver TX T10 T15 T20 T25 T30 T40

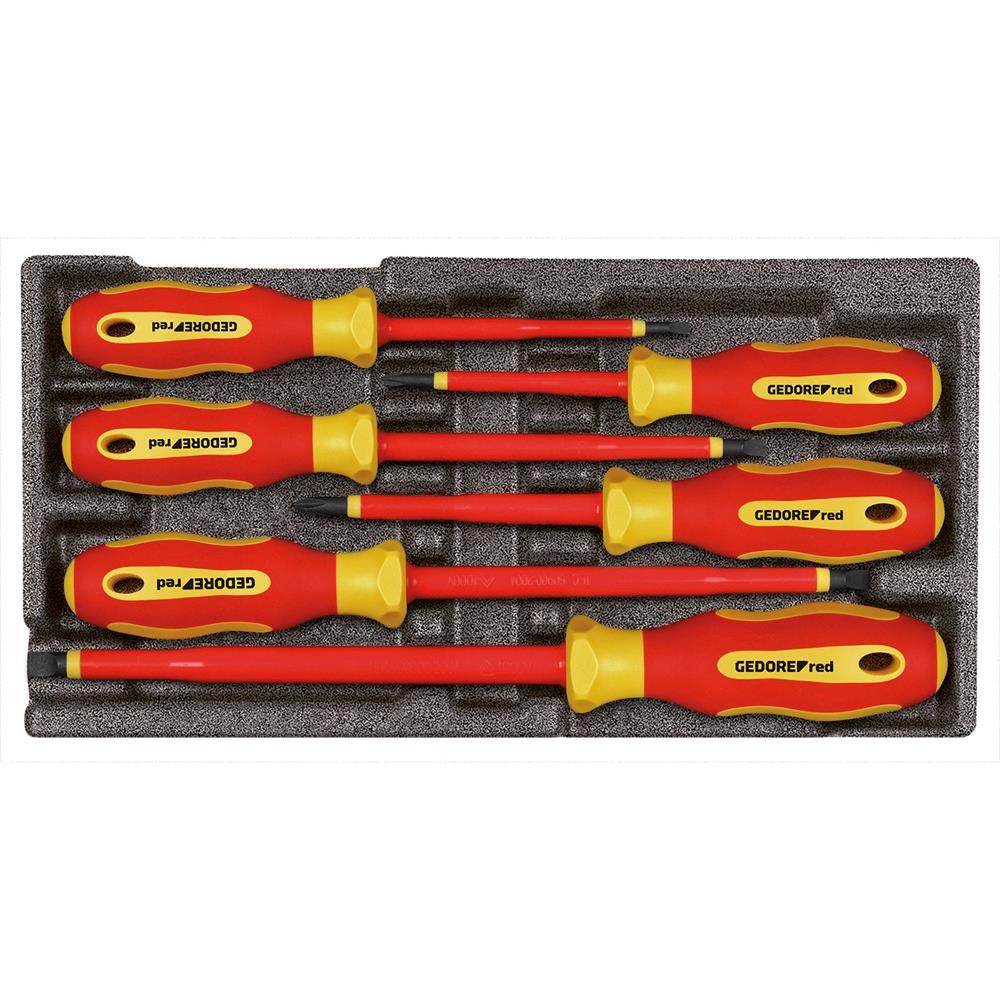

Gedore red R22150016 VDE Screwdriver set in the 3/3 foam module, 6 pieces   Features: For slotted head screws: Acc. to DIN 5264, DIN ISO 2380 For cross-head screws PH: Acc. to DIN 7438, DIN ISO 8764 VDE-insulated acc. to DIN EN 60900 Guaranteed protection for working under voltage up to 1000V AC (alternating current) and 1500V DC (direct current) Blade of high-grade chrome-molybdenum steel Driven tip phosphated, corrosion-protected and low-wear Dual-material handle, for easy handling Moulded handle forms a firm unit with the blade 5-edge handle head stops it rolling off when put down Elongated hole in the handle for hanging up In the foam module   Contents: VDE Screwdriver slotted 2.5 3 4 5.5 mm VDE Screwdriver cross-head PH 1 2

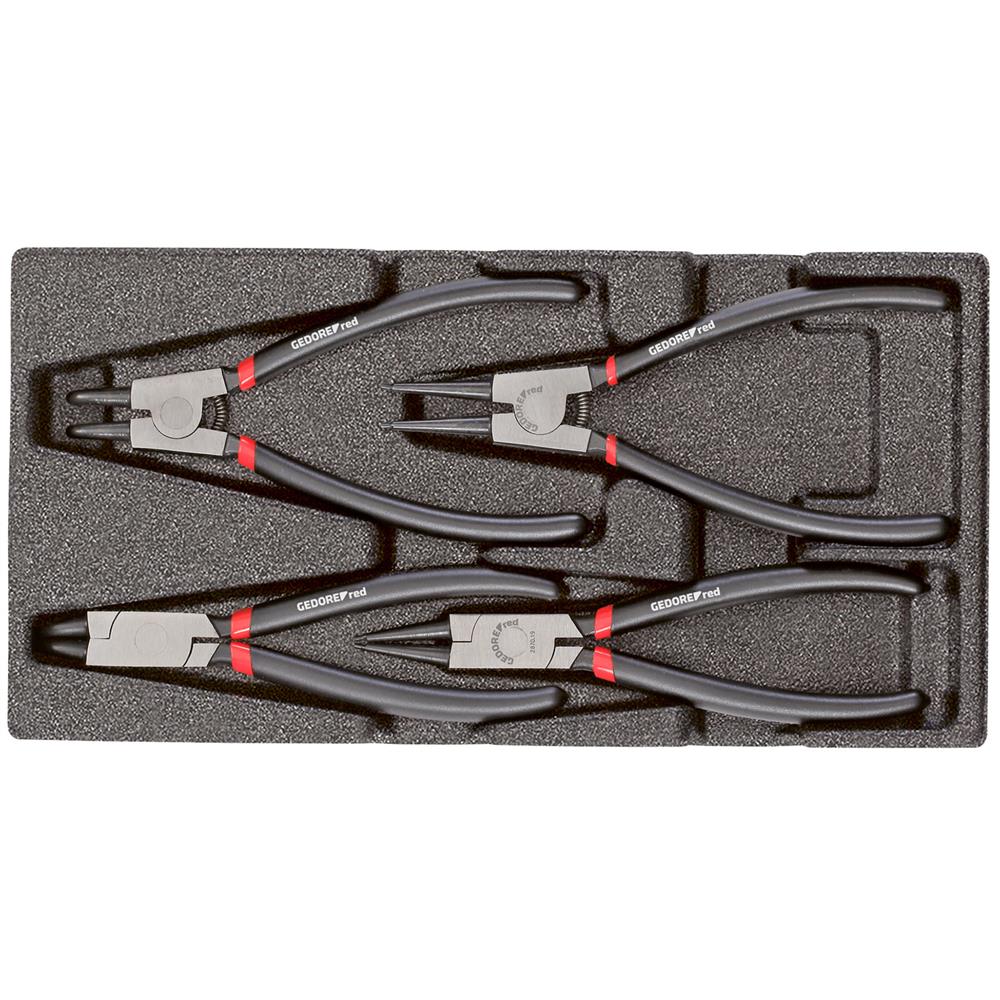

Gedore red R22150017 Retaining ring pliers set in the 3/3 foam module, 4 pieces   Features: To DIN 5254 Form A, straight precision tips, opening spring, DIN 471 for retaining rings, DIN 983 for shaft diameter To DIN 5254 Form B, 90° angled precision tips, opening spring, DIN 471 for retaining rings, DIN 983 for shaft diameter To DIN 5256 Form C, straight precision tips, opening spring, DIN 472 for retaining rings, DIN 984 for shaft diameter To DIN 5256 Form D, 90° angled precision tips, DIN 472 for retaining rings, DIN 984 for drill hole diameter Dipped handle protectors Chrome-vanadium steel In the foam module   Contents: Circlip pliers for external retaining rings, straight 19-60 mm Circlip pliers for external retaining rings, angled 19-60 mm Circlip pliers for internal retaining rings, straight 19-60 mm Circlip pliers for internal retaining rings, angled 19-60 mm

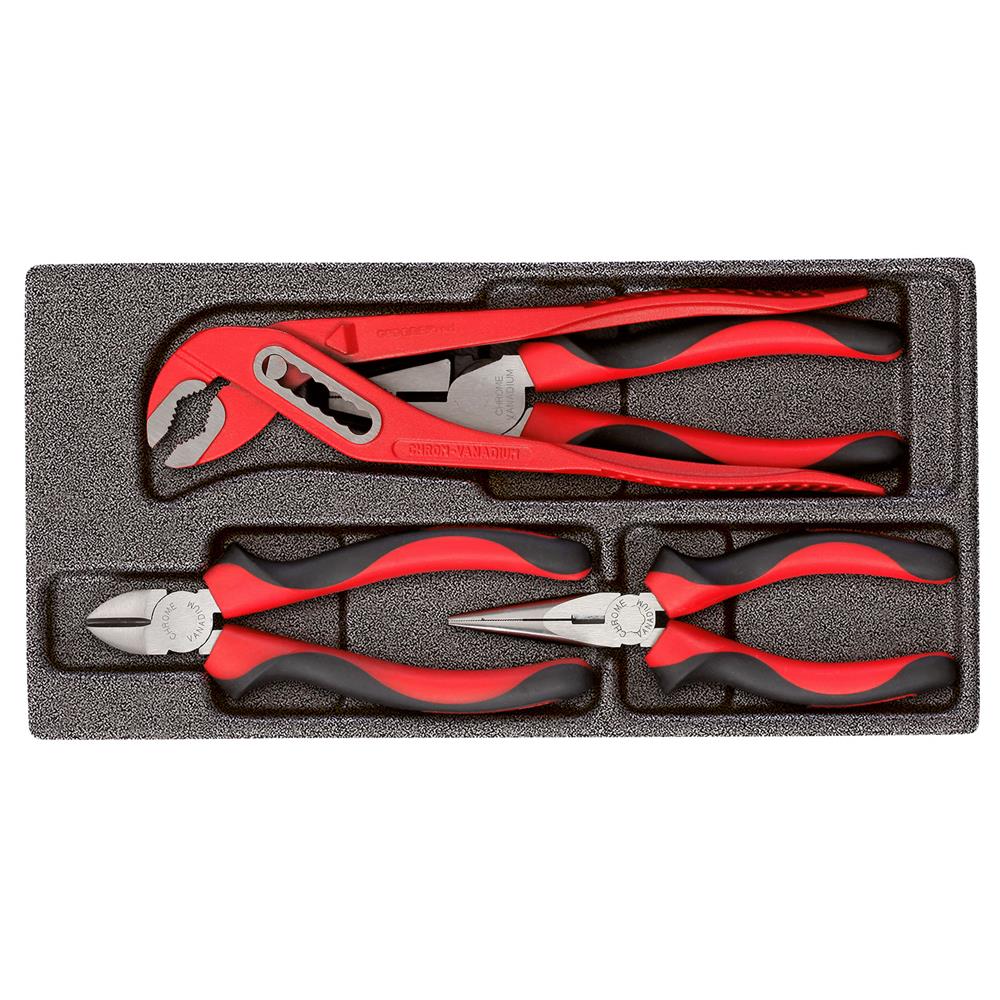

Gedore red R22150018 Pliers set in the 3/3 foam module, 4 pieces   Features: Water pump pliers: To DIN 8976 Form C, lengthways-serrated gripping surfaces, box joint, 7 settings, chrome vanadium steel, powder-coated Combination pliers: To DIN ISO 5746, inductively hardened cutting edges, dual-material handle, forged Bent nose telephone pliers: To DIN ISO 5745, straight gripping surfaces, lengthways-serrated, inductively hardened cutting edges, dual-material handle, forged Side cutters: To DIN ISO 5749, slender head, inductively hardened, long cutting edges, dual-material handle, forged In the foam module   Contents: Water pump pliers 10” | 250 mm Combination pliers 180 mm Bent nose telephone pliers, straight 160 mm Side cutter 160 mm

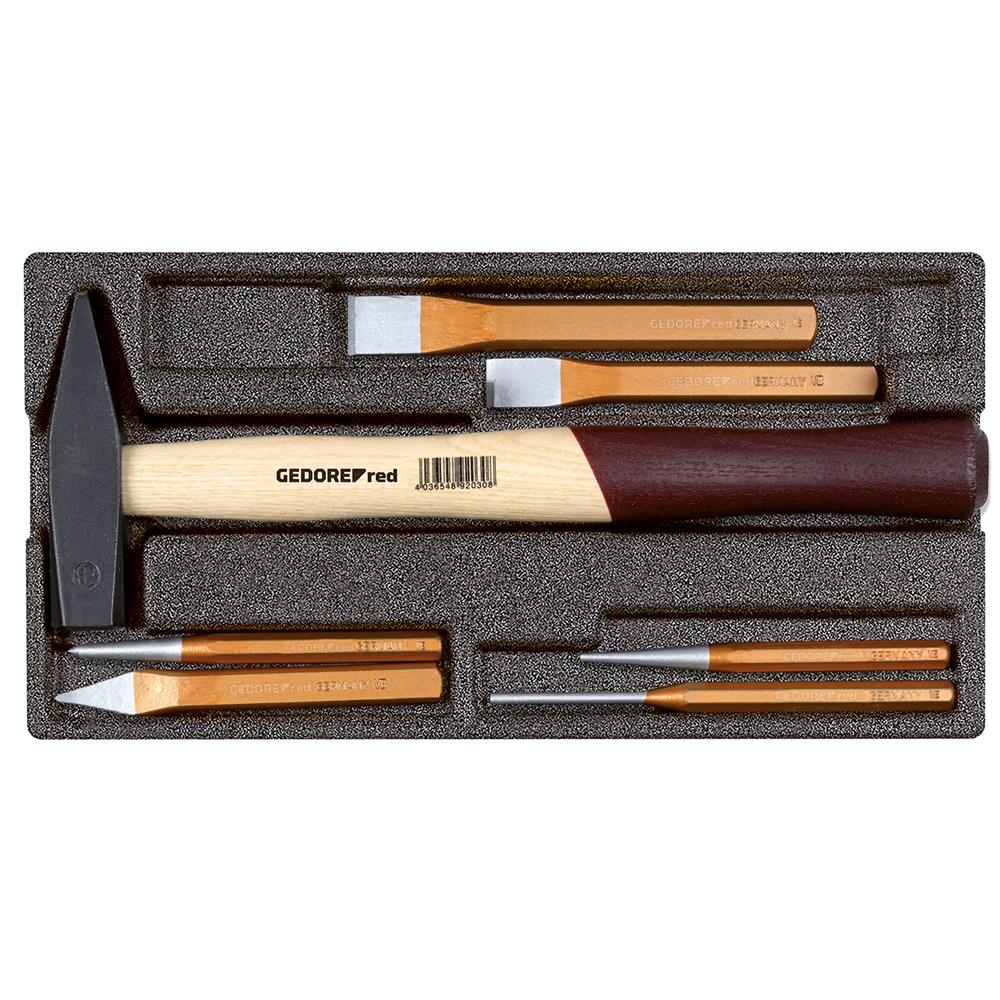

Gedore red R22150019 Hammer and chisel set in the 3/3 foam module, 7 pieces   Features: Engineers’ hammer: Forged hammer head of tempered steel, inductively hardened striking surfaces, to DIN 1041, ash handle, paint-coated shaft end, ring wedge Flat cold chisel, flat oval: To DIN 6453, cutting edge and head ground, impact end tempered, chrome-vanadium steel Cross-cut chisel, flat oval: To DIN 6451, cutting edge, sides and head ground, impact end tempered, chrome-vanadium steel Hexagonal punch: To DIN 6458, impact end annealed, chrome-vanadium steel Centre punch, hexagonal: To DIN 7250, impact end annealed, chrome-vanadium steel Pin punch, octagonal: To DIN 6450, impact end annealed, chrome-vanadium steel In the foam module   Contents: Engineers’ hammer 300 g Flat cold chisel 125 mm 150 mm Cross-cut chisel 125 mm Centre punch 4 mm | 120 mm Pin punch 4 mm | 120 mm Drift punch 3 mm | 150 mm

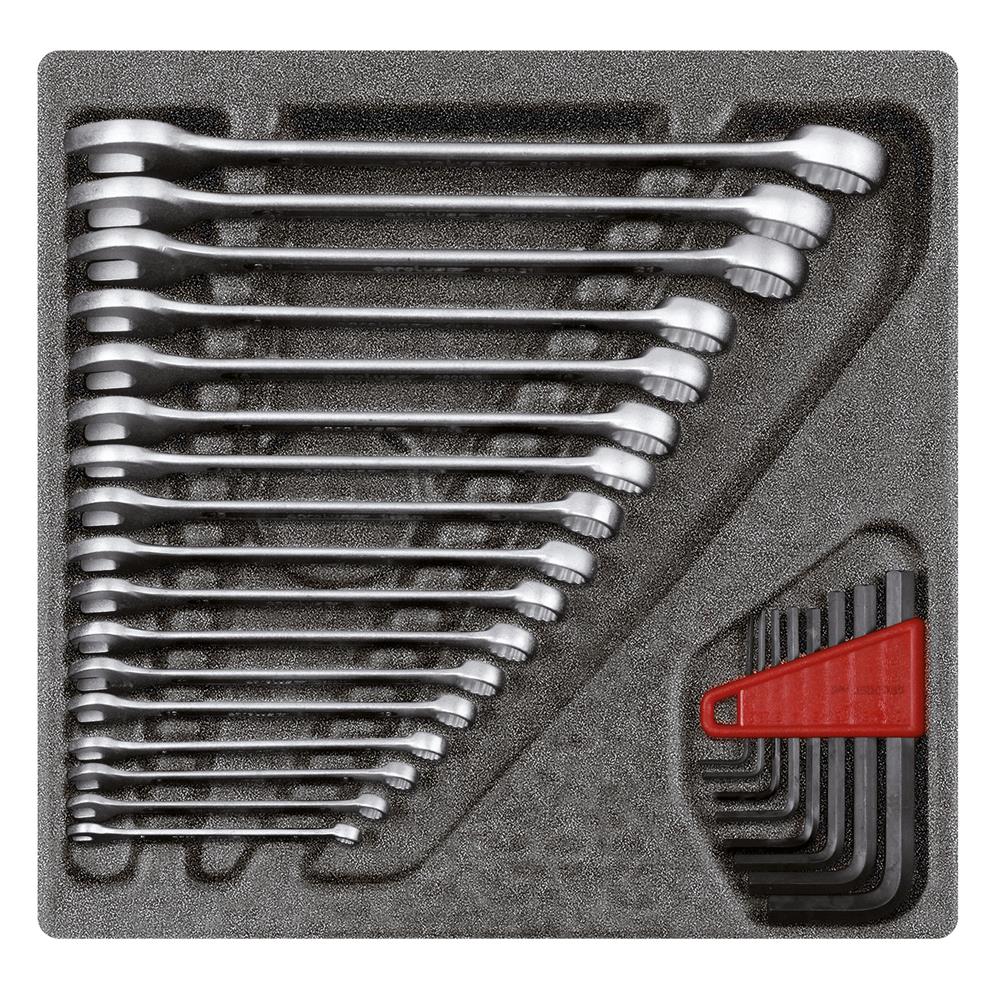

Gedore red R22250000 Combination spanner set and hexagon socket key set in the 3/3 foam module, 26 pieces   Features: Combination spanner: To DIN 3113, Form A ISO 3318, ISO 7738, ring side angled 15° jaw position, surface matt satin, chrome-plated Hexagon socket key set: To DIN ISO 2936, hardened throughout, phosphated Chrome-vanadium steel In the foam module   Contents: Combination spanner 6 7 8 9 10 11 12 13 14 15 16 17 18 19 21 22 24 mm Hexagon socket key set, 9 pcs, 1.5 2 2.5 3 4 5 6 8 10 mm

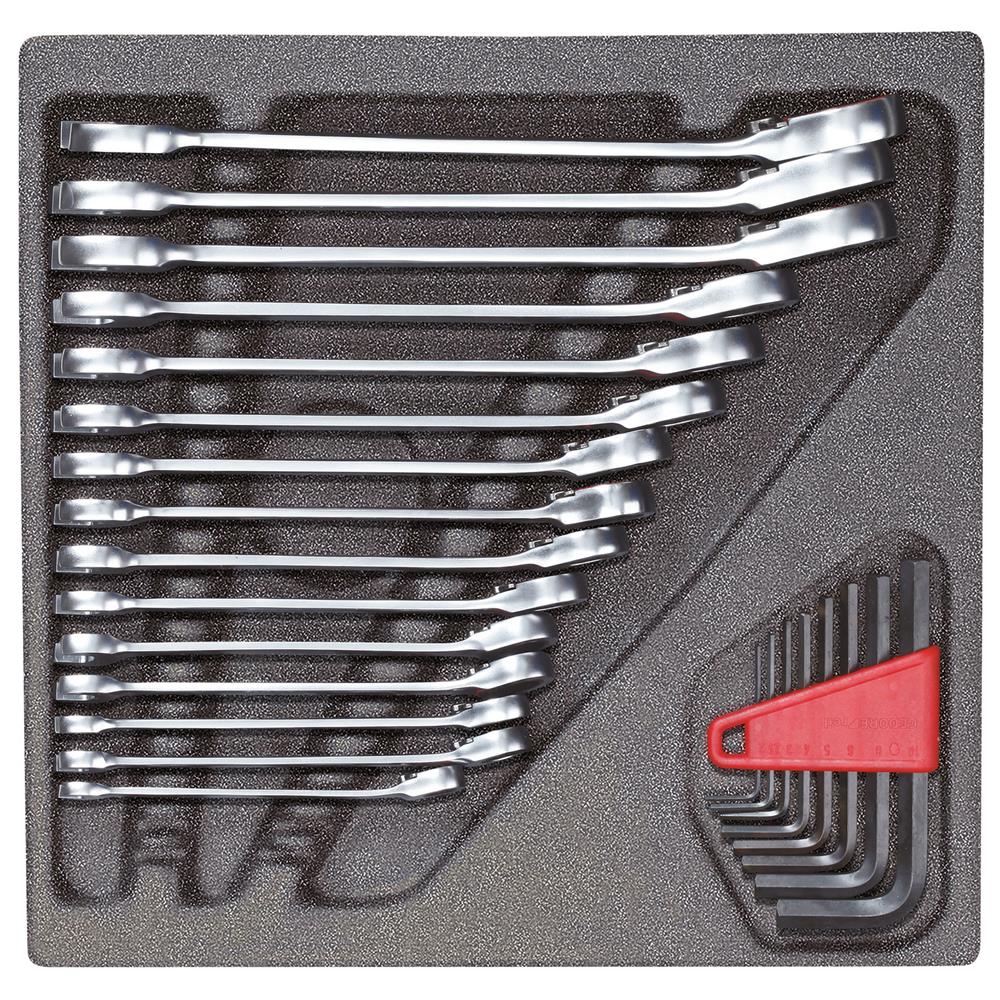

Gedore red R22250001 Ratchet wrench and hexagon socket key set in the 3/3 foam module, 24 pieces   Features: Ratchet wrenches: Based on DIN 3113, ISO 3318, ring offset 15°, reversible for right and left-hand operation, 15° jaw position, surface matt satin chrome-plated Hexagon socket key set: To DIN ISO 2936, hardened throughout, phosphated Chrome-vanadium steel In the foam module   Contents: Ratchet wrench 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 mm Hexagon socket key set, 9 pcs, 1.5 2 2.5 3 4 5 6 8 10 mm

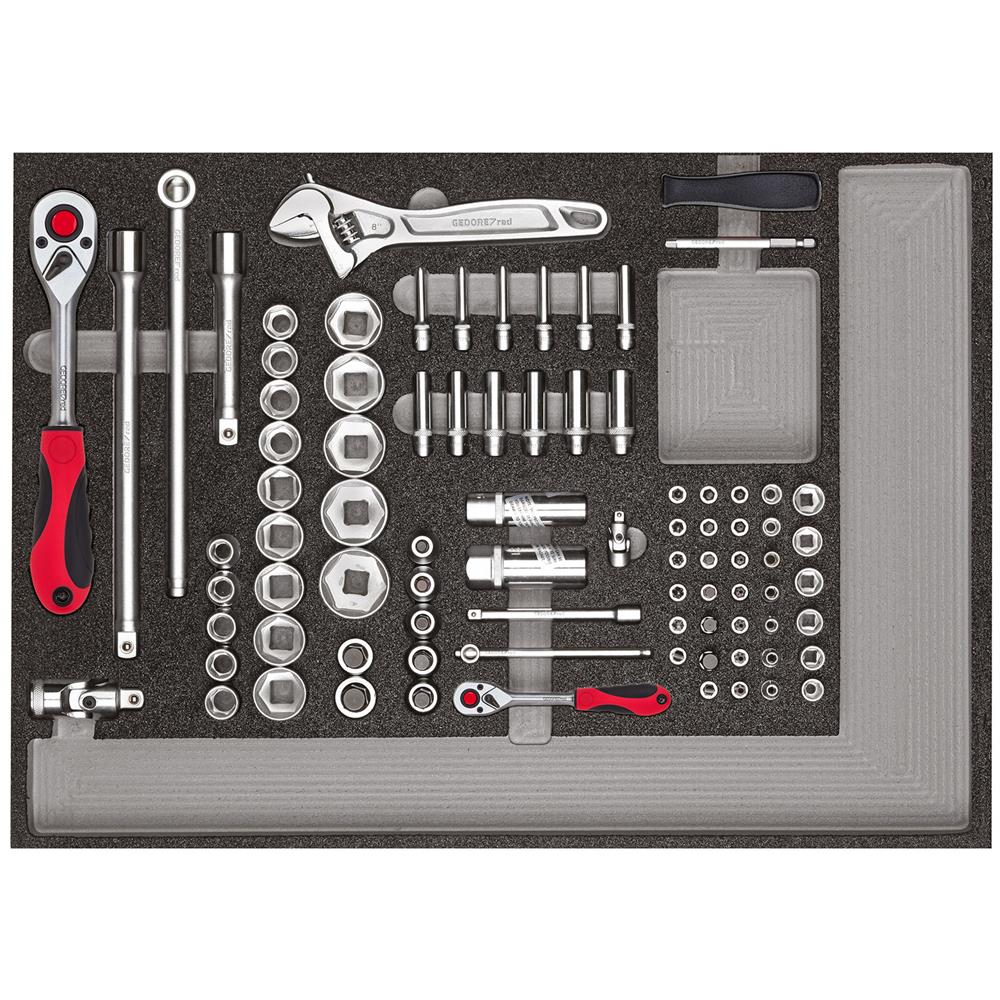

Gedore red R22350000 Socket set 1/4” + 1/2" and accessories in the 3/3 foam module, 87 pieces   Features: Coupler in acc. with DIN 3120, ISO 1174, with ball locking device Square drive acc. to DIN 3120, ISO 1174, with ball retention groove 2C Reversible ratchet: Lever for reversible right and left hand operation, push button release, fine-toothed, oval head, dual-material handle, hands-friendly transfer of force, for sockets Square plug-in handle 1/4": 1-component handle with in-hex Socket 1/4” + 1/2": hex, metric, short and long type based on DIN 3124, ISO 2725 Spark plug socket 1/2" with pressed-in holding rubber Spark plug socket 1/2" with pressed-in holding rubber and additional drive hex AF 24 Screwdriver bit socket 1/4” + 1/2" for in-hex screws: Pressed-in, phosphated pin Screwdriver bit socket 1/4" slotted: Pressed-in, phosphated pin Screwdriver bit socket 1/4" PZ: Pressed-in, phosphated pin Screwdriver bit socket 1/4" PZ: Pressed-in, phosphated pin Screwdriver bit socket 1/4" TX with drill hole: Pressed-in, phosphated pin Sliding T-handle with slide 1/4” + 1/2”: Acc. to DIN 3122, ISO 3315 Socket extension 1/4"+ 1/2" Universal joint 1/4" + 1/2": Joint bolted on, design to DIN 3123 - C 12.5 Adjustable spanner: 15° jaw position, polished head with lasered scale For hand-operated bolting operations Chrome-vanadium steel, matt satin chrome-plated   Contents: 1/4” 2C lever reversible ratchet, fine-tooth, 72 teeth | 150 mm 1/4" square plug-in handle 165 mm 1/4” socket hexagon 4 4.5 5 5.5 6 7 8 9 10 11 12 13 14 1/4” socket hexagon 4 4.5 5 5.5 6 7 8 9 10 11 12 13 50 1/4" screwdriver bit socket in-hex 3 4 5 6 8 10 | 37 mm 1/4" screwdriver bit socket slotted 5.5 6.5 | 37 mm 1/4" screwdriver bit socket cross-slotted PH 1 2 3 | 37 mm 1/4" screwdriver bit socket cross-head PZ 1 2 | 37 mm 1/4" socket TX with hole T10 T15 T20 T25 T27 T30 T40 | 37 mm 1/4" socket extension 100 mm 1/4" sliding T-handle with slide | 115 mm 1/4" universal joint | 32 mm 1/2” 2C lever reversible ratchet, fine-tooth, 72 teeth | 250 mm 1/2” socket hexagon 10 11 12 13 14 15 16 17 18 19 21 22 23 24 26 27 28 30 32 1/2” screwdriver bit socket in-hex 6 7 8 9 10 12 14 | 55 mm 1/2" spark plug socket 16 21 mm | 65 mm 1/2" socket extension 125 250 mm 1/2" sliding T-handle with slide | 250 mm 1/2" universal joint | 66 mm Adjustable spanner 8“

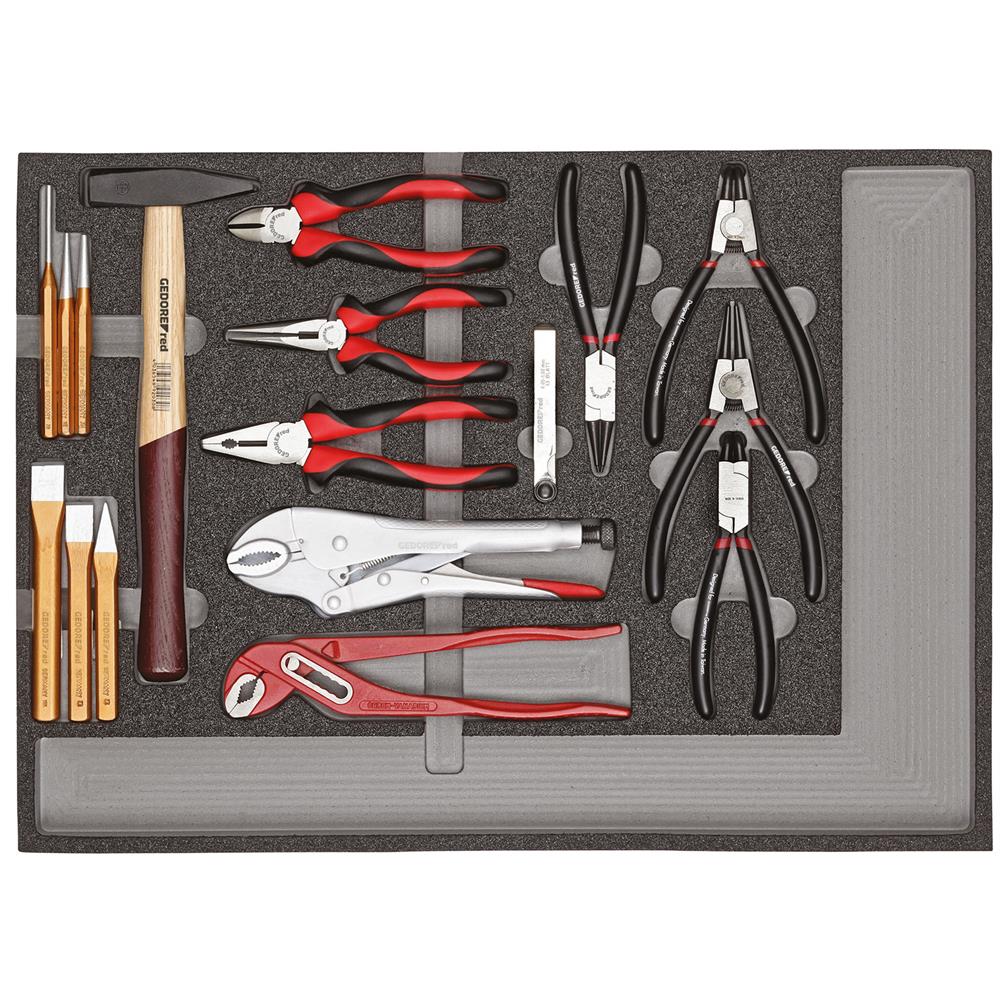

Gedore red R22350001 Tool set pliers, hammer, chisel in the 3/3 foam module, 29 pieces   Features: Bent nose telephone pliers, straight: To DIN ISO 5745, straight gripping surfaces, lengthways-serrated, inductively hardened cutting edges, dual-material handle, chrome-vanadium steel Side cutters: To DIN ISO 5749, slender head, inductively hardened, long cutting edges, dual-material handle, chrome-vanadium steel Internal circlip pliers, straight and angled: To DIN 5256, precision tips, DIN 472 for retaining rings, DIN 984, dip-insulated handles, chrome vanadium steel External circlip pliers, straight and angled: To DIN 5254, precision tips, DIN 471 for retaining rings, DIN 983, dipped handle protectors, chrome vanadium steel Clamp locking plier: Lengthways-serrated grip surfaces, setting screw and release lever, one-hand operation, surface chrome-plated, chrome vanadium steel Combination pliers: To DIN ISO 5746, gripping zones for flat and round material, inductively hardened cutting edge, dual-material handle, special tool steel, forged Water pump pliers: To DIN 8976, lengthways-serrated grip surfaces, box joint, 7 settings, head and box polished, chrome-vanadium steel, powder-coated Engineers’ hammer: Forged hammer head of tempered steel, inductively hardened striking surfaces, to DIN 1041, ash handle, paint-coated shaft end, ring wedge Flat chisel: To DIN 6453, cutting edge and head ground, impact end tempered, chrome-vanadium steel Cross-cut chisel: To DIN 6451, cutting edge, sides and head ground, impact end tempered, chrome-vanadium steel Centre punch: To DIN 7250, impact end annealed, chrome-vanadium steel Pin punch: To DIN 6450, impact end annealed, chrome-vanadium steel Feeler gauge set: Protective handle, folding, blades tapering to a cone, of hardened spring steel   Contents: Circlip pliers, external, straight 19-60 mm Circlip pliers, external, angled 19-60 mm Circlip pliers, internal, straight 19-60 mm Circlip pliers, internal, angled 19-60 mm Feeler gauge set, 13 pcs Clamp locking plier 10” | 225 mm Combination plier 180 mm Telephone pliers, straight pattern 160 mm Side cutter 160 mm Water pump pliers 10” | 250 mm Engineers’ hammer 300 g Flat cold chisel 125 mm, 150 mm Cross-cut chisel 125 mm Centre punch 4 mm | 120 mm Pin punch 4 mm | 120 mm Drift punch 3 mm | 150 mm

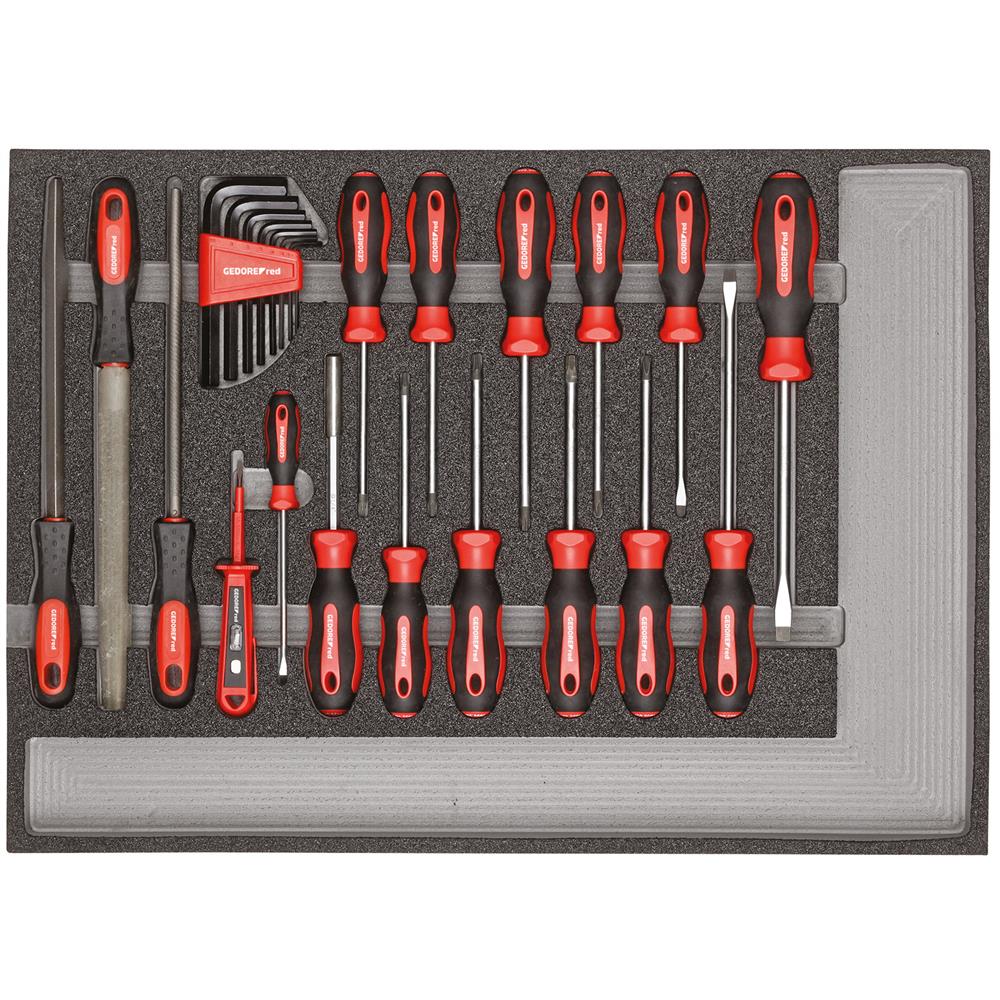

Gedore red R22350002 Screwdriver and file set in the 3/3 foam module, 26 pieces   Features: 2C screwdriver slotted: To DIN 5264, high-grade chrome-molybdenum steel blade, chrome-plated, phosphated driven tip, dual-material handle, hands-friendly transfer of force, 5-edge grip head, elongated hole in handle 2C screwdriver PH: To DIN 8764, high-grade chrome-molybdenum steel blade, chrome-plated, phosphated driven tip, dual-material handle, 5-edge grip head, elongated hole in handle 2C screwdriver TX: Chrome-molybdenum steel blade, chrome-plated, phosphated driven tip, dual-material handle, 5-edge grip head, elongated hole in handle Phase tester: Max. 250 volt, black gun-metal tip, red plastic jacket, anti-slip handle surface, synthetic clip, to DIN 0680-6:1977-04 Bit screwdriver: Dual-material handle, hex recess drive to DIN 3126 - D 6.3 (1/4") for bits, magnet, elongated hole in the handle, chrome-vanadium steel Hexagon socket key set: To DIN ISO 2936, hardened throughout, chrome-vanadium steel, phosphated, in holder Files: To DIN 7261, dual-material handle, file-cut 2, file length 200 mm, total length 310 mm, hole for hanging up   Contents: Screwdriver slotted 4 5.5 6.5 8 mm Screwdriver cross-slotted PH 1 2 Screwdriver TX T10 T15 T20 T25 T30 T40 Voltage tester 3 mm | 135 mm Bit screwdriver 1/4" Hexagon socket key set, 9 pcs, 1.5 2 2.5 3 4 5 6 8 10 mm Half-round file 310 mm Three-edged file 310 mm Round file 310 mm

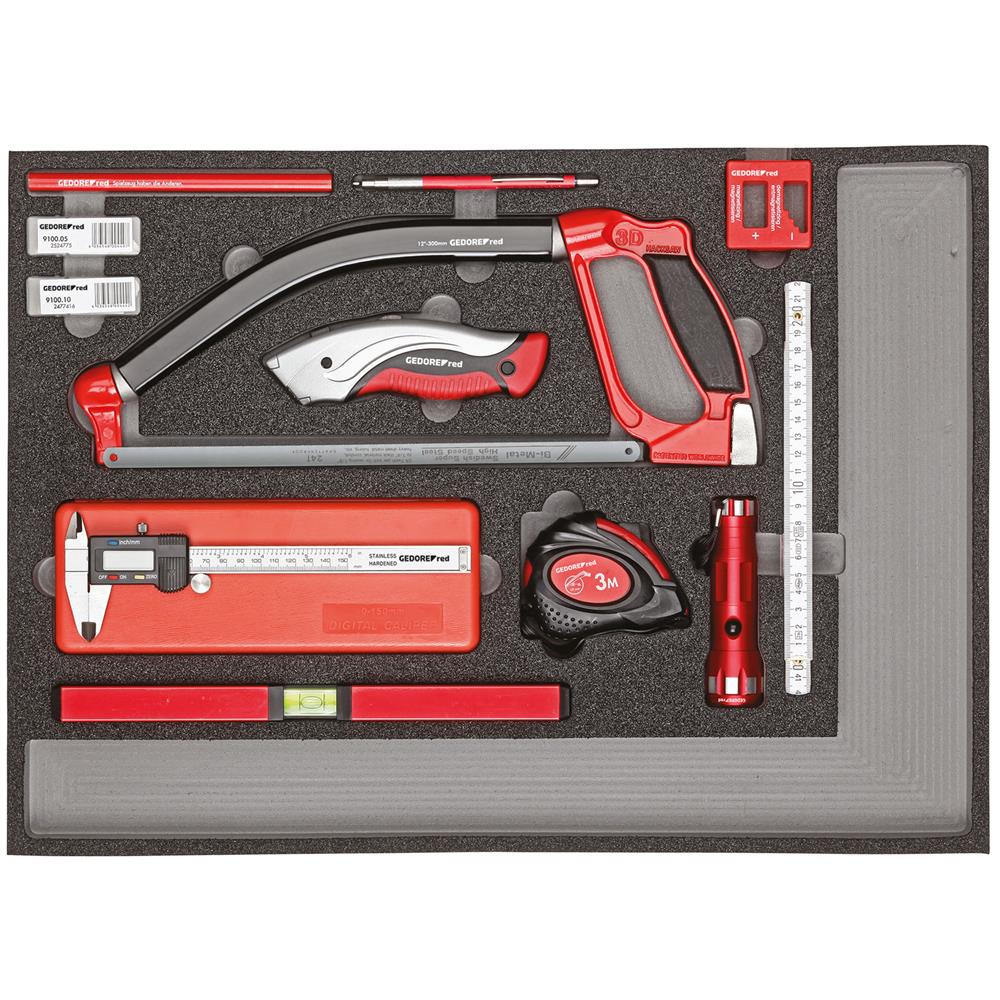

Gedore red R22350004 Measuring and cutting tools set in the 3/3 foam module, 30 pieces   Features: Multifunction saw: Rotating saw blade and frame, hand protector, dual-material handle, delivered with HSS bi-metal saw blade (24 tpi) Digital measuring calliper: LCD display, reset setting, precision roller adjustment, mm/inch changeover, ground tips, in box incl. spare battery, operating instructions, PC interface, locking screw, thread table on the back Heavy-duty utility knife: Multi-component handle, aluminium, rapid-change mechanism, 1 trapezoid blade and 4 spare trapezoid blades, rugged design Tape measure: ABS dual-material housing, clip, nylon-coated tape, mm-graduation, with tape rewind and lock, magnetic stop, Accuracy Class II (De)magnetizer: Magnetizer for bolting and gripping tools, demagnetizer for tools Spirit level: Smooth aluminium rectangular profile, two acrylic vials, measurement accuracy: +/- 0.5 mm/m, powder-coated, impact-resistant end cap Wood sectioned folding ruler: Metric dual scale, Accuracy Class III, EC-design approval for continuous mm division, beech wood with through-riveted joints Blue pencil: Oval form Carbide scriber: Pencil and carbide scriber in one, straight form, retractable nib, metal housing, attaching clip LED torch: Aluminium housing, batteries (3x AAA) supplied, loop, 2 brightness settings and additional warning/signal function, 1 W LED, 55-60 lm luminous flux, 25-30 m light range, subject to technical changes   Contents: Digital measuring calliper Heavy-duty utility knife with 4 spare blades 175 mm Tape measure 3 m (De)magnetizer Multifunction saw 300 mm Spirit level 300 mm Wood sectioned folding ruler 2 m Blue pencil 175 mm Carbide scriber 145 mm LED torch 130 mm

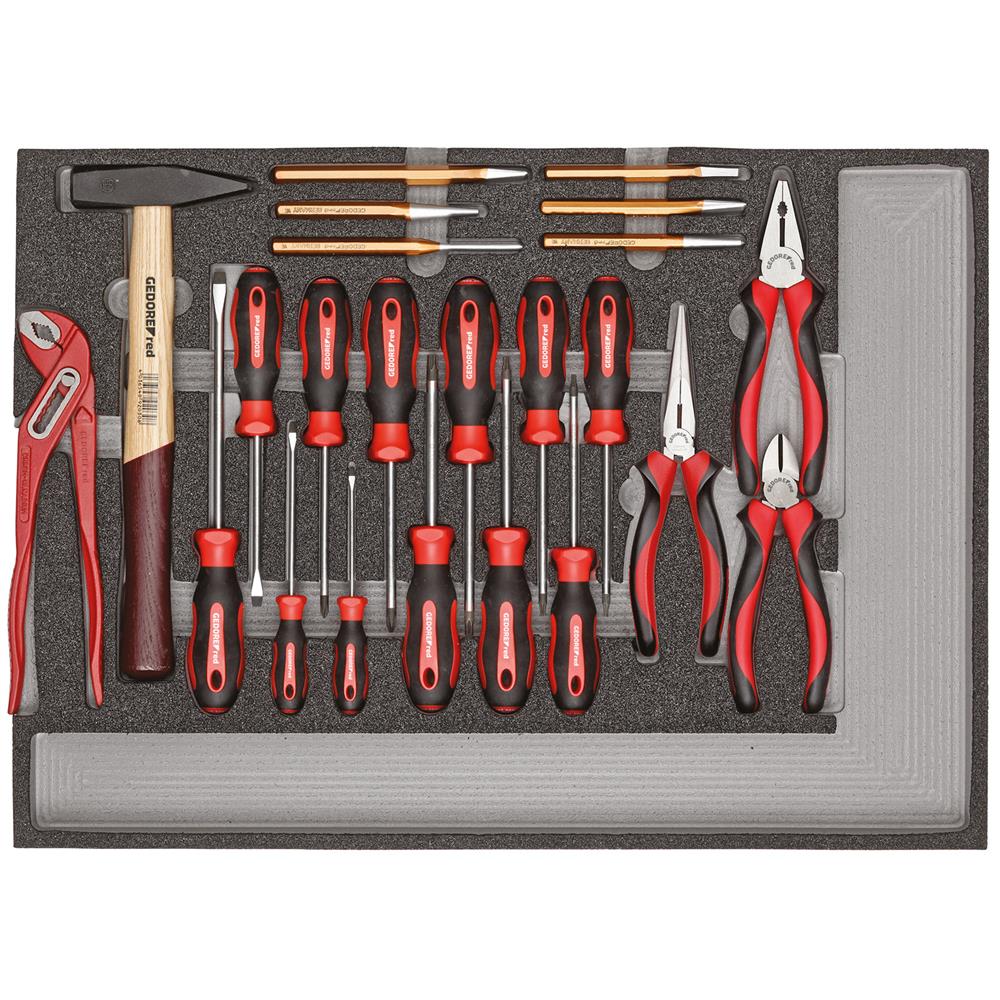

Gedore red R22350005 Screwdriver, pliers, hammer and chisel set in the 3/3 foam module, 23 pieces   Features: Combination pliers: To DIN ISO 5746, gripping zones for flat and round material, inductively hardened cutting edges, dual-material handle, chrome-vanadium steel Side cutters: To DIN ISO 5749, slender head, inductively hardened, long cutting edges, dual-material handle, chrome-vanadium steel Bent nose telephone pliers, straight: To DIN ISO 5745, straight gripping surfaces, lengthways-serrated, inductively hardened cutting edges, dual-material handle, chrome-vanadium steel Water pump pliers: To DIN 8976 Form C, lengthways-serrated gripping surfaces, box joint, 7 settings, chrome vanadium steel, powder-coated 2C screwdriver: Slot and cross-slotted PH, to DIN, high-grade chrome-molybdenum steel blade, chrome-plated, phosphated driven tip, dual-material handle, 5-edge grip head, elongated hole in handle 2C screwdriver TX: High-grade chrome-molybdenum steel blade, chrome-plated, phosphated driven tip, dual-material handle, 5-edge grip head, elongated hole in handle Engineers’ hammer: Forged hammer head of tempered steel, inductively hardened striking surfaces, to DIN 1041, ash handle, paint-coated shaft end, ring wedge Flat chisel: To DIN 6453, cutting edge and head ground, impact end tempered, chrome-vanadium steel Cross-cut chisel: To DIN 6451, cutting edge, sides and head ground, impact end tempered, chrome-vanadium steel Hexagonal punch: To DIN 6458, impact end annealed, chrome-vanadium steel Centre punch, hexagonal: To DIN 7250, impact end annealed, chrome-vanadium steel Pin punch, octagonal: To DIN 6450, impact end annealed, chrome-vanadium steel   Contents: Combination plier 180 mm Side cutter 160 mm Bent nose telephone pliers, straight 200 mm Screwdriver slotted 3 4 5.5 6.5 mm Screwdriver cross-slotted PH 1 2 Screwdriver TX T10 T15 T20 T25 T30 T40 Water pump pliers 10", 250 mm Engineers’ hammer 300 g Flat cold chisel 125 mm, 150 mm Cross-cut chisel 125 mm Centre punch 4 mm | 120 mm Pin punch 4 mm | 120 mm Drift punch 3 mm | 150 mm

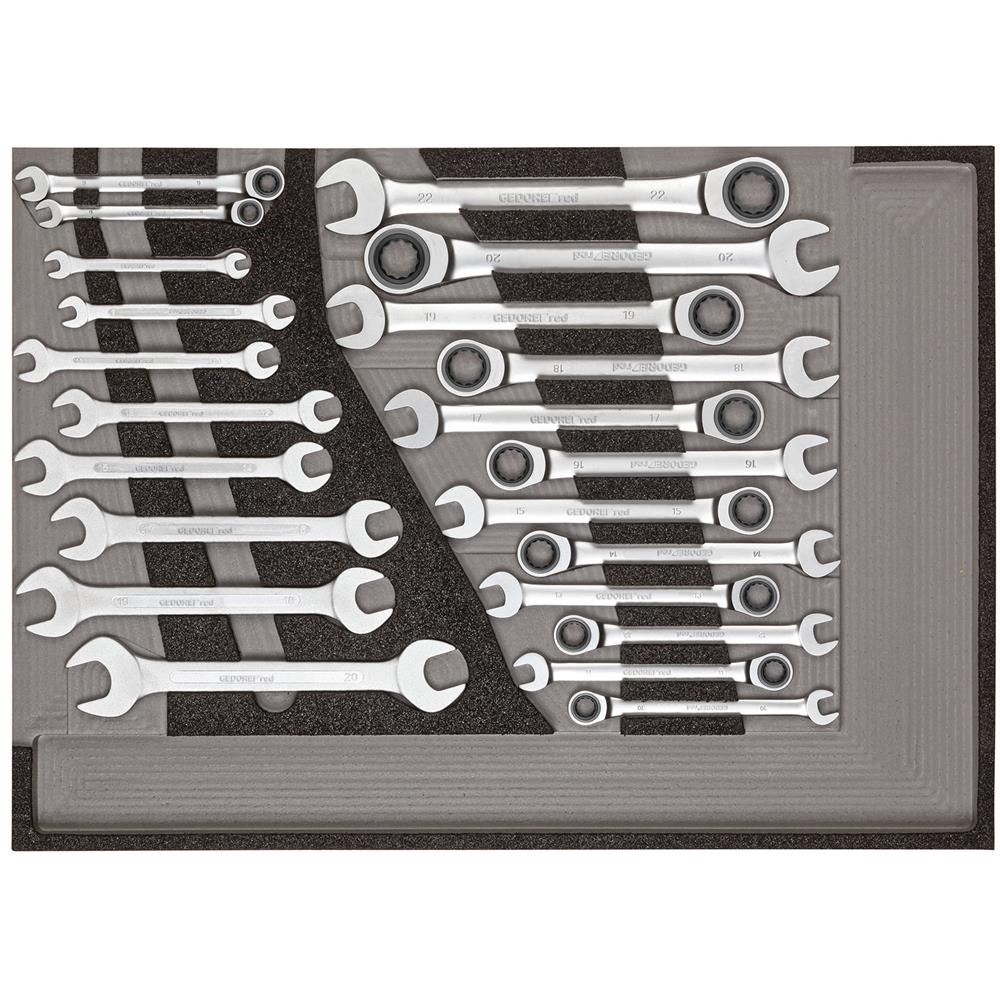

Gedore red R22350006 Ratchet wrench and double open-ended spanner set in the 3/3 foam module, 22 pieces   Features: Ratchet wrenches: Based on DN 3113, ISO 3318, straight, 72-toothed ratchet mechanism, 5° working angle, 15° jaw position, surface matt satin plate-chromed, chrome-vanadium steel Double open-ended spanner: To DIN 3110, ISO 3318, ISO 1085, ISO 10102, 15° jaw position, surface matt satin chrome-plated, chrome-vanadium steel   Contents: Ratchet wrench 8 9 10 11 12 13 14 15 16 17 18 19 20 22 mm Double open ended spanner 6x7 8x9 10x11 12x13 14x15 16x17 18x19 20x22 mm
