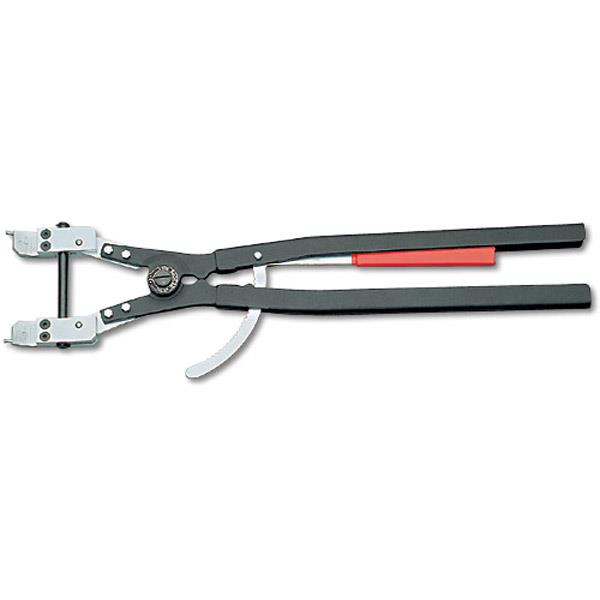

Gedore 8005 A Pliers for external retaining rings 305-500 mm Gedore 8005 A Pliers for external retaining rings 305-500 mm Features:For shaftsIncludes 4 different tips (detailed instructions are included with the pliers)By using a suitably wide pairing of the pick-up tipsthe ring is securely fixed before the actual tong stroke. This prevents unnecessary idle stroke and the ring can be opened completelyThe special parallel movement of the clamping tips and their recesses in the direction of the pressure applied ensure that the circlip will be clamped firmly Technical features:Net weight [kg]: 3,52 kgShaft diameter [mm]: 305-500Tip diameter: 5,9 mmTotal length [mm]: 665 mmJoint Typees: applied jointGedore Code-Number: 6707150EAN: 4010886670712

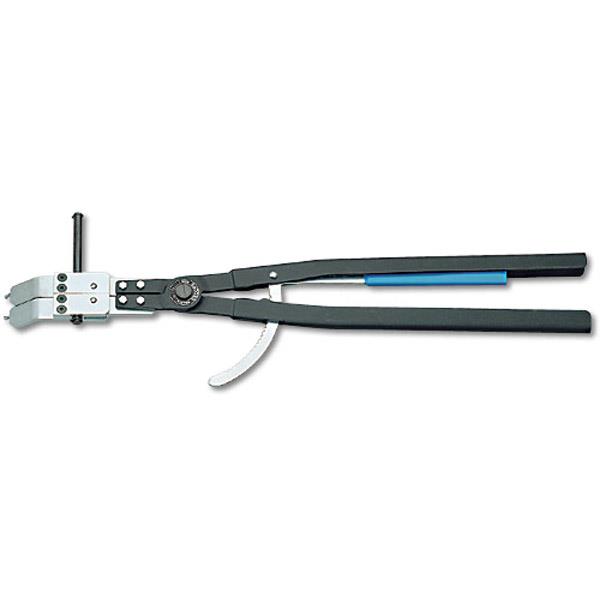

Gedore 8005 J pliers for internal retaining rings 305-500 mm Gedore 8005 J pliers for internal retaining rings 305-500 mm Features:For holesIncludes 6 different tips (detailed instructions are included with the pliers)By using a suitably wide pairing of the pick-up tipsthe ring is securely fixed before the actual tong stroke. This prevents unnecessary idle stroke and the ring can be opened completelyThe special parallel movement of the clamping tips and their recesses in the direction of the pressure applied ensure that the circlip will be clamped firmly Technical features:Net weight [kg]: 3,885 kgShaft diameter [mm]: 305-500Tip diameter: 5,9 mmTotal length [mm]: 705 mmJoint Typees: applied jointGedore Code-Number: 6707230EAN: 4010886670729
Gedore E 8005 1 A Spare tip 1 A Gedore E 8005 1 A Spare tip 1 A Features:Selection guide: The spacing of holes for non-tensioned circlips is normally between 20 mm and 50 mmThe tips used to spread the rings are fitted to match the opening width of the non-tensioned circlipOpening widths 18-28 mm: Combination tips E-8005 1 A and E-8005 2 AOpening widths 29-39 mm: Combination tips E-8005 1 A and E-8005 4 AOpening widths 40-50 mm: Combination tips E-8005 3 A and E-8005 4 A Technical features:Net weight [kg]: 0,068 kgREACH: compliantDesign non-sparking: NoVDE certified: NoGedore Code-Number: 5700790EAN: 4010886570074

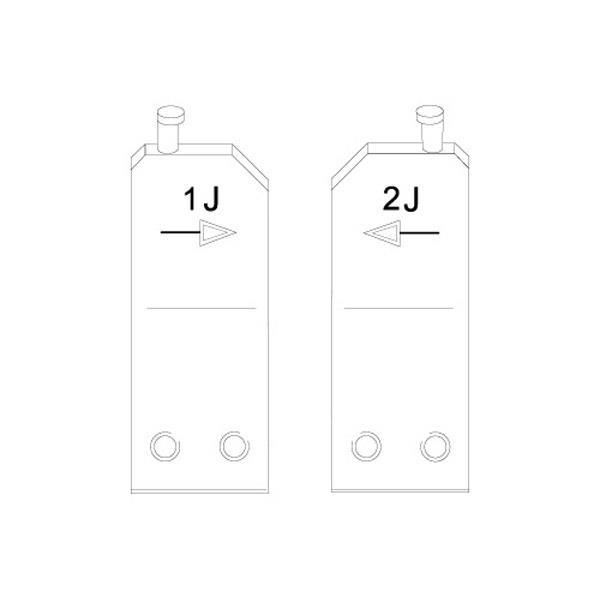

Gedore E 8005 1 J Spare tip 1 J Gedore E 8005 1 J Spare tip 1 J Features:Selection guide: The spacing of holes for non-tensioned circlips is normally between 80 mm and 140 mmThe tips used to spread the rings are fitted to match the opening width of the non-tensioned circlipOpening widths 140-125 mm: Combination tips E-8005 1 J and E-8005 2 JOpening widths 125-110 mm: Combination tips E-8005 1 J and E-8005 4 JOpening widths 110-95 mm: Combination tips E-8005 3 J and E-8005 4 JOpening widths 95-80 mm: Combination tips E-8005 5 J and E-8005 6 J Technical features:Net weight [kg]: 0,116 kgREACH: compliantDesign non-sparking: NoVDE certified: NoGedore Code-Number: 5703380EAN: 4010886570333

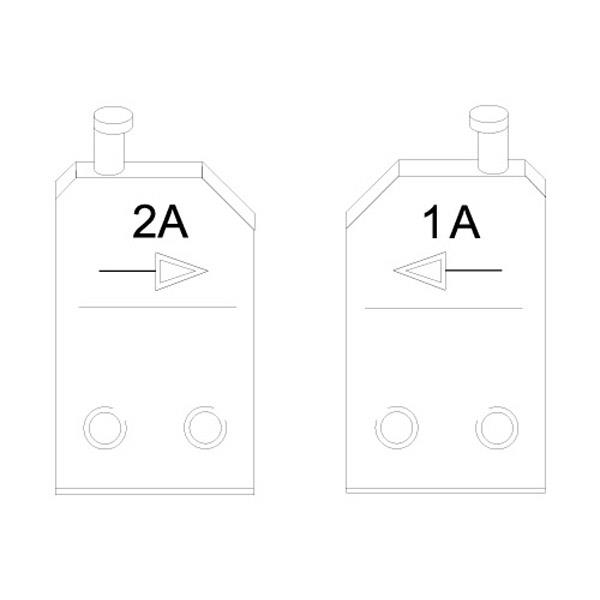

Gedore E 8005 2 A Spare tip 2 A Gedore E 8005 2 A Spare tip 2 A Features:Selection guide: The spacing of holes for non-tensioned circlips is normally between 20 mm and 50 mmThe tips used to spread the rings are fitted to match the opening width of the non-tensioned circlipOpening widths 18-28 mm: Combination tips E-8005 1 A and E-8005 2 AOpening widths 29-39 mm: Combination tips E-8005 1 A and E-8005 4 AOpening widths 40-50 mm: Combination tips E-8005 3 A and E-8005 4 A Technical features:Net weight [kg]: 0,068 kgREACH: compliantDesign non-sparking: NoVDE certified: NoGedore Code-Number: 5702220EAN: 4010886570227
Gedore E 8005 2 J Spare tip 2 J Gedore E 8005 2 J Spare tip 2 J Features:Selection guide: The spacing of holes for non-tensioned circlips is normally between 80 mm and 140 mmThe tips used to spread the rings are fitted to match the opening width of the non-tensioned circlipOpening widths 140-125 mm: Combination tips E-8005 1 J and E-8005 2 JOpening widths 125-110 mm: Combination tips E-8005 1 J and E-8005 4 JOpening widths 110-95 mm: Combination tips E-8005 3 J and E-8005 4 JOpening widths 95-80 mm: Combination tips E-8005 5 J and E-8005 6 J Technical features:Net weight [kg]: 0,116 kgREACH: compliantDesign non-sparking: NoVDE certified: NoGedore Code-Number: 5703460EAN: 4010886570340
Gedore E 8005 3 A Spare tip 3 A Gedore E 8005 3 A Spare tip 3 A Features:Selection guide: The spacing of holes for non-tensioned circlips is normally between 20 mm and 50 mmThe tips used to spread the rings are fitted to match the opening width of the non-tensioned circlipOpening widths 18-28 mm: Combination tips E-8005 1 A and E-8005 2 AOpening widths 29-39 mm: Combination tips E-8005 1 A and E-8005 4 AOpening widths 40-50 mm: Combination tips E-8005 3 A and E-8005 4 A Technical features:Net weight [kg]: 0,068 kgREACH: compliantDesign non-sparking: NoVDE certified: NoGedore Code-Number: 5702300EAN: 4010886570234
Gedore E 8005 3 J Spare tip 3 J Gedore E 8005 3 J Spare tip 3 J Features:Selection guide: The spacing of holes for non-tensioned circlips is normally between 80 mm and 140 mmThe tips used to spread the rings are fitted to match the opening width of the non-tensioned circlipOpening widths 140-125 mm: Combination tips E-8005 1 J and E-8005 2 JOpening widths 125-110 mm: Combination tips E-8005 1 J and E-8005 4 JOpening widths 110-95 mm: Combination tips E-8005 3 J and E-8005 4 JOpening widths 95-80 mm: Combination tips E-8005 5 J and E-8005 6 J Technical features:Net weight [kg]: 0,116 kgREACH: compliantDesign non-sparking: NoVDE certified: NoGedore Code-Number: 5704190EAN: 4010886570418
Gedore E 8005 4 A Spare tip 4 A Gedore E 8005 4 A Spare tip 4 A Features:Selection guide: The spacing of holes for non-tensioned circlips is normally between 20 mm and 50 mmThe tips used to spread the rings are fitted to match the opening width of the non-tensioned circlipOpening widths 18-28 mm: Combination tips E-8005 1 A and E-8005 2 AOpening widths 29-39 mm: Combination tips E-8005 1 A and E-8005 4 AOpening widths 40-50 mm: Combination tips E-8005 3 A and E-8005 4 A Technical features:Net weight [kg]: 0,068 kgREACH: compliantDesign non-sparking: NoVDE certified: NoGedore Code-Number: 5702490EAN: 4010886570241
Gedore E 8005 4 J Spare tip 4 J Gedore E 8005 4 J Spare tip 4 J Features:Selection guide: The spacing of holes for non-tensioned circlips is normally between 80 mm and 140 mmThe tips used to spread the rings are fitted to match the opening width of the non-tensioned circlipOpening widths 140-125 mm: Combination tips E-8005 1 J and E-8005 2 JOpening widths 125-110 mm: Combination tips E-8005 1 J and E-8005 4 JOpening widths 110-95 mm: Combination tips E-8005 3 J and E-8005 4 JOpening widths 95-80 mm: Combination tips E-8005 5 J and E-8005 6 J Technical features:Net weight [kg]: 0,113 kgREACH: compliantDesign non-sparking: NoVDE certified: NoGedore Code-Number: 5703540EAN: 4010886570357
Gedore E 8005 5 J Spare tip 5 J Gedore E 8005 5 J Spare tip 5 J Features:Selection guide: The spacing of holes for non-tensioned circlips is normally between 80 mm and 140 mmThe tips used to spread the rings are fitted to match the opening width of the non-tensioned circlipOpening widths 140-125 mm: Combination tips E-8005 1 J and E-8005 2 JOpening widths 125-110 mm: Combination tips E-8005 1 J and E-8005 4 JOpening widths 110-95 mm: Combination tips E-8005 3 J and E-8005 4 JOpening widths 95-80 mm: Combination tips E-8005 5 J and E-8005 6 J Technical features:Net weight [kg]: 0,116 kgREACH: compliantDesign non-sparking: NoVDE certified: NoGedore Code-Number: 5703620EAN: 4010886570364
Gedore E 8005 6 J Spare tip 6 J Gedore E 8005 6 J Spare tip 6 J Features:Selection guide: The spacing of holes for non-tensioned circlips is normally between 80 mm and 140 mmThe tips used to spread the rings are fitted to match the opening width of the non-tensioned circlipOpening widths 140-125 mm: Combination tips E-8005 1 J and E-8005 2 JOpening widths 125-110 mm: Combination tips E-8005 1 J and E-8005 4 JOpening widths 110-95 mm: Combination tips E-8005 3 J and E-8005 4 JOpening widths 95-80 mm: Combination tips E-8005 5 J and E-8005 6 J Technical features:Net weight [kg]: 0,116 kgREACH: compliantDesign non-sparking: NoVDE certified: NoGedore Code-Number: 5703970EAN: 4010886570395
