Accessories for Drilling Units

Accessories for Drilling Units

Filter
Proxxon 20000 Mill/drill unit BFB 2000
Proxxon 20000 Mill/drill unit BFB 2000
PROXXONcolor> 20000 Mill/drill unit BFB 2000 Features: For standard drills with 43mm spindle neck Head tilts through 90°, thus offering a multitude of capabilities: Diagonal drilling, versatile milling without need of special milling bits, milling of diagonal slots Fine feed selectable allowing fine head feed for milling With dial and depth scale Geared rack and pinion feed for effortless drilling 45mm diameter drill column, 500mm long. Approx. 140mm throat (column outside to tool centre). 65mm stroke Plane-milled, solid base plate approx. 200 x 200mm with two continuous MICROMOT standard T-slots (12 x 6 x 5mm) Easy clamping of all common drills with standard 43mm spindle collar Weight approx. 6.5kg

€189.95*
Prices incl. VAT plus shipping costs
Proxxon 20150 Die-cast aluminium compound table
Proxxon 20150 Die-cast aluminium compound table
PROXXONcolor> 20150 Die-cast aluminium compound table KT 150 Features: With precision milled dovetail slides, thus also suitable for metal work For routing, milling, slotting of steel, non-ferrous metals, plastics and wood Each slide provided with locking screws With re-adjustable dovetail guides to eliminate play Feed adjustment by means of 2 handwheels with graduated, zero-adjustable dials (1 revolution = 2mm feed, 1 graduation = 0.05mm feed) Plane-milled table Three continuous MICROMOT standard T-slots (12 x 6 x 5mm) Fence with predrilled positioning holes, fastening screws A practical screw clamp used when routing Table 200 x 200mm Maximum travel 150 x 150mm Overall height 75mm Weight 4.9kg The step clamps depicted on the right are not included in the scope of delivery

€164.95*
Prices incl. VAT plus shipping costs
Proxxon 20165 Mill/drill system BFW 40/E
Proxxon 20165 Mill/drill system BFW 40/E
PROXXONcolor> 20165 Mill/drill system BFW 40/E Features: With controller for speeds of 900 - 6,000rpm The triple ball bearing armature provides direct drive (no gearing) Die-cast aluminium head with spindle neck of 43mm (European standard) Large, easy to use switch with emergency function Chart indicates optimum speeds for milling and drilling of various materials Technical data: Control unit with full wave electronics for 220 - 240V, 40VDC secondary voltage Power consumption up to max. 250W Spindle speed infinitely variable between 900 and 6,000rpm Complete with triple slit, hardened collets covering 2.35 - 3.0 - 3.2 - 4.0 - 5.0 and 6.0mm as well as 2 spanners

€217.95*
Prices incl. VAT plus shipping costs

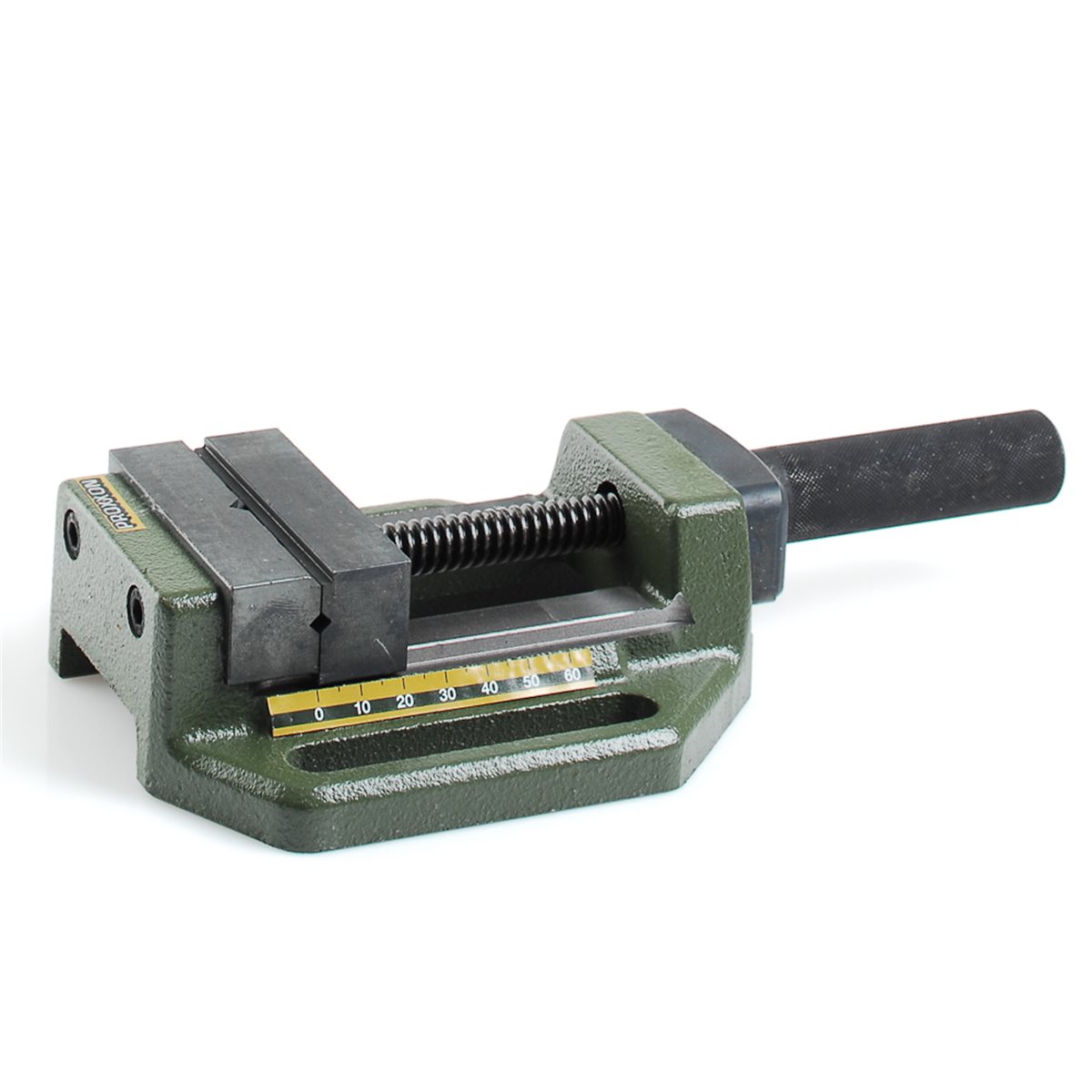

Proxxon 20392 Precision machine vices, PRIMUS 75
Proxxon 20392 Precision machine vices, PRIMUS 75
PROXXONcolor> 20392 Precision machine vices, PRIMUS 75 Ease of operation. With precise jaw guide: Features: Base body made of special cast iron with CNC-machined guides Interchangeable gripping jaws Flat-milled working surface Spindles with rolled trapezoid thread for ease of operation even during high axial load Width of jaws 75mm Jaw opening 65mm Distance from long slot centre to long slot centre 100mm Long slots 80 x 11mm Weight 2.5kg

€49.95*
Prices incl. VAT plus shipping costs
Proxxon 20394 T-nut set for PRIMUS vices
Proxxon 20394 T-nut set for PRIMUS vices
PROXXONcolor> 20394 T-nut set for PRIMUS vices Features: 2 T-nuts, screws and the necessary accessories For fixing to the drill tables of: BFB 2000, KT 150 and bench drill press TBH

€9.25*
Prices incl. VAT plus shipping costs
Proxxon 20402 Precision machine vices, PRIMUS 100
Proxxon 20402 Precision machine vices, PRIMUS 100
PROXXONcolor> 20402 Precision machine vices, PRIMUS 100 Ease of operation. With precise jaw guide: Features: Width of jaws 100mm Jaw opening 75mm Distance from long slot centre to long slot centre 135mm Long slots 105 x 15mm Weight 5.0kg Other details as for the PRIMUS 75

€66.95*
Prices incl. VAT plus shipping costs
