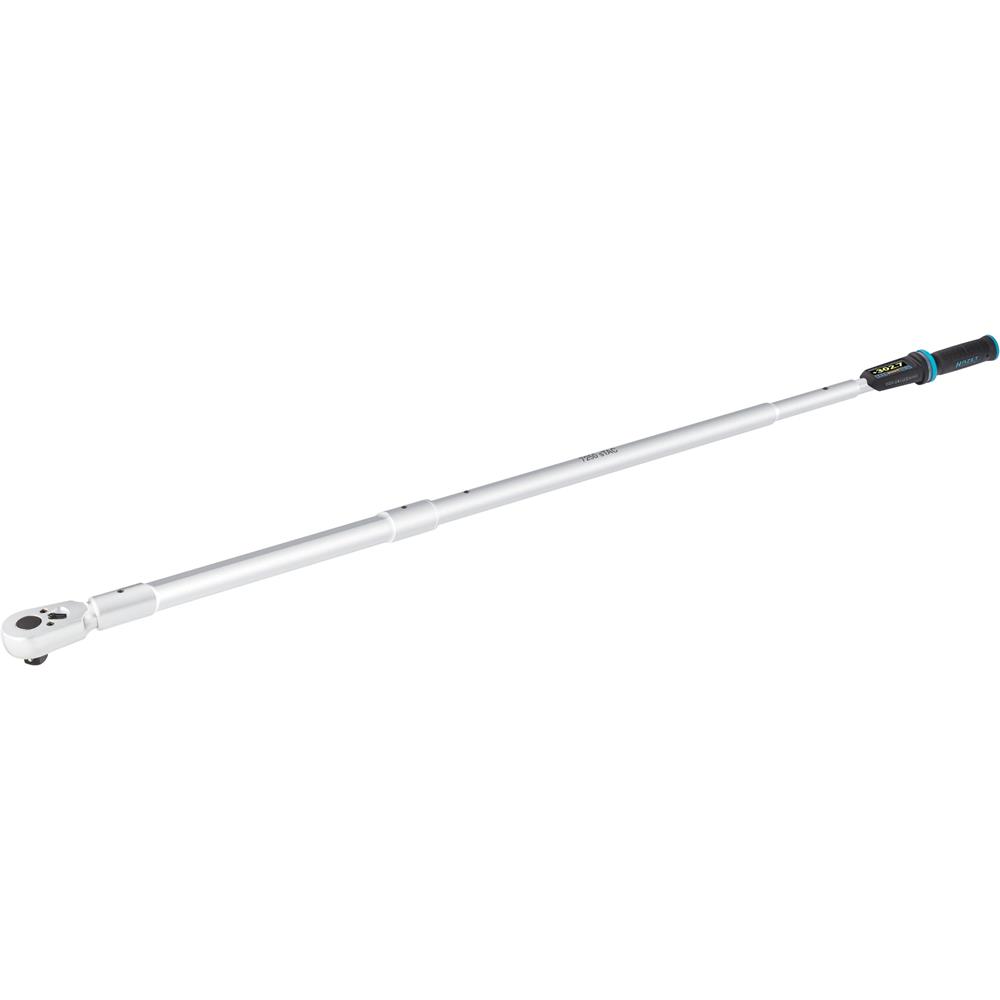

Hazet 7250-2stac Torque wrench with built-in angle gauge, electronic · SmartTAC SYSTEM · 200-1000 Nm 3/4" SmartTAC SYSTEM 7000 sTAC For high-precision screw connections with torque/rotation angle calling for high accuracy or mandatory documentation, e.g. engine components especially cylinder head bolts, machine construction with increased requirements (including robot technology etc.)   Features: Smart technology - Ready for Industry 4.0 Integrated reversible ratchet 20 mm = 3/4" HAZET Smart Technology consisting of the optional smartTAC app and Bluetooth Low Energy interface (may be subject to national approval restrictions) with flawless live data exchange to display the screwing process on mobile end devices such as smartphones (Smartwatch) and tablet PCs as well as via a USB-C interface for programming the torque wrench with built-in angle gauge and documentation of the screwing data via laptop and PC All sTAC torque wrenches can also be used autonomously, without SmartTAC app Unique ergonomic, user-oriented HAZET design of entire tool for professional use The reduction in size and integration of the PCB into the main pipe, results in dimensions that allow for the small torque wrench with built-in angle gauge from 1 Nm Protection class IP 40 Spray-water-proof display and membrane keyboard Tested in accordance with DIN EN ISO 6789-2:2017 USB-C interface for programming torque wrenches with built-in angle gauge and for documentation of the screwing data via laptop and PC Including standard replaceable Li ion rechargeable battery, type 14650 / 3,7 Volt, can be charged directly on the tool via USB-C connector Including 1 metre USB 3.1 / A-C cable   Functions: 7000-2 sTAC Large, high-contrast illuminated, easily readable OLED display, dimmable and 180° rotatable Indication of the measuring values in 13 mm font size, including a rating of the screw-joint (OK / not OK) Display deviation in right and left torque: from ±1% / ±1 digit Display deviation in right and left rotation angle: ±1% / ±1° Rotation angle range adding: 0 to 999° Torque tolerance for OK display (green): adjustable ±1 to 10% Rotation angle tolerance for OK display (green): adjustable 1 to 90° Choice of torque measuring units: Nm, lbf ft, lbf in or kgf m Lets you select or program the effective length for other insert tools from 0 to 250 m (requirement for correct torque / rotation angle measurements) Four signals alert the user during screwing process: audible signal (buzzer), vibration signal, synchronous numerical display, and a 360° LED display with "traffic light function" that is visible from all around Threshold value, pre-warning level: adjustable 50 to 99% Adjustable signaling, On/Off audible signal (buzzer) and vibration Reset function, restore to factory setting Stand-by time: adjustable 1 to 10 min. Indication of battery condition and memory Memory capacity, including date and time: up to 3000 measurements Offers possibility to program flow charts and sets of parameters: 25 and 25 2 control functions: programmable torque control for angle tightening and angle control for torque tightening Menu locking against unintentional change, four-digit code is personally selected Display of the software version with serial numbers, calibration date and service display / usage counter Menu languages: German, English, French, Italian, Chinese Optional on request: Programming and evaluation software for laptop and PC SmartTAC app for Android end devices In preparation: SmartTAC app for IOS (Apple) end devices, data exchange via WLAN RFID chip for code identification The HAZET SmartTAC torque wrenches with built-in angle gauge with Bluetooth interface have valid radio approval in all EU countries, in Switzerland and in Norway and may be sold there. Radio licences for China, India, Mexico, South Africa, South Korea and Turkey are currently in preparation. Other countries on request. For all other countries without radio licences, it is possible to purchase SmartTAC torque wrenches without a Bluetooth interface. These can be connected to a laptop and PC via a USB port and to the optional programming and evaluation software. It is not possible to use the SmartTAC app for mobile devices due to the lack of a Bluetooth interface. Release accuracy tolerance according to ISO 6789-2:2017 Made in Germany Total length: 1772 mm Output: Square, solid 20 mm (3/4 inch) Net weight: 8.4 kg   Technical data: Actuating force min.-max. kg : 12.2 - 60.8 Battery name : 3.7 V Lithium ion rechargeable battery, type 14650, replaceable lbf min-max : 150 - 750 Length : 1772 mm Net weight : 8.4 kg Nm min-max : 200 - 1000 Number of batteries : 1 Number of teeth : 32 Zähne Opening angle : 11.25 ° Output : Square, solid 20 mm = 3/4″ Standard : Release accuracy tolerance according to ISO 6789-2:2017 Tightening torque max. : 1000 Nm Tolerance : 1 % Torque max lbf.ft : 750 lbf.ft Torque min lbf.ft : 150 lbf.ft Torque min Nm : 200 Nm Total length : 1772 mm

Hazet 7280-2sTAC Torque wrench w. built-in angle gauge electronic · SmartTAC SYSTEM 7000 sTAC · 1-10Nm For high-precision screw connections with torque/rotation angle calling for high accuracy or mandatory documentation, e.g. engine components especially cylinder head bolts, machine construction with increased requirements (including robot technology etc.)    Features: Smart technology - Ready for Industry 4.0 Delivery includes insert reversible ratchet 6401-1 square 6.3 = 1/4" Length with / without insert tool: 290.5 mm / 260 mm HAZET Smart Technology consisting of the optional smartTAC app and Bluetooth Low Energy interface (may be subject to national approval restrictions) with flawless live data exchange to display the screwing process on mobile end devices such as smartphones (Smartwatch) and tablet PCs as well as via a USB-C interface for programming the torque wrench with built-in angle gauge and documentation of the screwing data via laptop and PC All sTAC torque wrenches can also be used autonomously, without SmartTAC app Unique ergonomic, user-oriented HAZET design of entire tool for professional use The reduction in size and integration of the PCB into the main pipe, results in dimensions that allow for the small torque wrench with built-in angle gauge from 1 Nm Protection class IP 40 Spray-water-proof display and membrane keyboard Tested in accordance with DIN EN ISO 6789-2:2017 USB-C interface for programming torque wrenches with built-in angle gauge and for documentation of the screwing data via laptop and PC Including standard replaceable Li ion rechargeable battery, type 14650 / 3,7 Volt, can be charged directly on the tool via USB-C connector Including 1 metre USB 3.1 / A-C cable    Functions: 7000-2 sTAC Large, high-contrast illuminated, easily readable OLED display, dimmable and 180° rotatable Indication of the measuring values in 13 mm font size, including a rating of the screw-joint (OK / not OK) Display deviation in right and left torque: from ±1% / ±1 digit Display deviation in right and left rotation angle: ±1% / ±1° Rotation angle range adding: 0 to 999° Torque tolerance for OK display (green): adjustable ±1 to 10% Rotation angle tolerance for OK display (green): adjustable 1 to 90° Choice of torque measuring units: Nm, lbf ft, lbf in or kgf m Lets you select or program the effective length for other insert tools from 0 to 250 m (requirement for correct torque / rotation angle measurements) Four signals alert the user during screwing process: audible signal (buzzer), vibration signal, synchronous numerical display, and a 360° LED display with "traffic light function" that is visible from all around Threshold value, pre-warning level: adjustable 50 to 99% Adjustable signaling, On/Off audible signal (buzzer) and vibration Reset function, restore to factory setting Stand-by time: adjustable 1 to 10 min. Indication of battery condition and memory Memory capacity, including date and time: up to 3000 measurements Offers possibility to program flow charts and sets of parameters: 25 and 25 2 control functions: programmable torque control for angle tightening and angle control for torque tightening Menu locking against unintentional change, four-digit code is personally selected Display of the software version with serial numbers, calibration date and service display / usage counter Menu languages: German, English, French, Italian, Chinese Optional on request: Programming and evaluation software for laptop and PC SmartTAC app for Android end devices In preparation: SmartTAC app for IOS (Apple) end devices, data exchange via WLAN RFID chip for code identification The HAZET SmartTAC torque wrenches with built-in angle gauge with Bluetooth interface have valid radio approval in all EU countries, in Switzerland and in Norway and may be sold there. Radio licences for China, India, Mexico, South Africa, South Korea and Turkey are currently in preparation. Other countries on request. For all other countries without radio licences, it is possible to purchase SmartTAC torque wrenches without a Bluetooth interface. These can be connected to a laptop and PC via a USB port and to the optional programming and evaluation software. It is not possible to use the SmartTAC app for mobile devices due to the lack of a Bluetooth interface. Release accuracy tolerance according to ISO 6789-2:2017 Made in Germany Total length: 260 mm Output: Insert square 9 x 12 mm, Square, solid 6.3 mm (1/4 inch) Net weight: 0.48 kg    Technical data: Actuating force min.-max. kg : 0.5 - 4.6 Battery name : 3.7 V Lithium ion rechargeable battery, type 14650, replaceable Effective torque wrench length min. I1 mm : 203 mm lbf min-max : 0.75 - 7.5 Length : 260 mm Net weight : 0.48 kg Nm min-max : 1 - 10 Number of batteries : 1 Number of teeth : 20 Zähne Opening angle : 18 ° Output : Insert square 9 x 12 mm, square 6,3 = 1/4″ Standard : Release accuracy tolerance according to ISO 6789-2:2017 Tightening torque max. : 10 Nm Tolerance : 2 % Torque max lbf.ft : 7.5 lbf.ft Torque min lbf.ft : 0.75 lbf.ft Torque min Nm : 1 Nm Total length : 260 mm

Hazet 7281-2STAC Torque wrench with built-in angle gauge, electronic 2,5-25 Nm 9x12 mm For high-precision screw connections with torque/rotation angle calling for high accuracy or mandatory documentation, e.g. engine components especially cylinder head bolts, machine construction with increased requirements (including robot technology etc.)   Features: Smart technology - Ready for Industry 4.0 Delivery includes insert reversible ratchet 6401-1, 6.3 = 1/4" Length with / without insert tool: 290.5 mm / 260 mm HAZET Smart Technology consisting of the optional smartTAC app and Bluetooth Low Energy interface (may be subject to national approval restrictions) with flawless live data exchange to display the screwing process on mobile end devices such as smartphones (Smartwatch) and tablet PCs as well as via a USB-C interface for programming the torque wrench with built-in angle gauge and documentation of the screwing data via laptop and PC All sTAC torque wrenches can also be used autonomously, without SmartTAC app Unique ergonomic, user-oriented HAZET design of entire tool for professional use The reduction in size and integration of the PCB into the main pipe, results in dimensions that allow for the small torque wrench with built-in angle gauge from 1 Nm Protection class IP 40 Spray-water-proof display and membrane keyboard Tested in accordance with DIN EN ISO 6789-2:2017 USB-C interface for programming torque wrenches with built-in angle gauge and for documentation of the screwing data via laptop and PC Including standard replaceable Li ion rechargeable battery, type 14650 / 3,7 Volt, can be charged directly on the tool via USB-C connector Including 1 metre USB 3.1 / A-C cable Functions: 7000-2 sTAC: Large, high-contrast illuminated, easily readable OLED display, dimmable and 180° rotatable Indication of the measuring values in 13 mm font size, including a rating of the screw-joint (OK / not OK) Display deviation in right and left torque: from ±1% / ±1 digit Display deviation in right and left rotation angle: ±1% / ±1° Rotation angle range adding: 0 to 999° Torque tolerance for OK display (green): adjustable ±1 to 10% Rotation angle tolerance for OK display (green): adjustable 1 to 90° Choice of torque measuring units: Nm, lbf ft, lbf in or kgf m Lets you select or program the effective length for other insert tools from 0 to 250 m (requirement for correct torque / rotation angle measurements) Four signals alert the user during screwing process: audible signal (buzzer), vibration signal, synchronous numerical display, and a 360° LED display with "traffic light function" that is visible from all around Threshold value, pre-warning level: adjustable 50 to 99% Adjustable signaling, On/Off audible signal (buzzer) and vibration Reset function, restore to factory setting Stand-by time: adjustable 1 to 10 min. Indication of battery condition and memory Memory capacity, including date and time: up to 3000 measurements Offers possibility to program flow charts and sets of parameters: 25 and 25 2 control functions: programmable torque control for angle tightening and angle control for torque tightening Menu locking against unintentional change, four-digit code is personally selected Display of the software version with serial numbers, calibration date and service display / usage counter Menu languages: German, English, French, Italian, Chinese Optional on request: Programming and evaluation software for laptop and PC SmartTAC app for Android end devices In preparation: SmartTAC app for IOS (Apple) end devices, data exchange via WLAN RFID chip for code identification The HAZET SmartTAC torque wrenches with built-in angle gauge with Bluetooth interface have valid radio approval in all EU countries, in Switzerland and in Norway and may be sold there. Radio licences for China, India, Mexico, South Africa, South Korea and Turkey are currently in preparation. Other countries on request. For all other countries without radio licences, it is possible to purchase SmartTAC torque wrenches without a Bluetooth interface. These can be connected to a laptop and PC via a USB port and to the optional programming and evaluation software. It is not possible to use the SmartTAC app for mobile devices due to the lack of a Bluetooth interface. Release accuracy tolerance according to ISO 6789-2:2017 Made in Germany Total length: 260 mm Output: Insert square 9 x 12 mm, Square, solid 6.3 mm (1/4 inch) Net weight: 0.48 kg   Technical data: Actuating force min.-max. kg : 1.1 - 11.4 Battery name : 3.7 V Lithium ion rechargeable battery, type 14650, replaceable Effective torque wrench length min. I1 mm : 203 mm lbf min-max : 1.85 - 18.5 Length : 260 mm Net weight : 0.48 kg Nm min-max : 2.5 - 25 Number of batteries : 1 Number of teeth : 20 Zähne Opening angle : 18 ° Output : Insert square 9 x 12 mm, 6,3 = 1/4" Standard : Release accuracy tolerance according to ISO 6789-2:2017 Tightening torque max. : 25 Nm Tolerance : 2 % Torque max lbf.ft : 18.5 lbf.ft Torque min lbf.ft : 1.85 lbf.ft Torque min Nm : 2.5 Nm Total length : 260

Hazet 7290-2STAC Torque wrench with built-in angle gauge, electronic 5-60 Nm, 3/8" 9x12 mm For high-precision screw connections with torque/rotation angle calling for high accuracy or mandatory documentation, e.g. engine components especially cylinder head bolts, machine construction with increased requirements (including robot technology etc.)   Features: Smart technology - Ready for Industry 4.0 Delivery includes insert reversible ratchet 6402-1, 10 mm = 3/8" Length with / without insert tool: 347 mm / 302 mm HAZET Smart Technology consisting of the optional smartTAC app and Bluetooth Low Energy interface (may be subject to national approval restrictions) with flawless live data exchange to display the screwing process on mobile end devices such as smartphones (Smartwatch) and tablet PCs as well as via a USB-C interface for programming the torque wrench with built-in angle gauge and documentation of the screwing data via laptop and PC All sTAC torque wrenches can also be used autonomously, without SmartTAC app Unique ergonomic, user-oriented HAZET design of entire tool for professional use The reduction in size and integration of the PCB into the main pipe, results in dimensions that allow for the small torque wrench with built-in angle gauge from 1 Nm Protection class IP 40 Spray-water-proof display and membrane keyboard Tested in accordance with DIN EN ISO 6789-2:2017 USB-C interface for programming torque wrenches with built-in angle gauge and for documentation of the screwing data via laptop and PC Including standard replaceable Li ion rechargeable battery, type 14650 / 3,7 Volt, can be charged directly on the tool via USB-C connector Including 1 metre USB 3.1 / A-C cable Functions 7000-2 sTAC: Large, high-contrast illuminated, easily readable OLED display, dimmable and 180° rotatable Indication of the measuring values in 13 mm font size, including a rating of the screw-joint (OK / not OK) Display deviation in right and left torque: from ±1% / ±1 digit Display deviation in right and left rotation angle: ±1% / ±1° Rotation angle range adding: 0 to 999° Torque tolerance for OK display (green): adjustable ±1 to 10% Rotation angle tolerance for OK display (green): adjustable 1 to 90° Choice of torque measuring units: Nm, lbf ft, lbf in or kgf m Lets you select or program the effective length for other insert tools from 0 to 250 m (requirement for correct torque / rotation angle measurements) Four signals alert the user during screwing process: audible signal (buzzer), vibration signal, synchronous numerical display, and a 360° LED display with "traffic light function" that is visible from all around Threshold value, pre-warning level: adjustable 50 to 99% Adjustable signaling, On/Off audible signal (buzzer) and vibration Reset function, restore to factory setting Stand-by time: adjustable 1 to 10 min. Indication of battery condition and memory Memory capacity, including date and time: up to 3000 measurements Offers possibility to program flow charts and sets of parameters: 25 and 25 2 control functions: programmable torque control for angle tightening and angle control for torque tightening Menu locking against unintentional change, four-digit code is personally selected Display of the software version with serial numbers, calibration date and service display / usage counter Menu languages: German, English, French, Italian, Chinese Optional on request: Programming and evaluation software for laptop and PC SmartTAC app for Android end devices In preparation: SmartTAC app for IOS (Apple) end devices, data exchange via WLAN RFID chip for code identification The HAZET SmartTAC torque wrenches with built-in angle gauge with Bluetooth interface have valid radio approval in all EU countries, in Switzerland and in Norway and may be sold there. Radio licences for China, India, Mexico, South Africa, South Korea and Turkey are currently in preparation. Other countries on request. For all other countries without radio licences, it is possible to purchase SmartTAC torque wrenches without a Bluetooth interface. These can be connected to a laptop and PC via a USB port and to the optional programming and evaluation software. It is not possible to use the SmartTAC app for mobile devices due to the lack of a Bluetooth interface. Release accuracy tolerance according to ISO 6789-2:2017 Made in Germany Total length: 302 mm Output: Insert square 9 x 12 mm, Square, solid 10 mm (3/8 inch) Net weight: 0.64 kg   Technical data: Actuating force min.-max. kg : 1.8 - 22.2 Battery name : 3.7 V Lithium ion rechargeable battery, type 14650, replaceable Effective torque wrench length min. I1 mm : 248 mm lbf min-max : 3.5 - 44 Length : 302 mm Net weight : 0.64 kg Nm min-max : 5 - 60 Number of batteries : 1 Number of teeth : 30 Zähne Opening angle : 12 ° Output : Insert square 9 x 12 mm, Square, solid 10 mm (3/8 inch) Standard : Release accuracy tolerance according to ISO 6789-2:2017 Tightening torque max. : 60 Nm Tolerance : 1 % Torque max lbf.ft : 44 lbf.ft Torque min lbf.ft : 3.5 lbf.ft Torque min Nm : 5 Nm Total length : 302 mm

Hazet 7291-2STAC Torque wrench with built-in angle gauge, electronic SmartTac 10-100 Nm 3/8" 9x12mm For high-precision screw connections with torque/rotation angle calling for high accuracy or mandatory documentation, e.g. engine components especially cylinder head bolts, machine construction with increased requirements (including robot technology etc.)   Features: Smart technology - Ready for Industry 4.0 Delivery includes insert reversible ratchet 6402-1, 10 = 3/8" Length with / without insert tool: 428 mm / 383 mm HAZET Smart Technology consisting of the optional smartTAC app and Bluetooth Low Energy interface (may be subject to national approval restrictions) with flawless live data exchange to display the screwing process on mobile end devices such as smartphones (Smartwatch) and tablet PCs as well as via a USB-C interface for programming the torque wrench with built-in angle gauge and documentation of the screwing data via laptop and PC All sTAC torque wrenches can also be used autonomously, without SmartTAC app Unique ergonomic, user-oriented HAZET design of entire tool for professional use The reduction in size and integration of the PCB into the main pipe, results in dimensions that allow for the small torque wrench with built-in angle gauge from 1 Nm Protection class IP 40 Spray-water-proof display and membrane keyboard Tested in accordance with DIN EN ISO 6789-2:2017 USB-C interface for programming torque wrenches with built-in angle gauge and for documentation of the screwing data via laptop and PC Including standard replaceable Li ion rechargeable battery, type 14650 / 3,7 Volt, can be charged directly on the tool via USB-C connector Including 1 metre USB 3.1 / A-C cable   Functions 7000-2 sTAC: Large, high-contrast illuminated, easily readable OLED display, dimmable and 180° rotatable Indication of the measuring values in 13 mm font size, including a rating of the screw-joint (OK / not OK) Display deviation in right and left torque: from ±1% / ±1 digit Display deviation in right and left rotation angle: ±1% / ±1° Rotation angle range adding: 0 to 999° Torque tolerance for OK display (green): adjustable ±1 to 10% Rotation angle tolerance for OK display (green): adjustable 1 to 90° Choice of torque measuring units: Nm, lbf ft, lbf in or kgf m Lets you select or program the effective length for other insert tools from 0 to 250 m (requirement for correct torque / rotation angle measurements) Four signals alert the user during screwing process: audible signal (buzzer), vibration signal, synchronous numerical display, and a 360° LED display with "traffic light function" that is visible from all around Threshold value, pre-warning level: adjustable 50 to 99% Adjustable signaling, On/Off audible signal (buzzer) and vibration Reset function, restore to factory setting Stand-by time: adjustable 1 to 10 min. Indication of battery condition and memory Memory capacity, including date and time: up to 3000 measurements Offers possibility to program flow charts and sets of parameters: 25 and 25 2 control functions: programmable torque control for angle tightening and angle control for torque tightening Menu locking against unintentional change, four-digit code is personally selected Display of the software version with serial numbers, calibration date and service display / usage counter Menu languages: German, English, French, Italian, Chinese Optional on request: Programming and evaluation software for laptop and PC SmartTAC app for Android end devices In preparation: SmartTAC app for IOS (Apple) end devices, data exchange via WLAN RFID chip for code identification The HAZET SmartTAC torque wrenches with built-in angle gauge with Bluetooth interface have valid radio approval in all EU countries, in Switzerland and in Norway and may be sold there. Radio licences for China, India, Mexico, South Africa, South Korea and Turkey are currently in preparation. Other countries on request. For all other countries without radio licences, it is possible to purchase SmartTAC torque wrenches without a Bluetooth interface. These can be connected to a laptop and PC via a USB port and to the optional programming and evaluation software. It is not possible to use the SmartTAC app for mobile devices due to the lack of a Bluetooth interface. Release accuracy tolerance according to ISO 6789-2:2017 Made in Germany Total length: 383 mm Output: Insert square 9 x 12 mm, Square, solid 10 mm (3/8 inch) Net weight: 0.72 kg   Technical data: Actuating force min.-max. kg : 2.9 - 28.7 Battery name : 3.7 V Lithium ion rechargeable battery, type 14650, replaceable Effective torque wrench length min. I1 mm : 327 mm lbf min-max : 7.5 - 75 Length : 383 mm Net weight : 0.72 kg Nm min-max : 10 - 100 Number of batteries : 1 Number of teeth : 30 Zähne Opening angle : 12 ° Output : Insert square 9 x 12 mm, Square, solid 10 mm (3/8 inch) Standard : Release accuracy tolerance according to ISO 6789-2:2017 Tightening torque max. : 100 Nm Tolerance : 1 % Torque max lbf.ft : 75 lbf.ft Torque min lbf.ft : 7.5 lbf.ft Torque min Nm : 10 Nm Total length : 383 mm

Hazet 7292-2sTAC Torque wrench with built-in angle gauge, electronic 20-200 Nm, 12,5 = 1/2" 14x18 mm For high-precision screw connections with torque/rotation angle calling for high accuracy or mandatory documentation, e.g. engine components especially cylinder head bolts, machine construction with increased requirements (including robot technology etc.)   Features: Smart technology - Ready for Industry 4.0 Delivery includes insert reversible ratchet 6404-1, 12.5 = 1/2" Length with / without insert tool: 578.5 mm / 520 mm HAZET Smart Technology consisting of the optional smartTAC app and Bluetooth Low Energy interface (may be subject to national approval restrictions) with flawless live data exchange to display the screwing process on mobile end devices such as smartphones (Smartwatch) and tablet PCs as well as via a USB-C interface for programming the torque wrench with built-in angle gauge and documentation of the screwing data via laptop and PC All sTAC torque wrenches can also be used autonomously, without SmartTAC app Unique ergonomic, user-oriented HAZET design of entire tool for professional use The reduction in size and integration of the PCB into the main pipe, results in dimensions that allow for the small torque wrench with built-in angle gauge from 1 Nm Protection class IP 40 Spray-water-proof display and membrane keyboard Tested in accordance with DIN EN ISO 6789-2:2017 USB-C interface for programming torque wrenches with built-in angle gauge and for documentation of the screwing data via laptop and PC Including standard replaceable Li ion rechargeable battery, type 14650 / 3,7 Volt, can be charged directly on the tool via USB-C connector Including 1 metre USB 3.1 / A-C cable Functions 7000-2sTAC: Large, high-contrast illuminated, easily readable OLED display, dimmable and 180° rotatable Indication of the measuring values in 13 mm font size, including a rating of the screw-joint (OK / not OK) Display deviation in right and left torque: from ±1% / ±1 digit Display deviation in right and left rotation angle: ±1% / ±1° Rotation angle range adding: 0 to 999° Torque tolerance for OK display (green): adjustable ±1 to 10% Rotation angle tolerance for OK display (green): adjustable 1 to 90° Choice of torque measuring units: Nm, lbf ft, lbf in or kgf m Lets you select or program the effective length for other insert tools from 0 to 250 m (requirement for correct torque / rotation angle measurements) Four signals alert the user during screwing process: audible signal (buzzer), vibration signal, synchronous numerical display, and a 360° LED display with "traffic light function" that is visible from all around Threshold value, pre-warning level: adjustable 50 to 99% Adjustable signaling, On/Off audible signal (buzzer) and vibration Reset function, restore to factory setting Stand-by time: adjustable 1 to 10 min. Indication of battery condition and memory Memory capacity, including date and time: up to 3000 measurements Offers possibility to program flow charts and sets of parameters: 25 and 25 2 control functions: programmable torque control for angle tightening and angle control for torque tightening Menu locking against unintentional change, four-digit code is personally selected Display of the software version with serial numbers, calibration date and service display / usage counter Menu languages: German, English, French, Italian, Chinese Optional on request: Programming and evaluation software for laptop and PC SmartTAC app for Android end devices In preparation: SmartTAC app for IOS (Apple) end devices, data exchange via WLAN RFID chip for code identification The HAZET SmartTAC torque wrenches with built-in angle gauge with Bluetooth interface have valid radio approval in all EU countries, in Switzerland and in Norway and may be sold there. Radio licences for China, India, Mexico, South Africa, South Korea and Turkey are currently in preparation. Other countries on request. For all other countries without radio licences, it is possible to purchase SmartTAC torque wrenches without a Bluetooth interface. These can be connected to a laptop and PC via a USB port and to the optional programming and evaluation software. It is not possible to use the SmartTAC app for mobile devices due to the lack of a Bluetooth interface. Release accuracy tolerance according to ISO 6789-2:2017 Made in Germany Total length: 520 mm Output: Insert square 14 x 18 mm, Square, solid 12.5 mm (1/2 inch) Net weight: 1.1 kg   Technical data: Actuating force min.-max. kg : 4.1 - 40.7 Battery name : 3.7 V Lithium ion rechargeable battery, type 14650, replaceable Effective torque wrench length min. I1 mm : 464 mm lbf min-max : 15 - 150 Length : 520 mm Net weight : 1.1 kg Nm min-max : 20 - 200 Number of batteries : 1 Number of teeth : 32 Opening angle : 11.25 ° Output : Insert square 14 x 18 mm, 1/2" Standard : Release accuracy tolerance according to ISO 6789-2:2017 Tightening torque max. : 200 Nm Tolerance : 1 % Torque max lbf.ft : 150 lbf.ft Torque min lbf.ft : 15 lbf.ft Torque min Nm : 20 Nm Total length : 520 mm

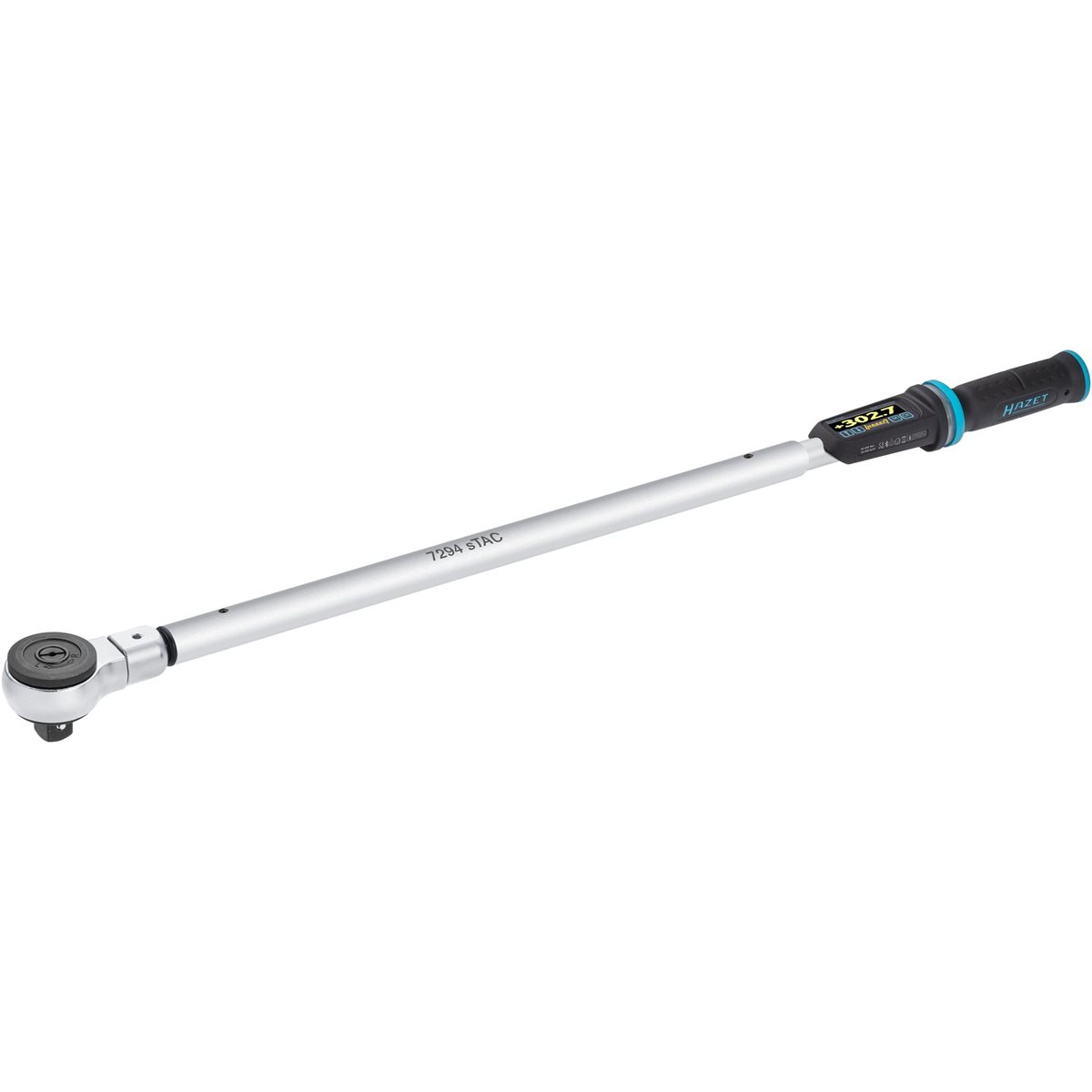

Hazet 7294-2STAC Torque wrench with built-in angle gauge, electronic 40-400 Nm 3/4" For high-precision screw connections with torque/rotation angle calling for high accuracy or mandatory documentation, e.g. engine components especially cylinder head bolts, machine construction with increased requirements (including robot technology etc.)   Features: Smart technology – Ready for Industry 4.0 Delivery includes insert reversible ratchet 6406, Square, solid 20 = 3/4" Length with / without insert tool: 1021 mm / 945 mm HAZET Smart Technology consisting of the optional smartTAC app and Bluetooth Low Energy interface (may be subject to national approval restrictions) with flawless live data exchange to display the screwing process on mobile end devices such as smartphones (Smartwatch) and tablet PCs as well as via a USB-C interface for programming the torque wrench with built-in angle gauge and documentation of the screwing data via laptop and PC?All sTAC torque wrenches can also be used autonomously, without SmartTAC app Unique ergonomic, user-oriented HAZET design of entire tool for professional use The reduction in size and integration of the PCB into the main pipe, results in dimensions that allow for the small torque wrench with built-in angle gauge from 1 Nm Protection class IP 40?Spray-water-proof display and membrane keyboard Tested in accordance with DIN EN ISO 6789-2:2017 USB-C interface for programming torque wrenches with built-in angle gauge and for documentation of the screwing data via laptop and PC Including standard replaceable Li ion rechargeable battery, type 14650 / 3,7 Volt, can be charged directly on the tool via USB-C connector Including 1 metre USB 3.1 / A-C cable Functions 7000-2 sTAC:   Large, high-contrast illuminated, easily readable OLED display, dimmable and 180° rotatable Indication of the measuring values in 13 mm font size, including a rating of the screw-joint (OK / not OK) Display deviation in right and left torque: from ±1% / ±1 digit Display deviation in right and left rotation angle: ±1% / ±1° Rotation angle range adding: 0 to 999° Torque tolerance for OK display (green): adjustable ±1 to 10% Rotation angle tolerance for OK display (green): adjustable 1 to 90° Choice of torque measuring units: Nm, lbf ft, lbf in or kgf m Lets you select or program the effective length for other insert tools from 0 to 250 m?(requirement for correct torque / rotation angle measurements) Four signals alert the user during screwing process: audible signal (buzzer), vibration signal, synchronous numerical display, and a 360° LED display with "traffic light function" that is visible from all around Threshold value, pre-warning level: adjustable 50 to 99% Adjustable signaling, On/Off audible signal (buzzer) and vibration Reset function, restore to factory setting Stand-by time: adjustable 1 to 10 min. Indication of battery condition and memory Memory capacity, including date and time: up to 3000 measurements Offers possibility to program flow charts and sets of parameters: 25 and 25 2 control functions: programmable torque control for angle tightening and angle control for torque tightening Menu locking against unintentional change, four-digit code is personally selected Display of the software version with serial numbers, calibration date and service display / usage counter Menu languages: German, English, French, Italian, Chinese Optional on request: Programming and evaluation software for laptop and PC SmartTAC app for Android end devices In preparation: SmartTAC app for IOS (Apple) end devices, data exchange via WLAN RFID chip for code identification The HAZET SmartTAC torque wrenches with built-in angle gauge with Bluetooth interface have valid radio approval in all EU countries, in Switzerland and in Norway and may be sold there.?Radio licences for China, India, Mexico, South Africa, South Korea and Turkey are currently in preparation.?Other countries on request. For all other countries without radio licences, it is possible to purchase SmartTAC torque wrenches without a Bluetooth interface. These can be connected to a laptop and PC via a USB port and to the optional programming and evaluation software.?It is not possible to use the SmartTAC app for mobile devices due to the lack of a Bluetooth interface. Release accuracy tolerance according to ISO 6789-2:2017 Made in Germany Total length: 945 mm Output: Insert square 14 x 18 mm Net weight: 2.9 kg   Technical data: Actuating force min.-max. kg : 4.4 - 43.8 Battery name : 3.7 V Lithium ion rechargeable battery, type 14650, replaceable Effective torque wrench length min. I1 mm : 889 mm lbf min-max : 30 - 300 Length : 945 mm Net weight : 2.9 kg Nm min-max : 40 - 400 Number of batteries : 1 Number of teeth : 32 Zähne Opening angle : 11.25 ° Output : Insert square 14 x 18 mm Standard : Release accuracy tolerance according to ISO 6789-2:2017 Tightening torque max. : 400 Nm Tolerance : 1 % Torque max lbf.ft : 300 lbf.ft Torque min lbf.ft : 30 lbf.ft Torque min Nm : 40 Nm Total length : 945 mm

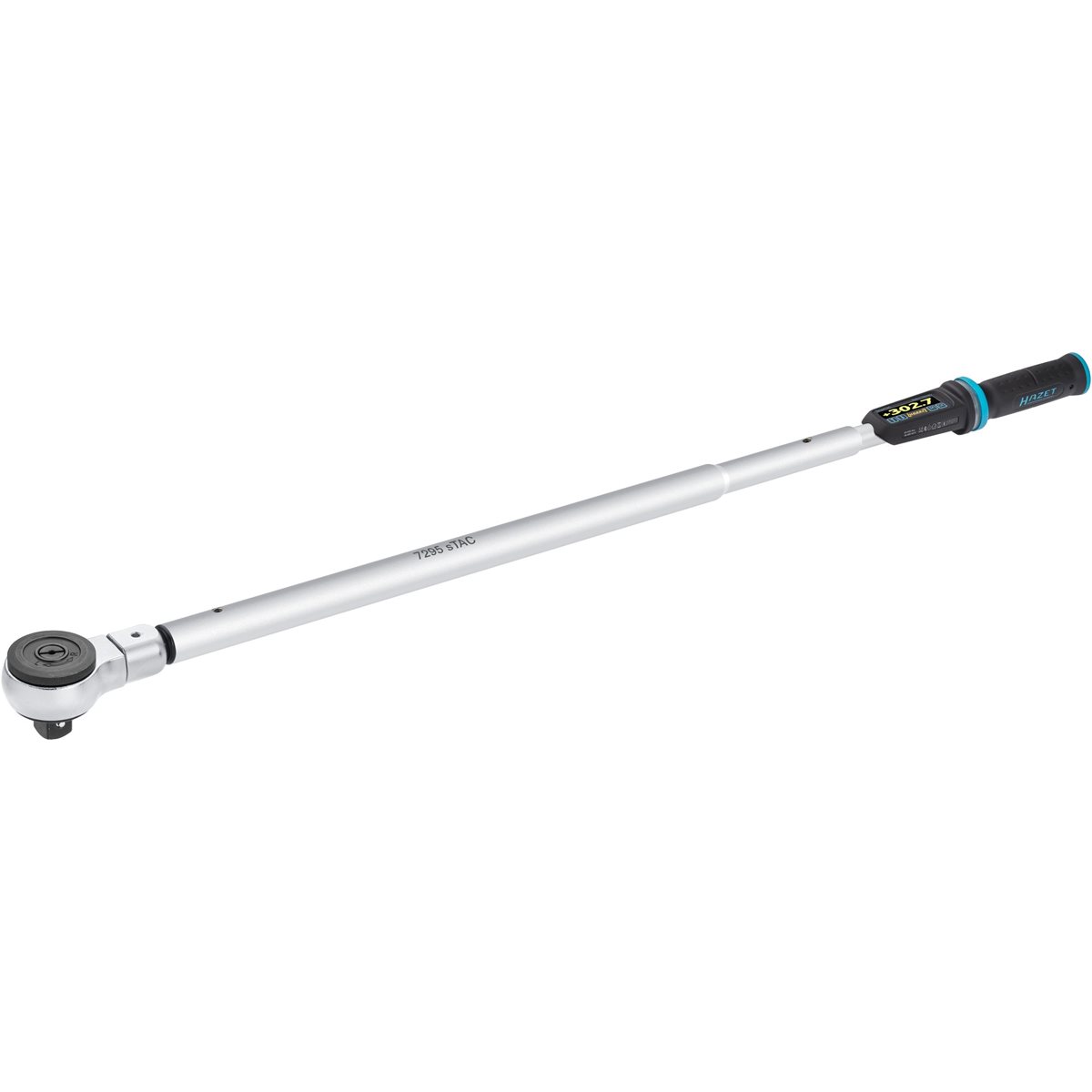

Hazet 7295-2STAC Torque wrench with built-in angle gauge, electronic 3/4" 65-650 Nm 14x18 mm For high-precision screw connections with torque/rotation angle calling for high accuracy or mandatory documentation, e.g. engine components especially cylinder head bolts, machine construction with increased requirements (including robot technology etc.)   Features: Smart technology - Ready for Industry 4.0 Delivery includes insert reversible ratchet 6406, square, solid 20 mm (3/4 inch) Length with / without insert tool: 1217 mm / 1141 mm HAZET Smart Technology consisting of the optional smartTAC app and Bluetooth Low Energy interface (may be subject to national approval restrictions) with flawless live data exchange to display the screwing process on mobile end devices such as smartphones (Smartwatch) and tablet PCs as well as via a USB-C interface for programming the torque wrench with built-in angle gauge and documentation of the screwing data via laptop and PC All sTAC torque wrenches can also be used autonomously, without SmartTAC app Unique ergonomic, user-oriented HAZET design of entire tool for professional use The reduction in size and integration of the PCB into the main pipe, results in dimensions that allow for the small torque wrench with built-in angle gauge from 1 Nm Protection class IP 40 Spray-water-proof display and membrane keyboard Tested in accordance with DIN EN ISO 6789-2:2017 USB-C interface for programming torque wrenches with built-in angle gauge and for documentation of the screwing data via laptop and PC Including standard replaceable Li ion rechargeable battery, type 14650 / 3,7 Volt, can be charged directly on the tool via USB-C connector Including 1 metre USB 3.1 / A-C cable Functions 7000-2 sTAC:   Large, high-contrast illuminated, easily readable OLED display, dimmable and 180° rotatable Indication of the measuring values in 13 mm font size, including a rating of the screw-joint (OK / not OK) Display deviation in right and left torque: from ±1% / ±1 digit Display deviation in right and left rotation angle: ±1% / ±1° Rotation angle range adding: 0 to 999° Torque tolerance for OK display (green): adjustable ±1 to 10% Rotation angle tolerance for OK display (green): adjustable 1 to 90° Choice of torque measuring units: Nm, lbf ft, lbf in or kgf m Lets you select or program the effective length for other insert tools from 0 to 250 m (requirement for correct torque / rotation angle measurements) Four signals alert the user during screwing process: audible signal (buzzer), vibration signal, synchronous numerical display, and a 360° LED display with "traffic light function" that is visible from all around Threshold value, pre-warning level: adjustable 50 to 99% Adjustable signaling, On/Off audible signal (buzzer) and vibration Reset function, restore to factory setting Stand-by time: adjustable 1 to 10 min. Indication of battery condition and memory Memory capacity, including date and time: up to 3000 measurements Offers possibility to program flow charts and sets of parameters: 25 and 25 2 control functions: programmable torque control for angle tightening and angle control for torque tightening Menu locking against unintentional change, four-digit code is personally selected Display of the software version with serial numbers, calibration date and service display / usage counter Menu languages: German, English, French, Italian, Chinese Optional on request: Programming and evaluation software for laptop and PC SmartTAC app for Android end devices In preparation: SmartTAC app for IOS (Apple) end devices, data exchange via WLAN RFID chip for code identification The HAZET SmartTAC torque wrenches with built-in angle gauge with Bluetooth interface have valid radio approval in all EU countries, in Switzerland and in Norway and may be sold there. Radio licences for China, India, Mexico, South Africa, South Korea and Turkey are currently in preparation. Other countries on request. For all other countries without radio licences, it is possible to purchase SmartTAC torque wrenches without a Bluetooth interface. These can be connected to a laptop and PC via a USB port and to the optional programming and evaluation software. It is not possible to use the SmartTAC app for mobile devices due to the lack of a Bluetooth interface. Release accuracy tolerance according to ISO 6789-2:2017 Made in Germany Total length: 1141 mm Output: Insert square 14 x 18 mm, Square, solid 20 mm (3/4 inch) Net weight: 4.6 kg   Technical data: Actuating force min.-max. kg : 5.9 - 58.7 Battery name : 3.7 V Lithium ion rechargeable battery, type 14650, replaceable Effective torque wrench length min. I1 mm : 1085 mm lbf min-max : 48 - 480 Length : 1141 mm Net weight : 4.6 kg Nm min-max : 65 - 650 Number of batteries : 1 Number of teeth : 32 Zähne Opening angle : 11.25 ° Output : Insert square 14 x 18 mm, square, solid 20 mm (3/4") Standard : Release accuracy tolerance according to ISO 6789-2:2017 Tightening torque max. : 650 Nm Tolerance : 1 % Torque max lbf.ft : 480 lbf.ft Torque min lbf.ft : 48 lbf.ft Torque min Nm : 65 Nm Total length : 1141

Stahlwille 701/2 NO BATTERY Electronic torque wrench SENSOTORK Model 701/2 Measuring r. 1-20N·m Drive 1/4 L. 210mm Features:indicatingvery slim and compact designfor low torques in the range from 1 to 20 N-munits of measurement: N-m, cN-m, ft-lb, in-lbMeasurement independent of the point of application of forceErgonomic 2-component handleFully automatic calibration with the perfectControl calibration device no. 7794 or the calibration system no. 7706If necessary, readjustment without dismantling documentation. Readjustment without disassemblyCapable of documentation (with SensoMaster)Certified in accordance with DIN EN ISO 6789-2:2017In a sturdy plastic caseBattery is not includedDisplay deviation ± 4 % Technical features:Scale division in·lb: 9-180 in·lbScale division ft·lb: 0,7-15 ft·lbMeasuring range N·m: 1-20 N·mMeasuring range cN·m: 100-2000 cN·mExternal square drive (inch): 1/4 Width mm (b): 22,6 mmDIN: DIN EN ISO 6789-2:2017 Weight with box: 700 gHeight mm (h1): 26 mmHeight mm (h2): 10 mmLength mm (L): 210 mmLF: 160 mmMA N·m: 1 N·mNominal value N·m: 20 N·mWeight: 132 gWeigth kg: 0.710 kgStahlwille 701/2 NO BATTERYStahlwille product no: 96504602EAN: 4018754280919
