7452 Pair of Electrodes 7401-7404 Features: 12 mm Cranked

7406 Pair of Arms with Electrodes Features: 350 mm cranked

7404 Pair of Arms with Electrodes Features: Position: just 500 mm

     Pair of Arms, 500 mm, cranked with Electrodes Technical Data: Length: 500 mm Height: 220 mm Arm diameter: 20 mm Capacity: 18 mm With this pair of arms smaller rear plates may be encompassed!

7401 Pair of arms with electrodes Features: Pair of arms with electrodes Position: just 125 mm

7402 Pair of Arms with Electrodes Features: Pair of Arms, 250 mm Position: just

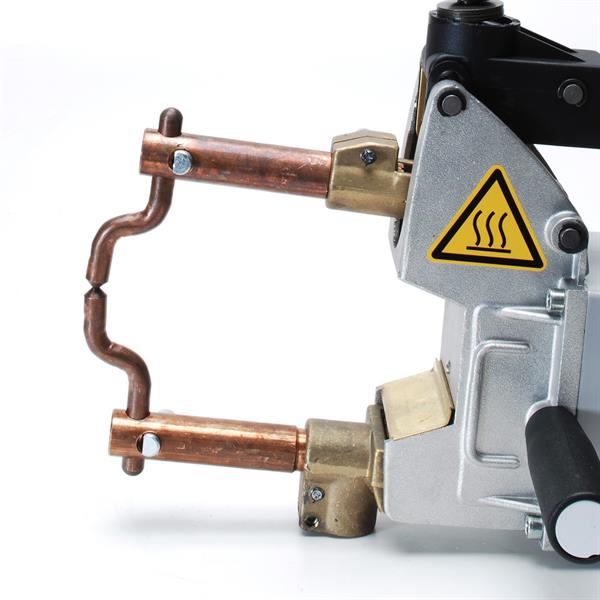

Portable Spot Welders, Pair of Electrodes Features: cranked For the usage of standard arms with electrodes 10 mm.

    Portable spot welders 7900 with Timer Features: Light and proved spot gun for car body repair. Synchronous built-in electronic timer with SCR from 2 to 65 cycles. Compensation circuit starts the timer only when there is a proper passage of current, which enables to perform on oxidised sheets, on surfaces with paint residues or on black sheets. Force adjustment with scale in daN. Additional arm couplings to provide larger opening between arms. All transformer are coated with F class insulation material that does not dry out and become brittle. Test are made using 4000 volts. Supplied complete with 125 mm arms. Large choice of arms and electrodes. Technical Data: Supply voltage: 400 V Delayed Fuses: 16 A Nominal power at 50 %: 2 kVA Welding max.: 2,0 + 2,0 mm 0,8 + 0,8 mm: 380/h Short circuit current: 7200 A Standard pair of electrodes: 125 mm

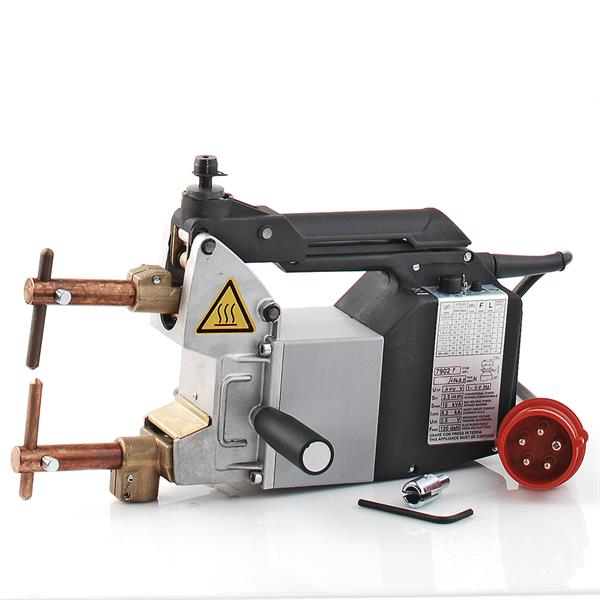

Spot welders 7902P with timer and pulser for galvanized sheet metal Power control + Pulse device Genuine professional version! With this spot welder not only the actual welding time, but also the performance can be adapted to work. It is especially useful when processing thin sheets, to reduce the performance and extend the welding time, so that the sheet will not be damaged during welding. The pulse device provides relatively slow heating of the material, especially when processing galvanized sheets it is useful, as annoying splashes are massively reduced by evaporation of zinc. The welding machine is useful for the professional body repair and production tasks. Special emphasis was placed on ease of use. Through a patented leverage on the operating handle very large forces of electrodes are transmitted at minimal effort. Such an electrode force can be set directly on the handle of a scale to 120 daN. All models have an electronic welding time control, which only triggers when the set point on the welding current flows. There are consistently good results being achieved for sheet metal with old paint or galvanizing. Technical Data: Supply: 400 V Fuse: 16 A Rated Output: 2,5 kVA (50 % ED) Maximum sheet thickness: 2,5 + 2,5 mm Number of points at 0,8 + 0,8 mm: 380/h Short circuit current: 8200 A Standard pair of electrodes: 125 mm Electrode sharpener included Recommended accessories: Welding primer Pair of arms for wheel arches Cranked pair of arms 500 mm

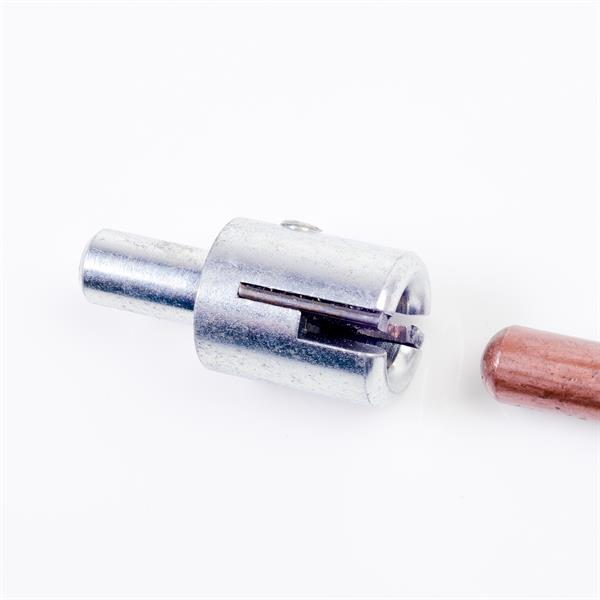

sharpener for spot-welding electrodes use with drill for electrodes 10-12 mm (delivery without the electrode)

Welding Primer Features: 500 ml Can is applied between overlapping sheets prevents rust reliably substantially more durable than any zinc spray   Usage instructions: With the spot welding gun there need to be ensured that the primer is still wet when welding, otherwise a safe power transfer is not guaranteed. The primer burns at the welding point. Outside of this point, the material is soft at first by the heat and then sealed by capillary action. Ideal for spots, where using a subsequent sealer is not possible anymore! Recommended by most vehicle manufacturers.
