Compac 2T-C Jack 2 t

€419.00*

Content: 1 pcs

Prices incl. VAT plus shipping costs

Delivery time 10 working days

Variante

Stk

Product number: 1902150

Manufacturer no.: 2T-C

EAN: 5713884112510

Weight in kg: 41

Product information "Compac 2T-C Jack 2 t "

Compac 2T-C Jack, 2 Ton Short

Features:

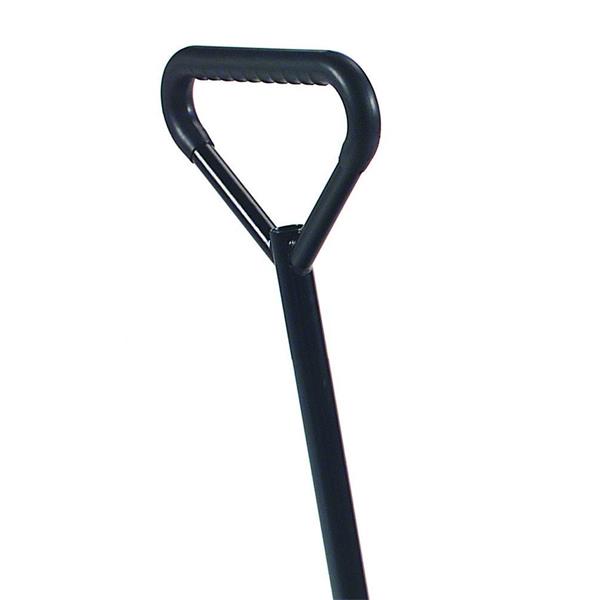

Ergonomically designed handle. Rubber coated.

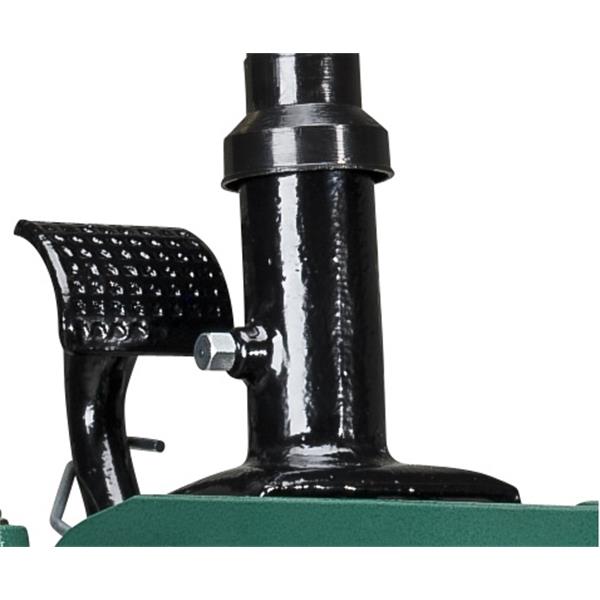

Quick-approach foot pedal.
Built-in safety lowering control valve for safe lowering even under maximum load.
Built-in pressure relief valveprevents overloading.

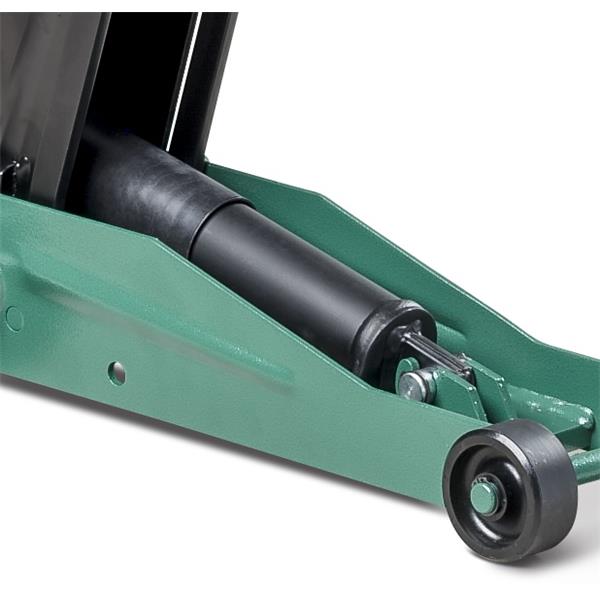

Protective cylinder jacket to prevent intrusion of dirt and welding splatter.
Max. height 500 mm.
Min. height 80 mm.
max load: 2000 kg

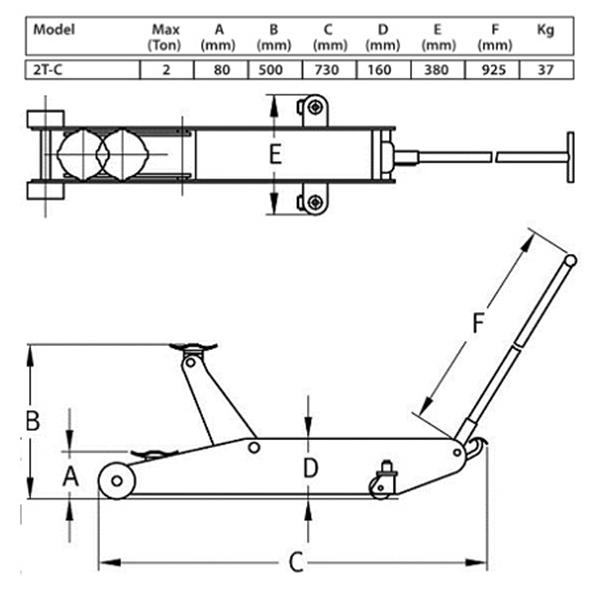

Technical features:

Model	MAX (ton)	A (mm)	B (mm)	C (mm)	D (mm)	E (mm)	F (mm)	kg
2T-C	2	80	500	730	160	380	925	36
3T-C	3	115	500	1015	170	380	925	43
4T-C	4	130	545	1270	200	465	1045	74
5T-C	5	145	560	1270	200	465	1045	75
6T-C	6	155	570	1395	210	470	1045	97
10T-C	10	165	580	1410	225	435	1045	110
12T-C	12	170	670	1700	280	470	1045	148
15T-C	15	200	600	1790	325	475	1045	169

Product Safety and Downloads

Documents and datasheets

Product safety information

Manufacturer

Compac GmbH
Hydraulik Vertrieb
Am Oxer 37-41
24955 Harrislee
Germany
info@compacgmbh.de

Zubehör

Compac CSL LED LED smart light for jacks

Compac CSL LED LED smart light for jacks Features: LED smart light for jacks. Can also be used as a headlamp. 3 step function: 40%, 125 Lumen 100%, 280 Lumen Sensor mode (100%, 280 Lumen) Easy to fit on the side of the most jacks. Enhances the chance of correct lifting, when the lifting points are clearly visible. The light is activated by the sensor and a timer turns off the light automatically. Adjustable angle. Contents: Compac CSL Compact Smart Light Bracket USB cable for charging Strap for headlamp use Surface cleaner Technical features 3W COB LED Lumen: 125 (40%) / 280 (100%) Lux: 350 / 700 @ 0,5 m Operating time: 4 / 2,5 hours Charging time: 3 Stunden Battery: 3,7V / 1500 maH Li-ion Shock resistance: IK07 Protection class: IP65 Dimensions: 78,5 x 47,5 x 42 mm Weight: 113 g

€34.95*

Prices incl. VAT plus shipping costs

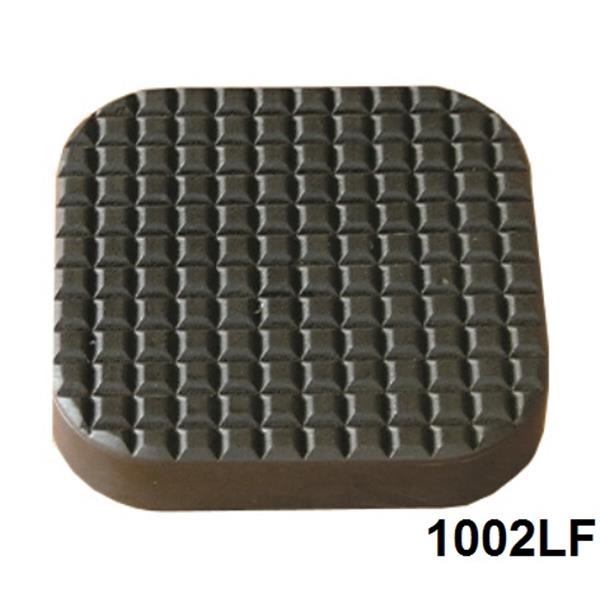

Compac 1002LF rubber-pad

€15.35*

Prices incl. VAT plus shipping costs

Compac 3068 saddle-extension 40 mm

Compac 003068 Extension saddle Micro 40 mm Features: Saddle for extra height or accessing lifting points situated behind skirts, etc. (+ 40 mm). Fits to 2T-77, 2T-C, 3T-C, A1,6T-77. Technical features: Weight (kg) 1,23 Height (cm) 10 Length (cm) 19 Width (cm) 19

€58.00*

Prices incl. VAT plus shipping costs

Compac CAX 2H Axle stand, 2 Ton (High)

Compac CAX 2H Axle stand, 2 Ton (High) Features: Fully welded structure in high quality steel. Solid pillars. Solid spindles. Technische Merkmale: Model Max (ton) A (mm) B (mm) C (mm) P Kg CAX 2H 2 505 755 491 5 6,6 CAX 3 3 346 510 325 5 4,7 CAX 5 5 406 567 355 5 7,2 CAX 8 8 424 633 403 5 11,5 CAX 8H 8 605 870 575 6 15 CAX 12S 12 345 495 230 Spindle 11,6 CAX 12HS 12 505 740 395 Spindle 14,4

€99.95*

Prices incl. VAT plus shipping costs

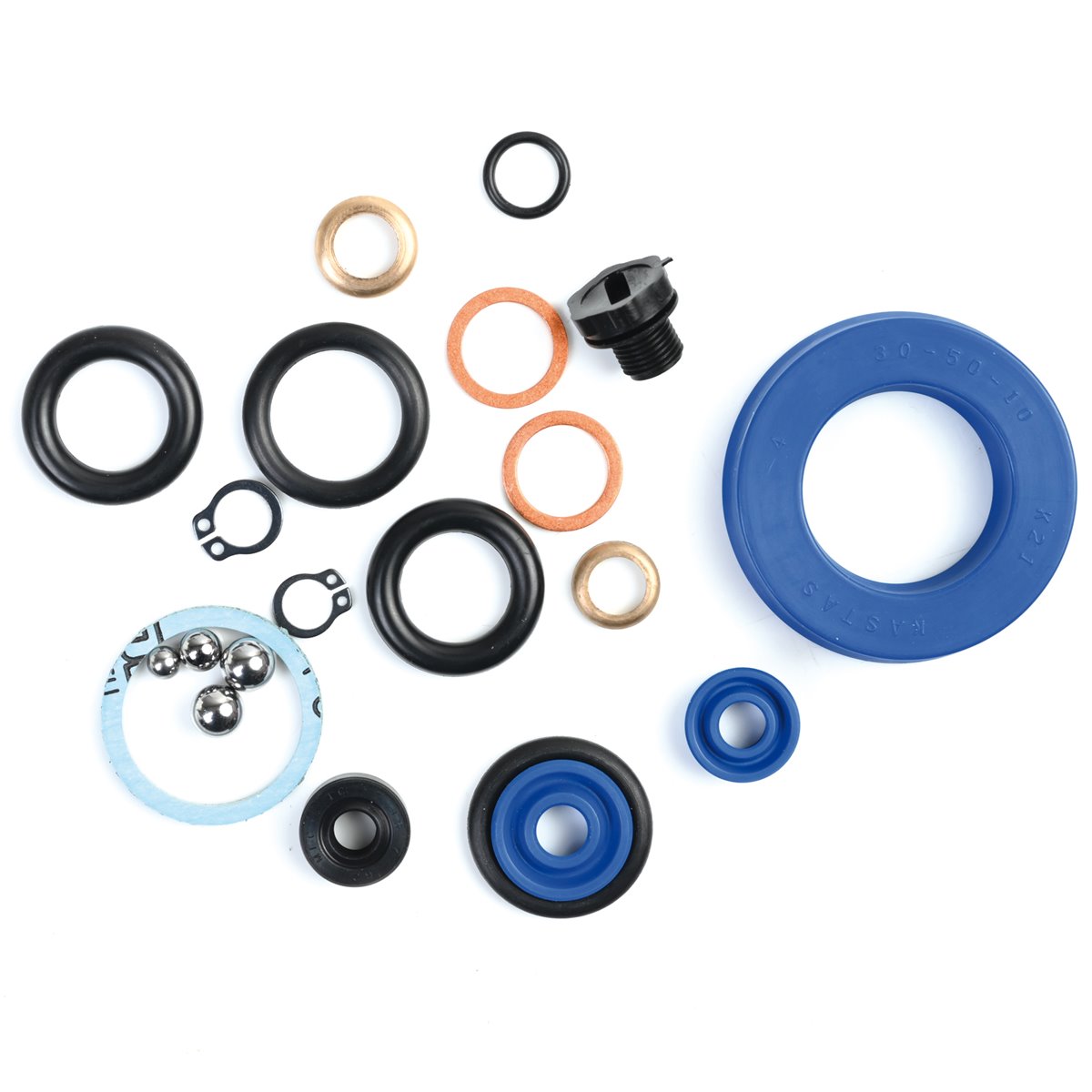

Compac 060010 (G3) Dichtsatz für 2T-C 1T-1H, 1.5T-1, 2T-1, 2T-3, 2.5T-1

Compac 2T-C (G3) Dichtsatz 060010 für 2T-C

€84.45*

Prices incl. VAT plus shipping costs

Compac 060301 Hydraulic oil Castrol AWS 22 1 liter

Compac 060301 Hydraulic oil Castrol AWS 22 Features: Hydraulic oil Castrol AWS 22 For Compac jakcs und workshop-presses (HP / FP) Check what type of oil your product requires first! Compac number: 060301

€39.95*

Prices incl. VAT plus shipping costs
