Compac A5816-C Air hydraulic jacks, 58/32/16 Ton

€2,599.00*

Content: 1 pcs

Prices incl. VAT plus shipping costs

Delivery time 10 working days

Variante

Stk

Product number: 1902202

Manufacturer no.: A5816-C

EAN: 4260208073145

Weight in kg: 52

Product information "Compac A5816-C Air hydraulic jacks, 58/32/16 Ton"

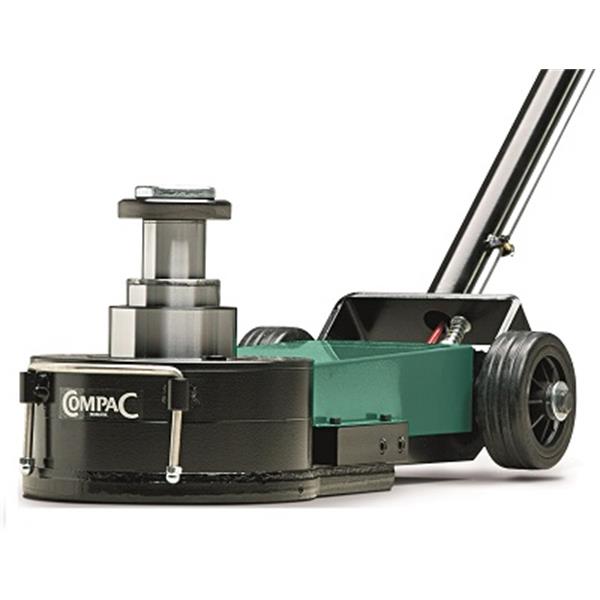

Compac A5816-C Air hydraulic jacks, 58/32/16 Ton

Features:

Long handle for better reach.
Durable 3-stage cylinder provides relatively high maximum lifting height.
Min. height only 120 mm.

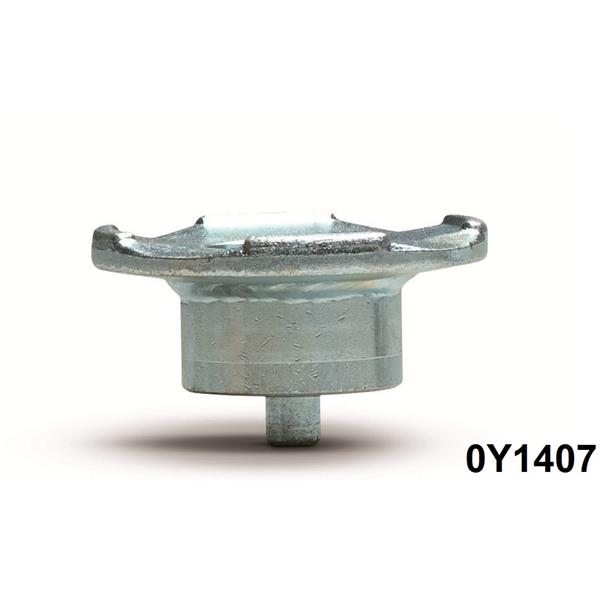

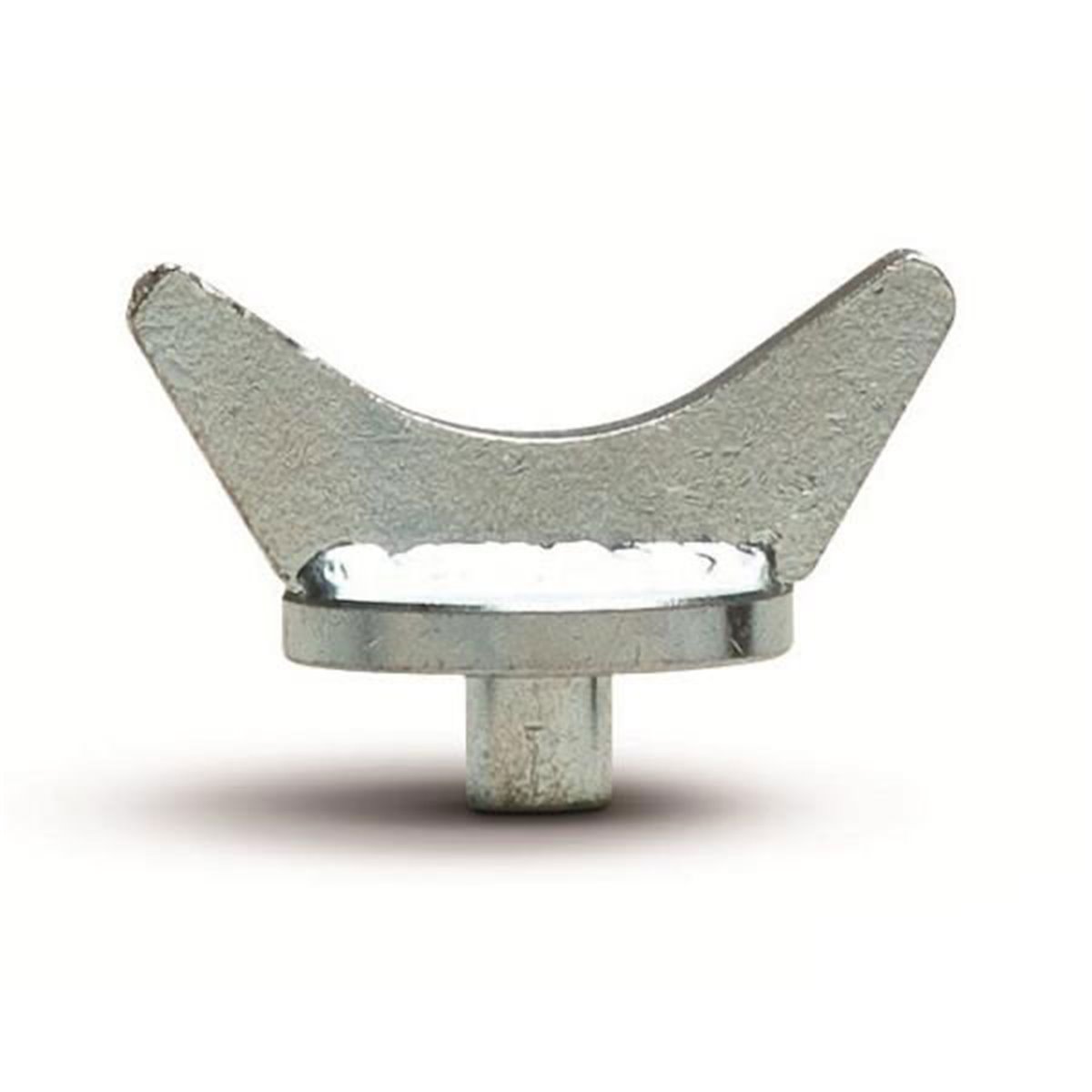

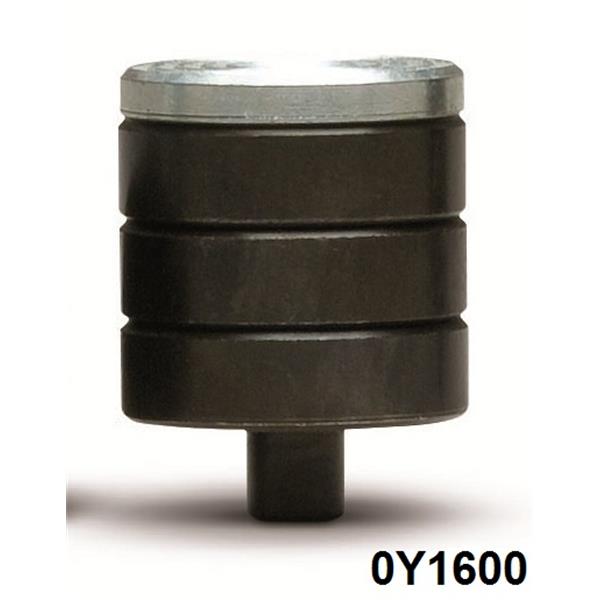

Standard with extensions:10, 70 and 120 mm.

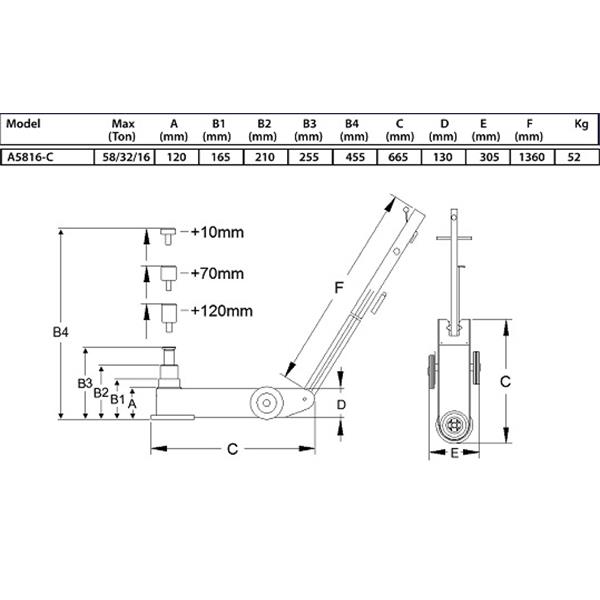

Technical features:

Max. (ton): 58/32/16
A (mm): 120
B1 (mm): 165
B2 (mm): 210
B3 (mm): 255
B4 (mm): 455
C (mm): 665
D (mm): 130
E (mm): 305
F (mm): 1360
Kg: 52

Product Safety and Downloads

Documents and datasheets

Product safety information

Manufacturer

Compac GmbH
Hydraulik Vertrieb
Am Oxer 37-41
24955 Harrislee
Germany
info@compacgmbh.de
