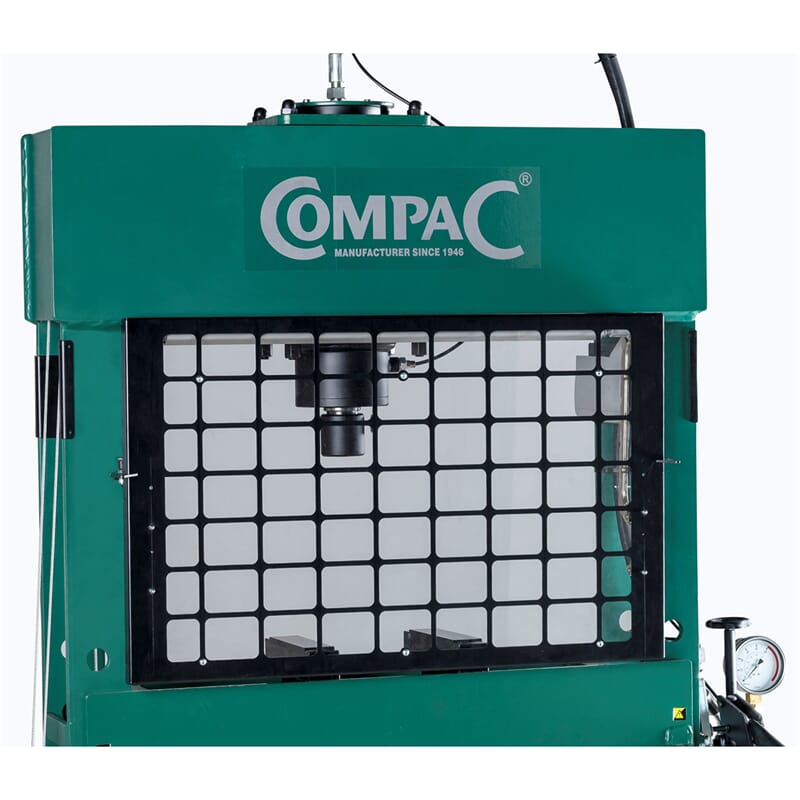

Compac EP 100 D Electro-hydraulic workshop press 100 Ton (Double acting cylinder)
€9,499.00*
Please request delivery time
Product information "Compac EP 100 D Electro-hydraulic workshop press 100 Ton (Double acting cylinder)"
Compac EP 100 D Electro-hydraulic workshop press 100 Ton (Double acting cylinder)
Features:

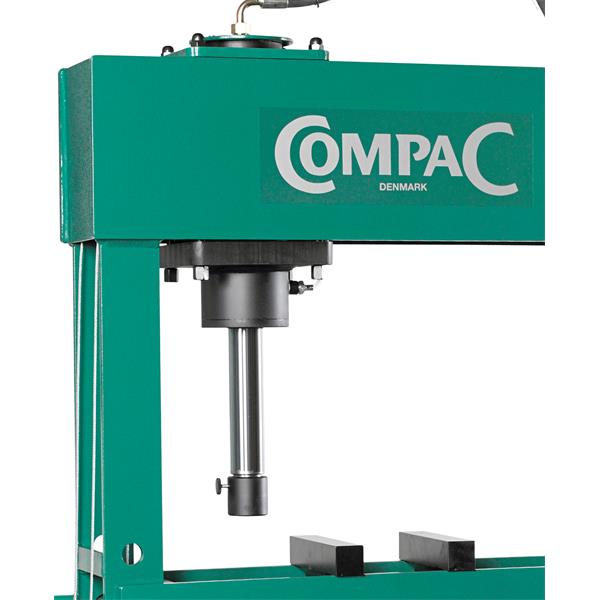

- Moveable cylinder.
- Hard chrome piston and very long stroke of 300 mm.

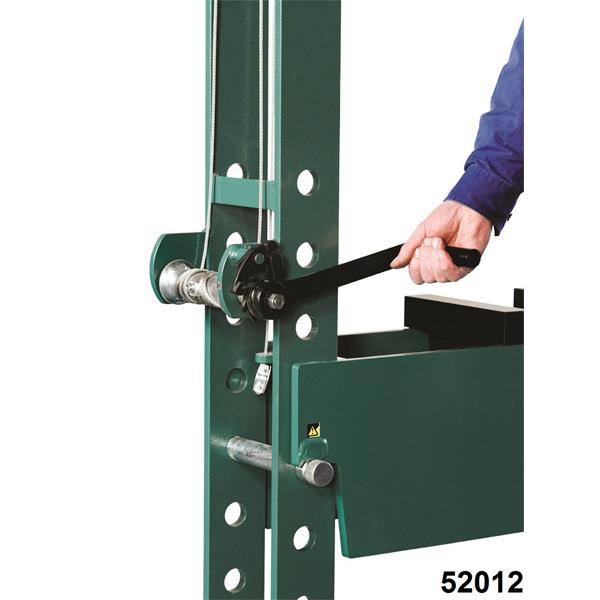

- Fast and safe adjustment of the press table height, using a braked winch.

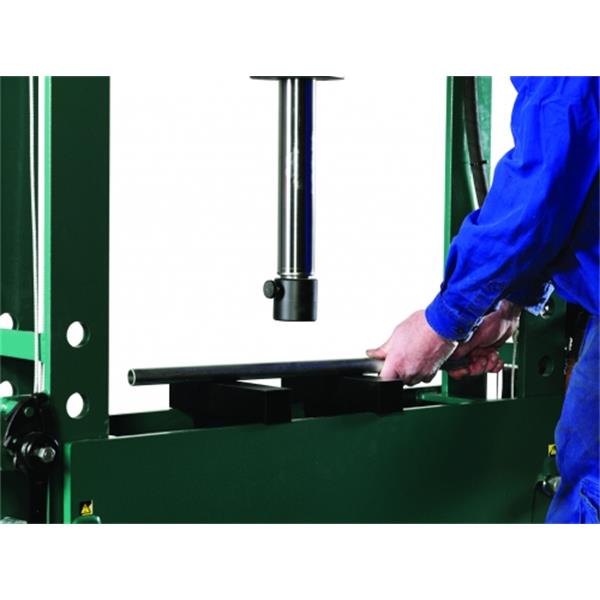

- A 90° hinged pump unit enables easier insertion of longer work-pieces.
- Multi-adjustable pressure valve.
- Double acting cylinder: Featuring both pressing and pulling facilities.
Technical features:
- Max. (ton): 100
- mm/sek: 10,0/1,4
- Max. (ton): 4
- A (mm): 900
- B (mm): 1024
- C (mm): 300
- D (mm): 320
- E (mm): 220
- F (mm): 100
- G (mm): 2150
- H (mm): 1620
- I (mm): 860
- Kg: 910
- Kw: 2,2
Product Safety and Downloads
Documents and datasheets
Product safety information
Manufacturer
Compac GmbH
Hydraulik Vertrieb
Am Oxer 37-41
24955 Harrislee
Germany
