Kukko 2 narrow, quick adjusting jaws (pair)

Product information "Kukko 2 narrow, quick adjusting jaws (pair) "

Kukko 1-193-P 2 narrow, quick adjusting jaws (pair)


For removing bearings, gears, discs, etc. for tight or difficult-to-access spaces.


Description

  • Thin pulling hooks with Quickadjust in various lengths.

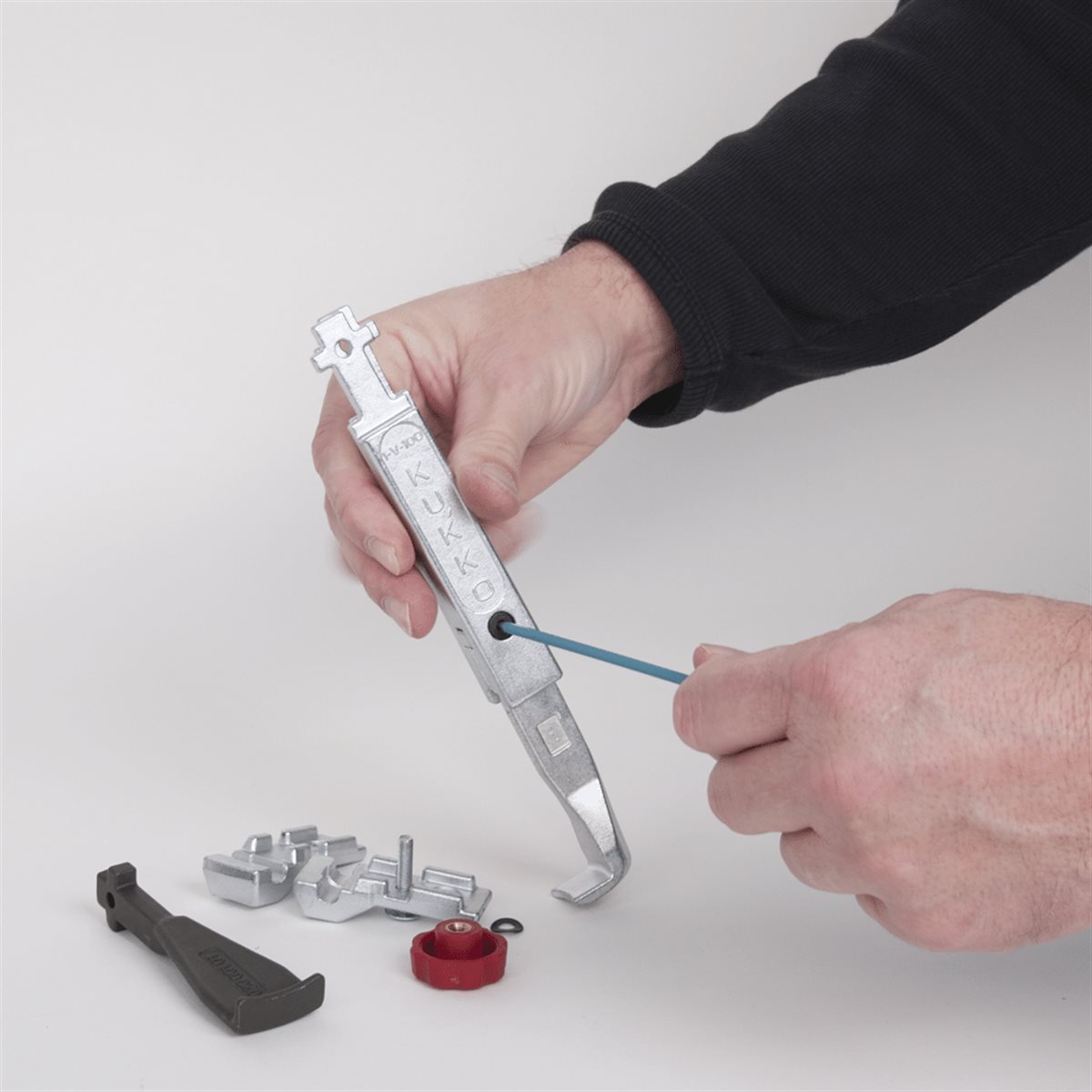

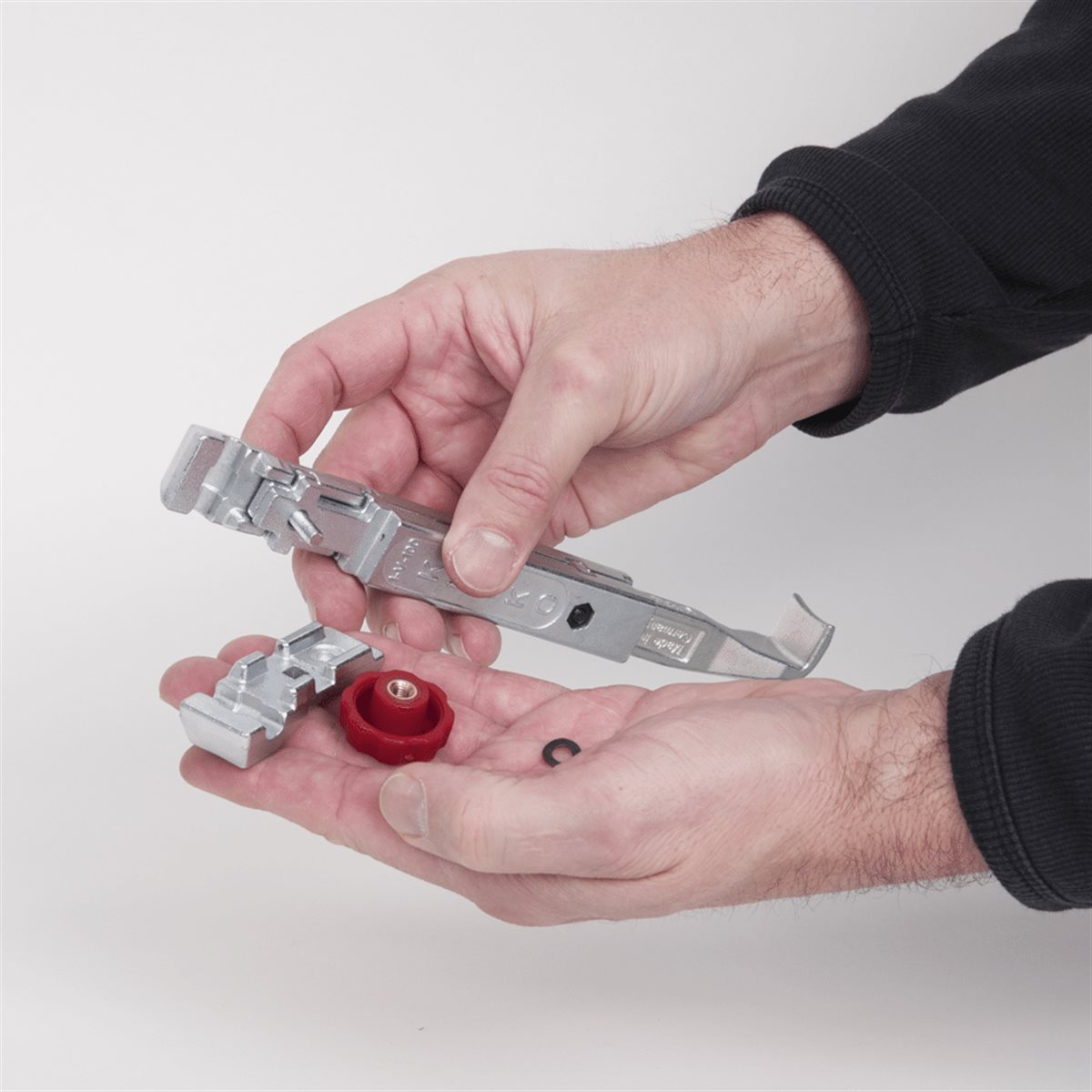

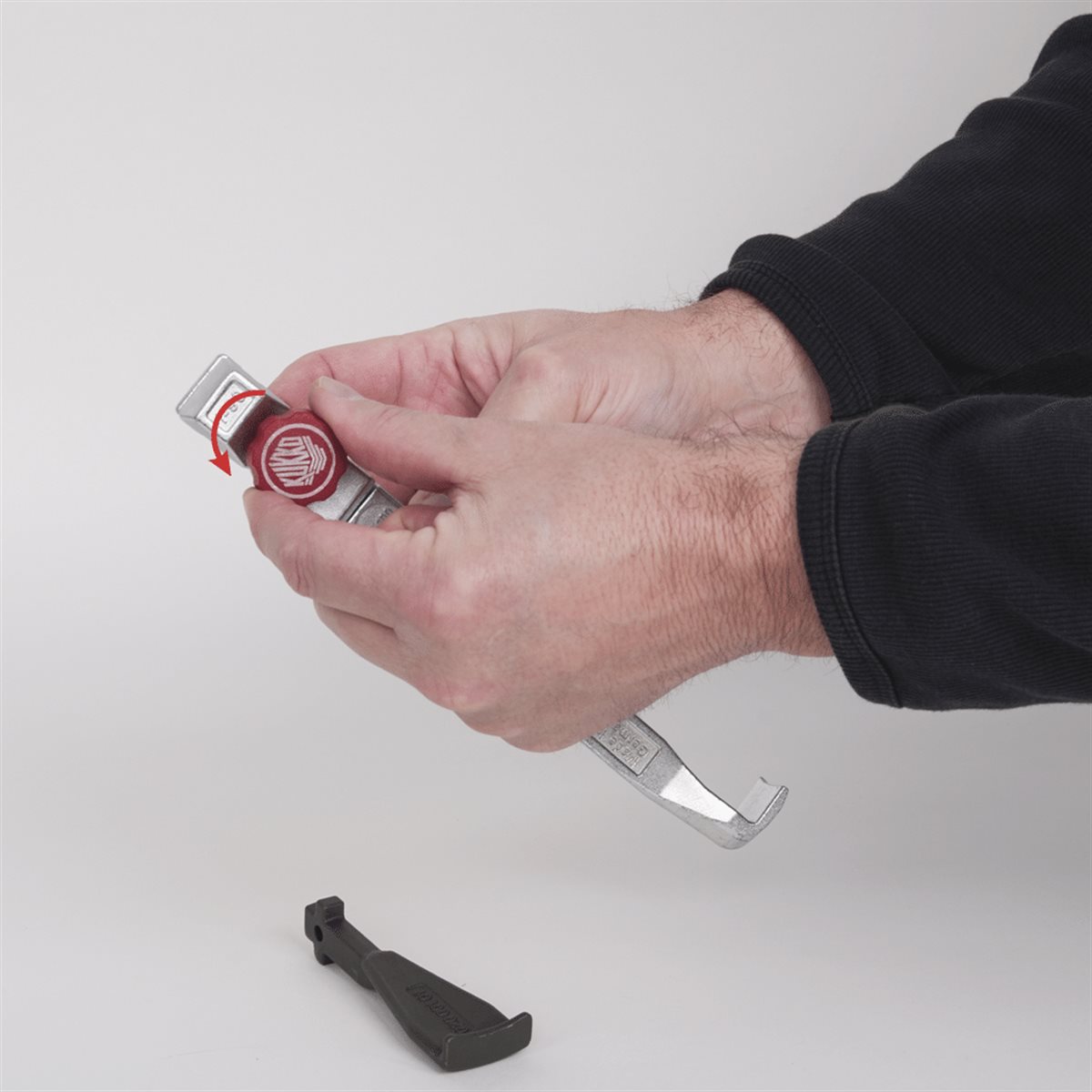

  • Pulling hooks with infinitely variable adjustment on the cross-beam.
  • Pulling hook with sliding part only available in pair of 2.

Advantage

  • Variable reach thanks to jaw extensions, available up to a puller size of -30.
  • Turning the pulling hooks enables them to be used both internally and externally.
  • Suitable for pulling asymmetric workpieces.
  • As a replacement part or supplement to your Kukko puller.

KUKKO quality standards

  • Quality made in Germany.
  • Strong design, high performance and long service life.
  • Self-healing corrosion protection KUKKoating for galvanized parts (WITHOUT chrom VI).


Series 3-P

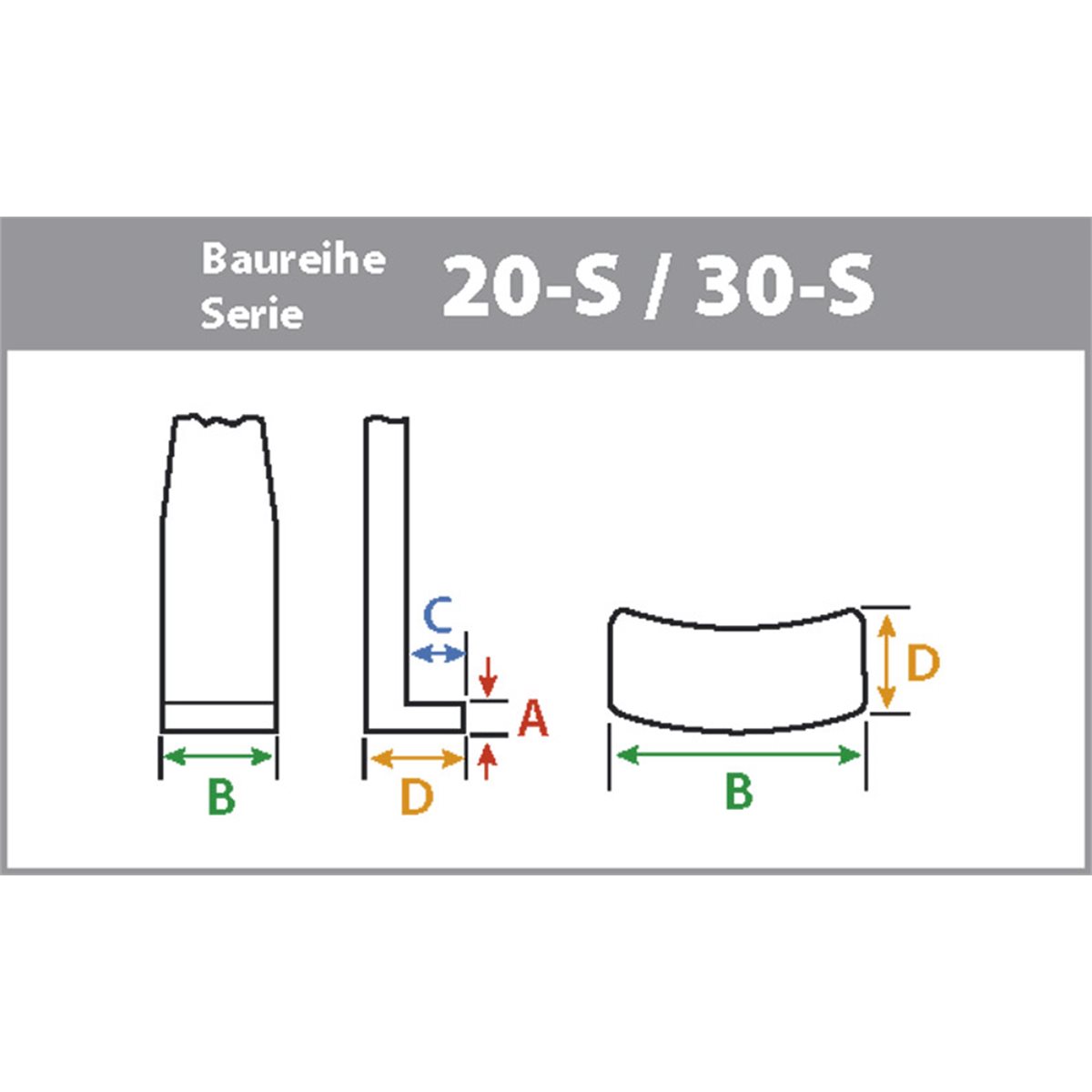

Item no. EAN
4021176
Hook length
mm
Hook length
inch
Weight
kg
A
mm
A
inch
B
mm
B
inch
C
mm
C
inch
D
mm
D
inch
1-93-P 973352 100 3 7/8 0.53 2,6 1/8 30 1 3/16 7 1/4 14 5/8
1-193-P 324208 200 7 7/8 1.095 2,6 1/8 30 1 3/16 7 1/4 14 5/8
1-253-P 973710 250 9 7/8 1.34 2,6 1/8 30 1 3/16 7 1/4 14 5/8
2-153-P 973789 150 5 7/8 1.37 4,0 3/16 32 1 1/4 8 3/8 19 3/4
2-303-P 973857 300 11 7/8 2.58 4,0 3/16 32 1 1/4 8 3/8 19 3/4
3-203-P 973901 200 7 7/8 3.16 6,5 1/4 35 1 3/8 17 5/8 52 2 1/16
3-303-P 973970 300 11 7/8 4.265 6,5 1/4 35 1 3/8 17 5/8 52 2 1/16
3-403-P 974052 400 15 3/4 6.155 6,5 1/4 35 1 3/8 17 5/8 52 2 1/16
3-503-P 974175 500 19 3/4 6.51 6,5 1/4 35 1 3/8 17 5/8 52 2 1/16
