engine-stand foldable T26801
€219.00*
Content:
1 pcs
Available, delivery time: 2 working days
Available1: >5 unit(s)
Product number:
251645
Manufacturer no.:
TBS1400
EAN:
4260208066376
Weight in kg:
35
Product information "engine-stand foldable T26801 "

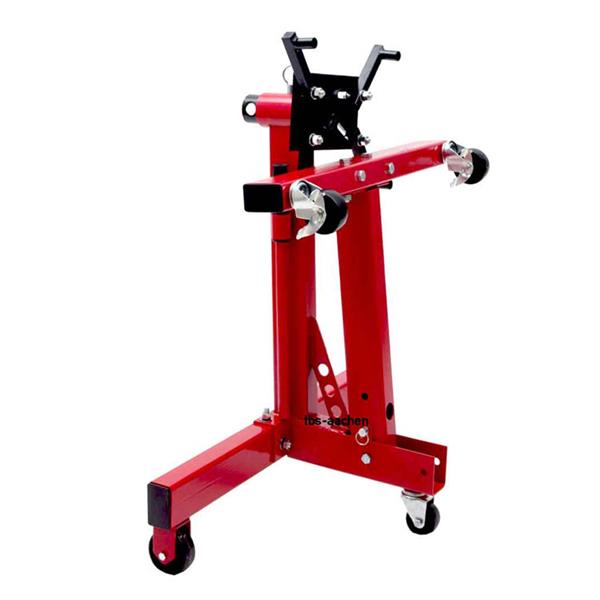

Foldable Engine Stand with H-Chassis, 680 kg
Features:
- For professional workshops and Do-it-yourselfers
- Ideal helper for all maintenance work on the engine and gearbox
- Multiple adjustment options

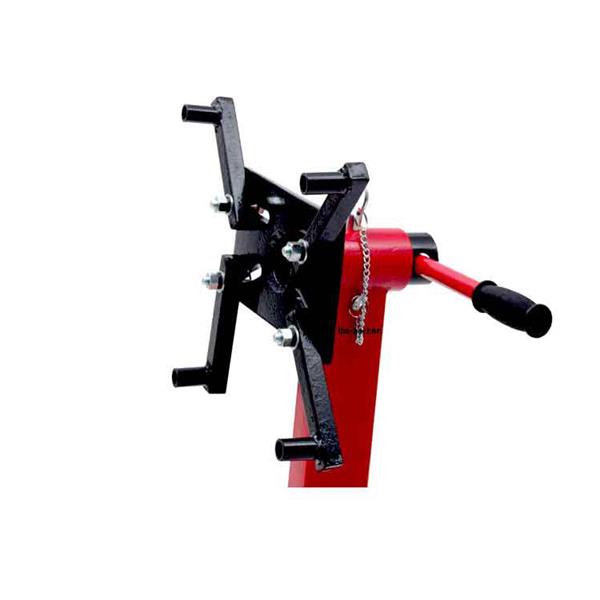

- Mounting plate rotatable, so you can work on the underside of the engine
- With safety pin
- The four carrying arms can be adjusted also, so that they can be individually adapted to each engine
- Easy construction
- Delivery unassembled
- Foldable
Technical features:
- Load capacity: 680 kg
- H chassis
- Mounting plate (mm): 150 x 250 mm
- Swiveling: 360 °
- Adjustable: 8 times
- Maximum mounting width: 340 mm
- Maximum mounting height: 430 mm
- Middle axis: 660 mm
- Wheels (number): 5
- Ø (front / rear): 80/80 mm
- Running width (front / rear): 30/30 mm
- Steerable rear castors, lockable
- Dimensions: 860x890x790 mm, folded: 370x890x790 mm
- Weight: 33 kg
