Gedore 1 B 41 Combination spanner 41 mm
€70.95
Content:
1 pcs
Available, delivery time: 2 working days
Available1: 1 unit(s)
Variante
Product number:
100032
Manufacturer no.:
6003690
EAN:
4010886600368
Weight in kg:
1.45
Product information "Gedore 1 B 41 Combination spanner 41 mm "

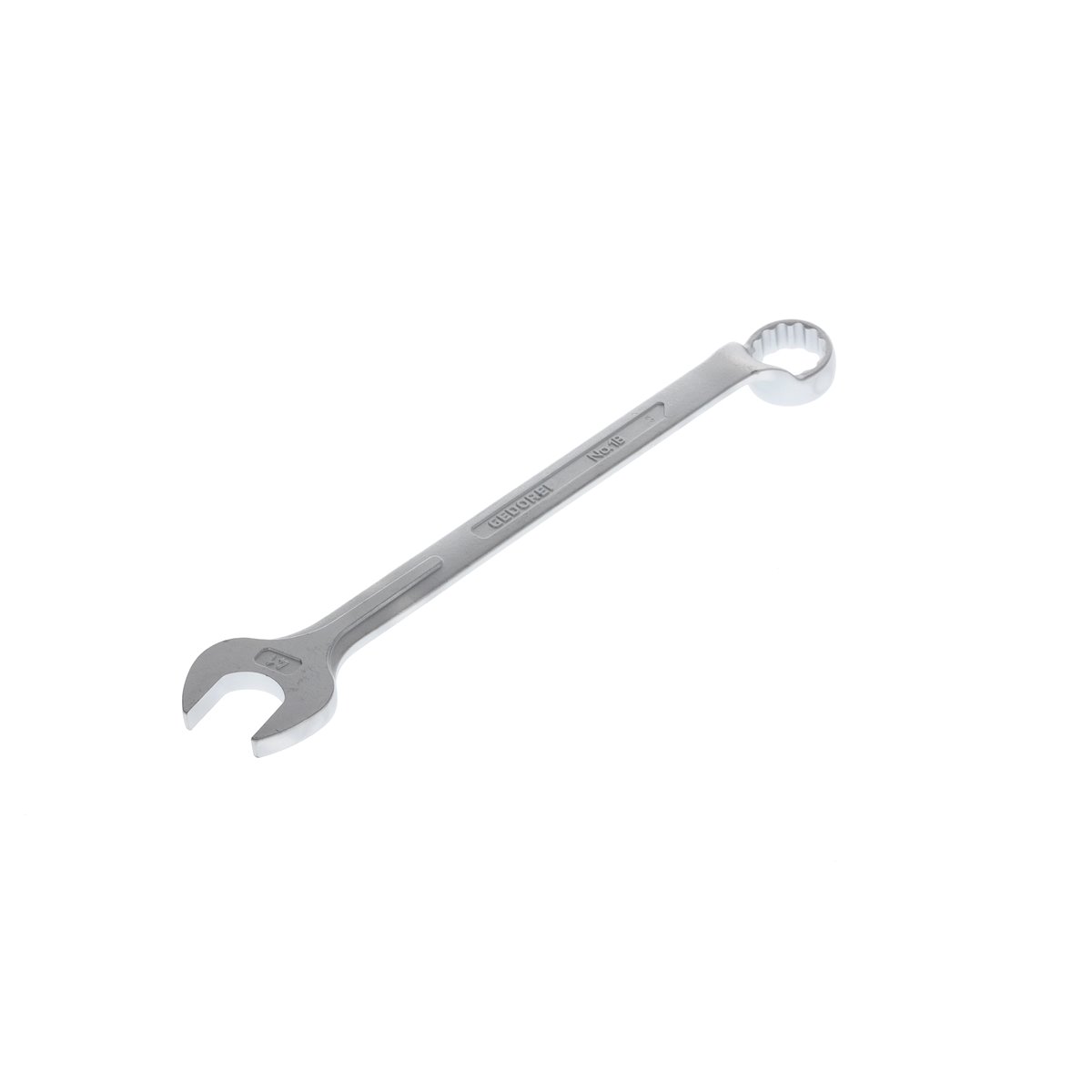

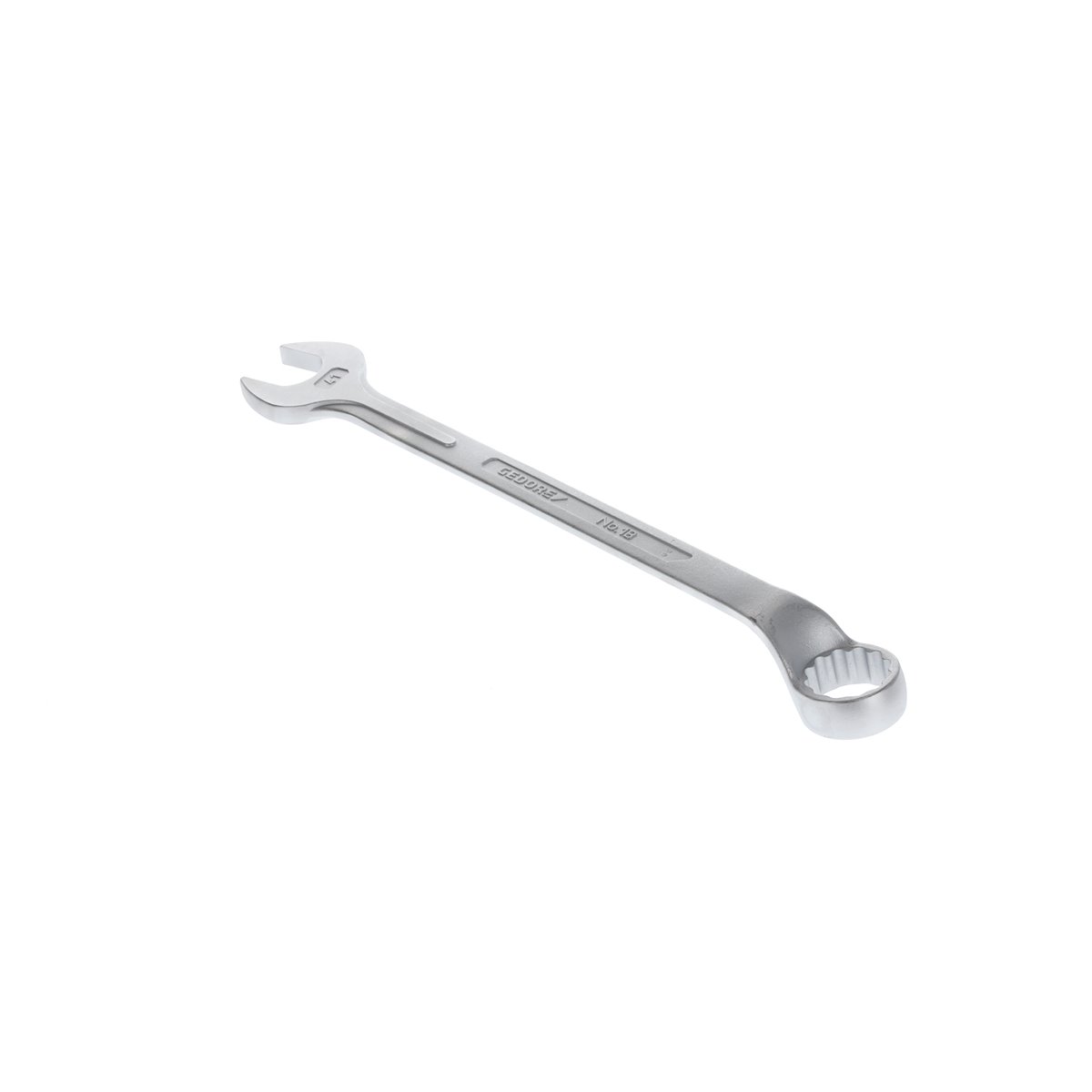

Gedore 1 B 41 Combination spanner UD profile 41 mm
Gedore 1 B 41 Combination spanner UD profile 41 mm
Features:
- Acc. to DIN 3113
- Form A
- ISO 3318
- ISO 7738
- Sizes 5 and 5.5 mm with hexagon ring
- up from size 6 mm with UD profile
- Chrome-vanadium steel 31CrV3
- chrome-plated
- Carefully forged and professionally machined
- Ring: 10° offset from shaft
- with UD profile for gentle transmission of force
- Overloading indicated by deformation
- The offset ring ensures a better grip on deep-seated or inset nuts or bolts
- Top-grade industrial quality for the hardest of continuous use
- * not standardised
Technical features:
- Width across flats 1 [mm]: 41
- Net weight [kg]: 1,452 kg
- Ring offset: 10°
- Head height 2 [mm]: 14 mm
- Mouth position 1: 15°
- Head height 1 [mm]: 25,5 mm
Gedore Code-Number: 6003690
EAN: 4010886600368
| Design/type: | offset, standard length |
|---|---|
| Size: | 41 mm |
| Spanner type: | Combination spanner |
| Unit of measurement: | metric (mm) |
