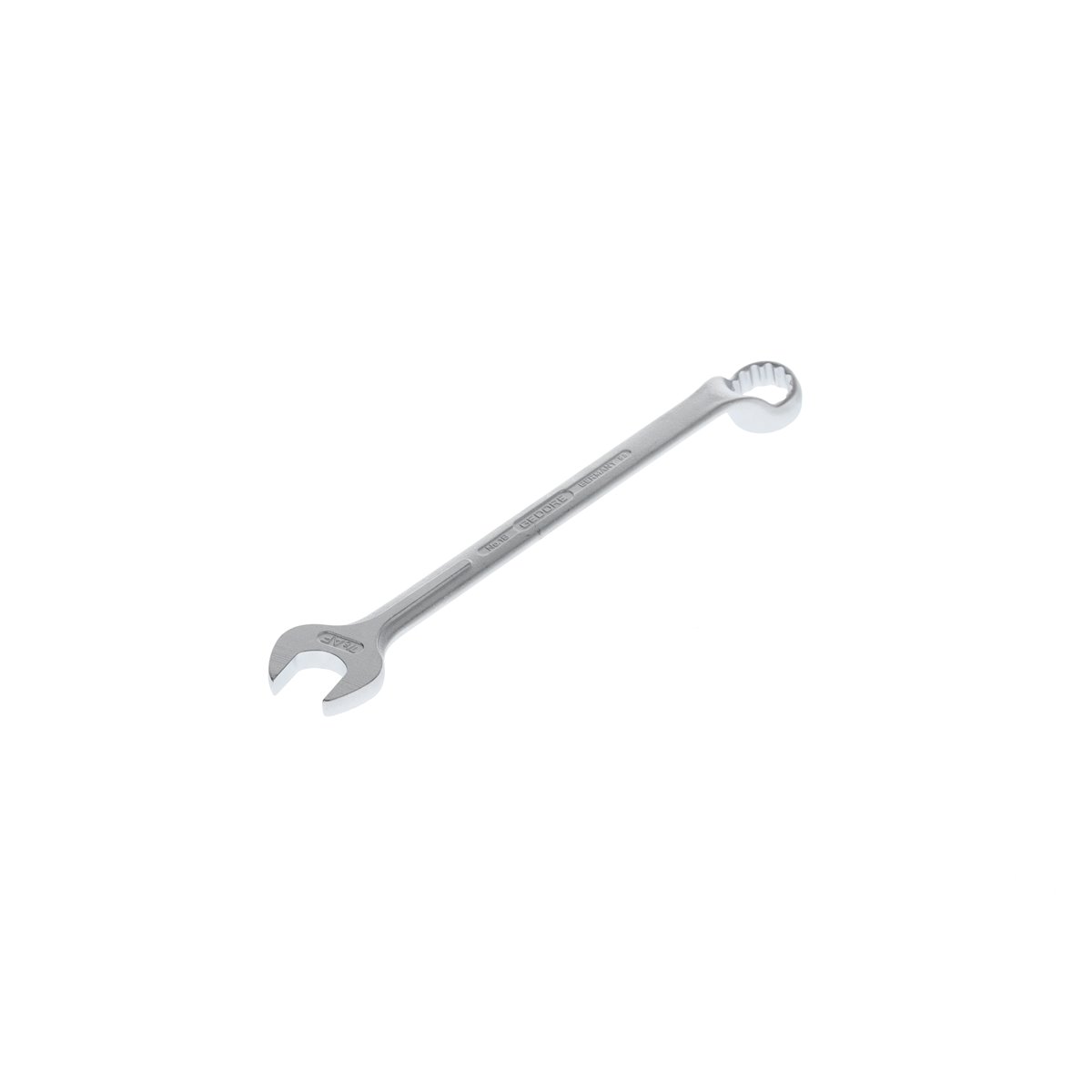

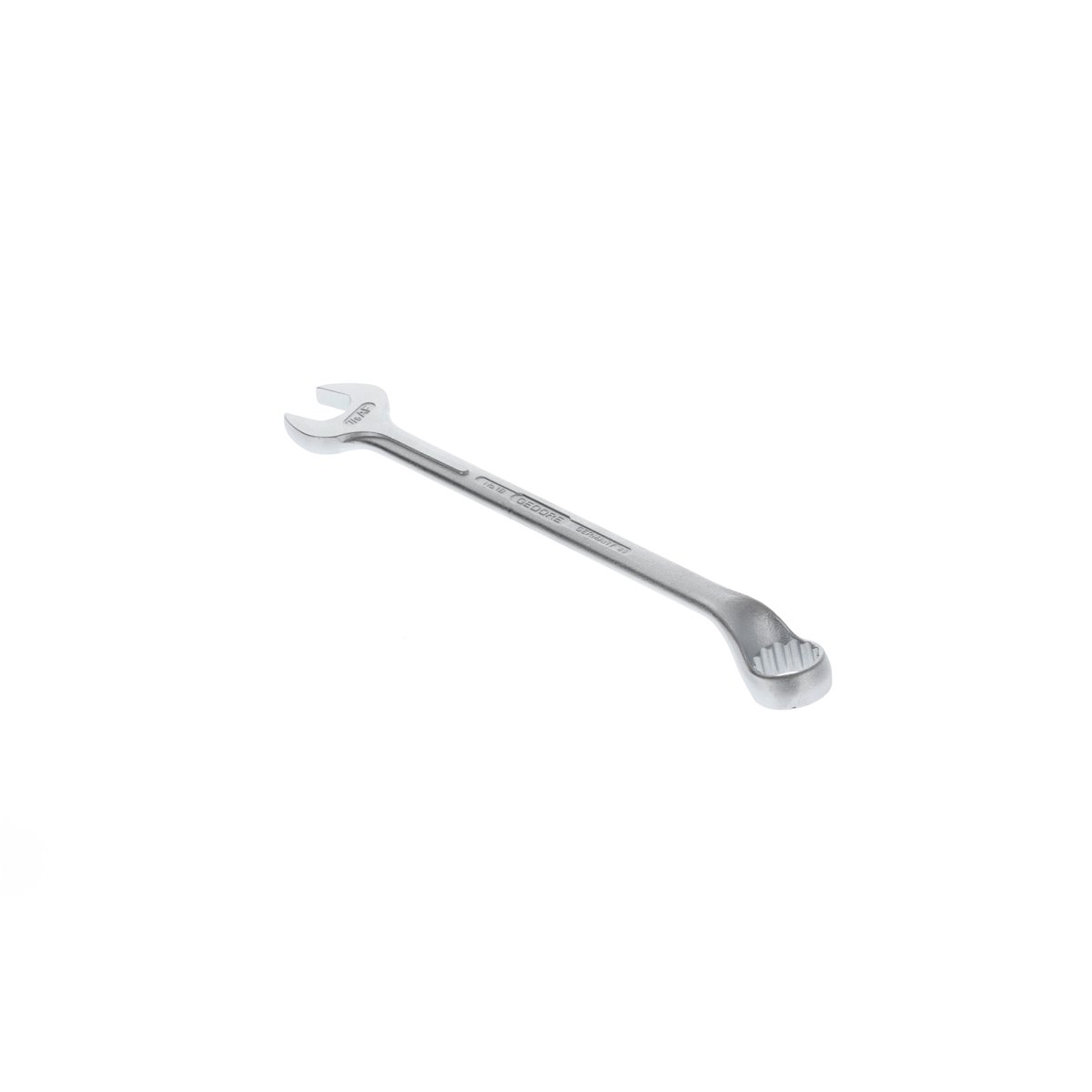

Gedore 1 B 7/8AF Combination spanner 7/8"
€26.95*
Content:
1 pcs
Available, delivery time: 2 working days
Available1: 2 unit(s)
Variante
Product number:
100047
Manufacturer no.:
6006360
EAN:
4010886600634
Weight in kg:
0.31
Product information "Gedore 1 B 7/8AF Combination spanner 7/8" "
Gedore 1 B 7/8AF Combination spanner UD profile 7/8
Gedore 1 B 7/8AF Combination spanner UD profile 7/8
Features:
- Design in accordance with DIN 3113
- form B
- ISO 3318
- ISO 7738
- With same size each end
- Chrome-vanadium steel 31CrV3
- chrome-plated
- Satin non-glare finish
- Carefully forged and professionally machined
- Ring: cranked and 10° angled
- with UD profile for gentle power transmission
- from SW 1.3/8 12-edge ring
- Jaw: ground precisely to exact nominal size for optimum contact areas
- Slim ribbed open end for added strength guarantees maximum torques
- Overloading indicated by deformation
- The offset ring ensures a better grip on deep-seated or inset nuts or bolts
- Top-grade industrial quality for the hardest of continuous use"
Technical features:
- Net weight [kg]: 0,308 kg
- Weight: 0,680 lbs
- Ring offset: 10°
- Head height 1 [mm]: 14,5 mm
- Mouth position 1: 15°
- Height of offset 1: 27 mm
Gedore Code-Number: 6006360
EAN: 4010886600634
| Design/type: | offset, standard length |
|---|---|
| Size: | 7/8" |
| Spanner type: | Combination spanner |
| Unit of measurement: | Zoll ("AF) |
