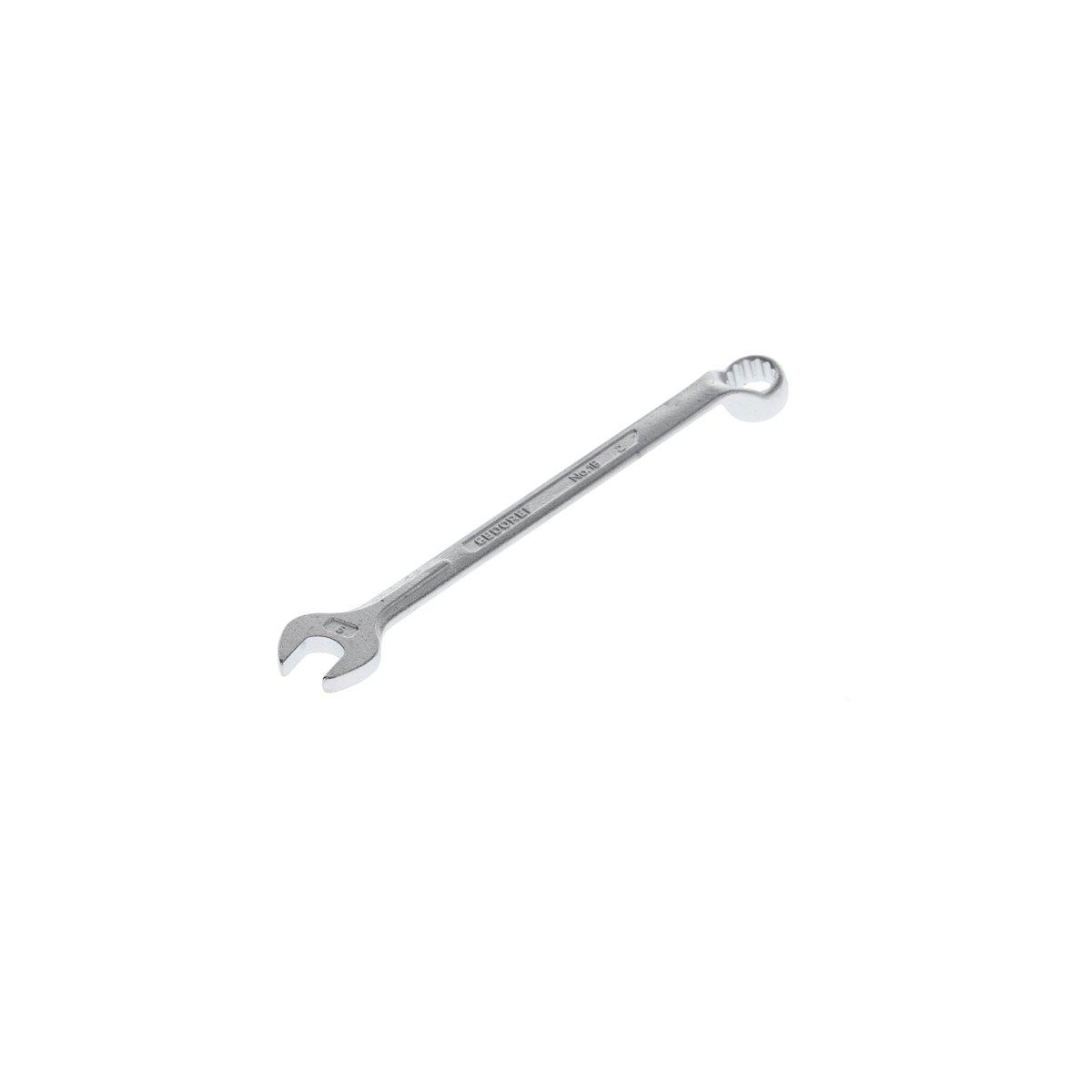

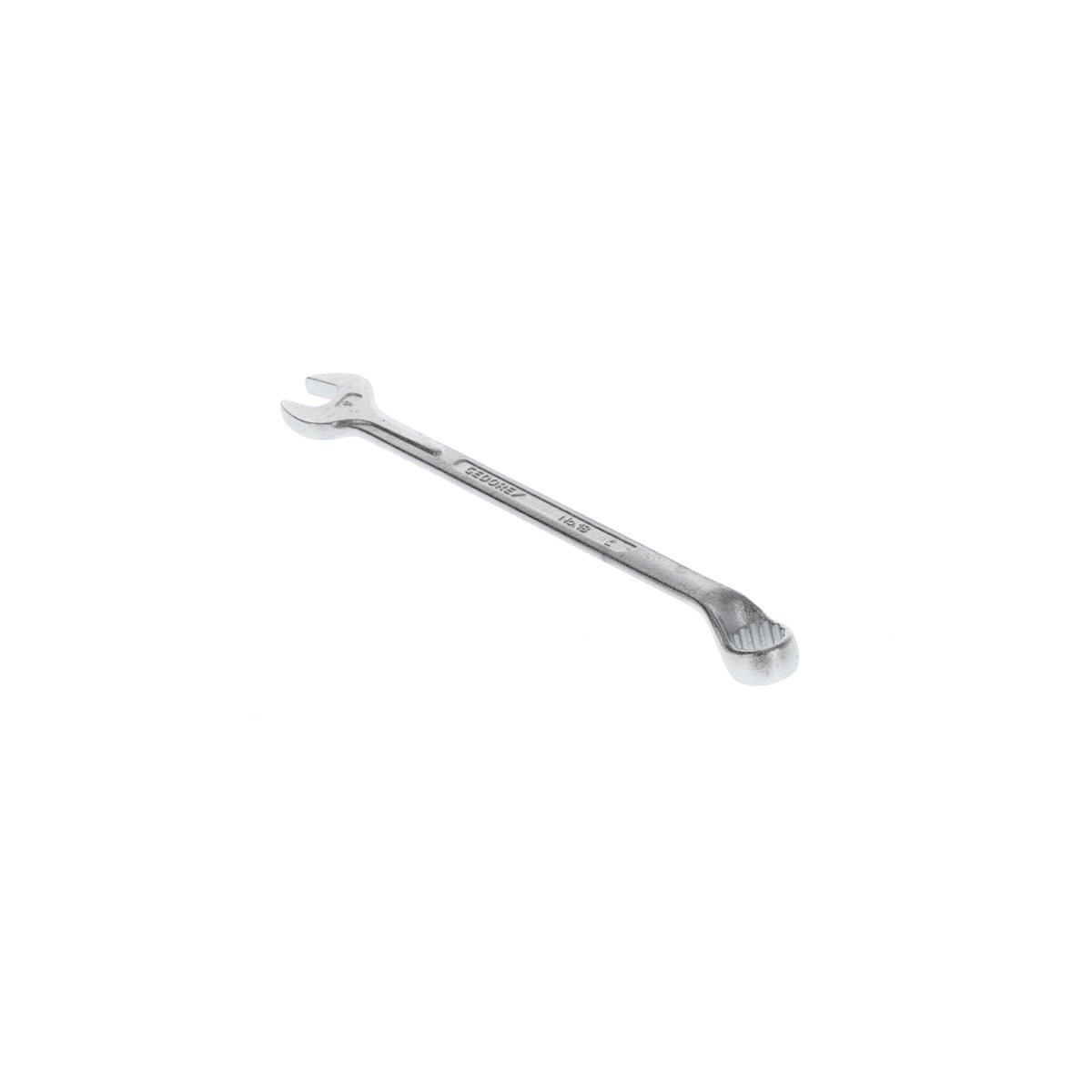

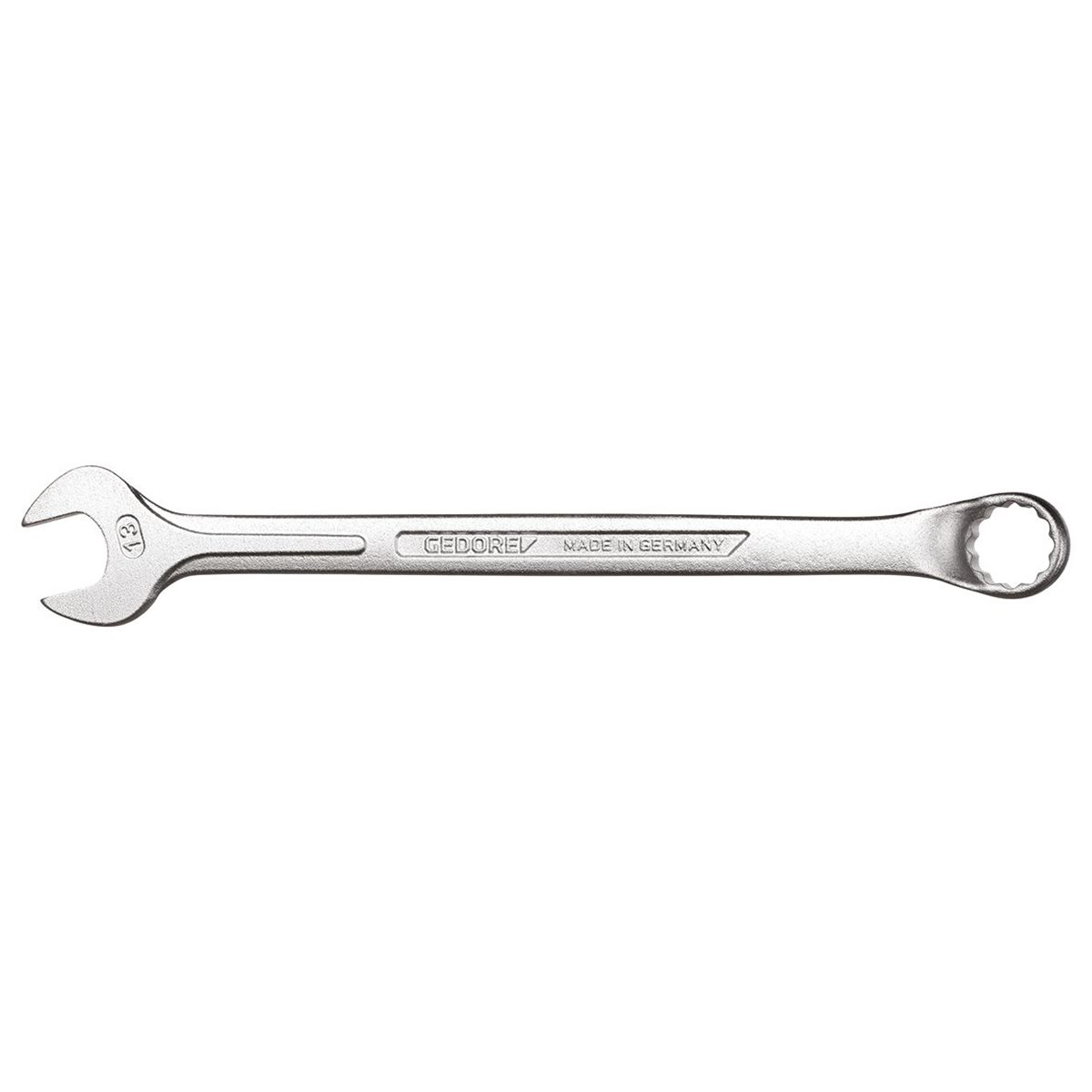

Gedore 1 B 9 Combination spanner 9 mm
€9.95
Content:
1 pcs
Available, delivery time: 2 working days
Available1: 2 unit(s)
Variante
Product number:
100005
Manufacturer no.:
6000750
EAN:
4010886600078
Weight in kg:
0.04
Product information "Gedore 1 B 9 Combination spanner 9 mm "
Gedore 1 B 9 Combination spanner UD profile 9 mm
Gedore 1 B 9 Combination spanner UD profile 9 mm
Features:
- Acc. to DIN 3113
- Form A
- ISO 3318
- ISO 7738
- Sizes 5 and 5.5 mm with hexagon ring
- up from size 6 mm with UD profile
- Chrome-vanadium steel 31CrV3
- chrome-plated
- Carefully forged and professionally machined
- Ring: 10° offset from shaft
- with UD profile for gentle transmission of force
- Overloading indicated by deformation
- The offset ring ensures a better grip on deep-seated or inset nuts or bolts
- Top-grade industrial quality for the hardest of continuous use
- * not standardised
Technical features:
- Width across flats 1 [mm]: 9
- Net weight [kg]: 0,035 kg
- Weight: 0,080 lbs
- Ring offset: 10°
- Height of offset 1: 12,5 mm
- Total height [mm]: 13 mm
Gedore Code-Number: 6000750
EAN: 4010886600078
| Design/type: | offset, standard length |
|---|---|
| Size: | 9 mm |
| Spanner type: | Combination spanner |
| Unit of measurement: | metric (mm) |
