Gedore 1.04/1A Puller, 2-arm pattern 130x100 mm

€102.95*

Content: 1 pcs

Prices incl. VAT plus shipping costs

Delivery time 5 working days

Variante

Stk

Product number: 107172

Manufacturer no.: 1307703

EAN: 4036976107005

Weight in kg: 1.2

Product information "Gedore 1.04/1A Puller, 2-arm pattern 130x100 mm "

Gedore 1.04/1A Universal puller, 2-arm, 130x100 mm

Gedore 1.04/1A Universal puller, 2-arm, 130x100 mm

Features:

For the safe and quick removal of pulleys
wheels
ball bearings
etc.
Strong
ergonomically shaped cross beam with bending moment reinforcement
Due to the bending-moment reinforcement on its back face
the energy-saving design of the cross-beam means even stronger and safer pulling work
Scale for uniform adjustment of the puller legs. Allows centred pulling
with optimised application of force
even when extremely high pulling forces are required
The quick-action adjustment feature supports the energy-saving and fast operation
Exchangeable spindle tip (ball or tip)

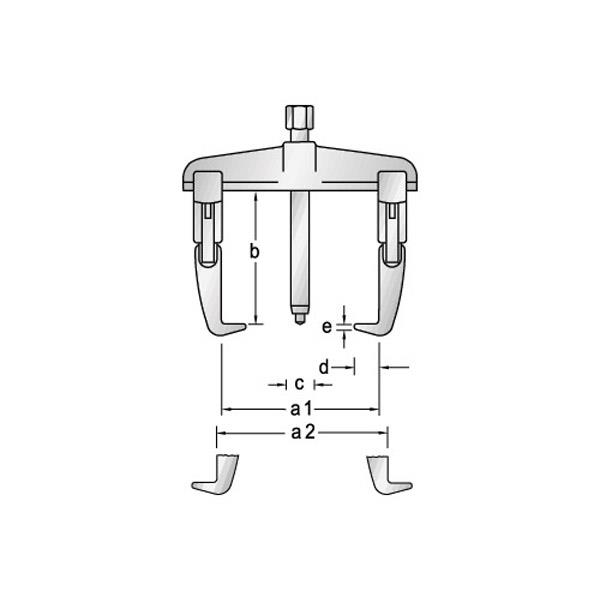

Technical features:

Number of arms: 2
Number of hooks: 2
Tractive force (max.) [t]: 3
Hydraulic spindle optional: -
Net weight [kg]: 1,2 kg
Usable clamping reach [mm]: 100 mm

Gedore Code-Number: 1307703
EAN: 4036976107005

Product Safety and Downloads

Documents and datasheets

Safety Information

Product safety information

Manufacturer

Gedore Werkzeugfabrik GmbH & Co. KG
Remscheider Straße 149
42899 Remscheid
Germany
info@gedore.com

Zubehör

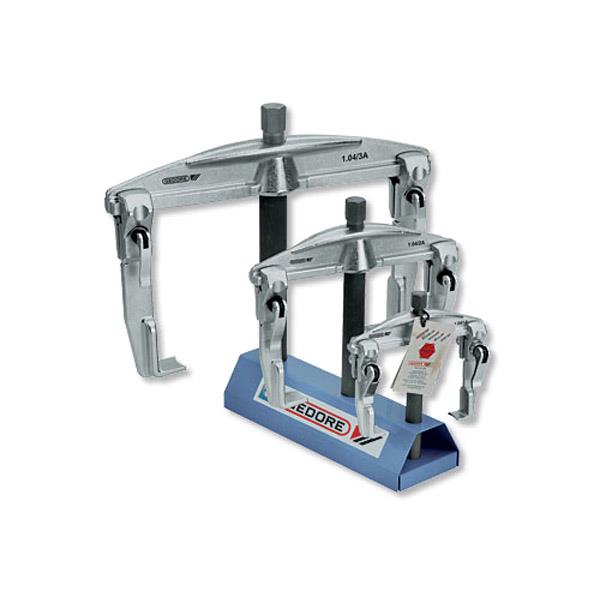

Gedore 1.04/ST Puller set with display stand 1.04/1A-1.04/3A

Gedore 1.04/ST Puller set with display stand 1.04/1A-1.04/3A Consisting of 3 each pullers and sales display

€638.95*

Prices incl. VAT plus shipping costs

Gedore 1.1406200 Spindle big for 1.92/2

Gedore 1.1406200 Spindle large for 1.92/2 (M14x1,5 x 200 mm) Gedore 1.1406200 Spindle large for 1.92/2 (M14x1,5 x 200 mm) Features:Twisted/riveted thrust piece (tip)Spindle head with hexagon drive and impulse impact surfaceNitrocarburized spindle surfacewear and corrosion resistantRolled fine threadwith the same effort - more pressureIn heat-treated steel as per EN 10083Spindle remains smooth and clean - no need to grease or oil Technical features:Width across flats 1 [mm]: 17Net weight [kg]: 0,285 kgUsable thread length [mm]: 200 mmTotal length [mm]: 310 mmSpindle thread size: M 14x1,5Gedore Code-Number: 1576224EAN: 4036976113532

€28.95*

Prices incl. VAT plus shipping costs

Gedore 1.1406140 Spindle 17 mm, M14x1.5, 140 mm

Gedore E-1.1406140 Spindle SW 17 mm M14x1,5 140 mm Gedore E-1.1406140 Spindle SW 17 mm M14x1,5 140 mm Features:Twisted/riveted thrust piece (tip)Spindle head with hexagon drive and impulse impact surfaceNitrocarburized spindle surfacewear and corrosion resistantRolled fine threadwith the same effort - more pressureIn heat-treated steel as per EN 10083Spindle remains smooth and clean - no need to grease or oil Technical features:Width across flats 1 [mm]: 17Net weight [kg]: 0,176 kgUsable thread length [mm]: 140 mmTotal length [mm]: 240 mmSpindle thread size: M 14x1,5Gedore Code-Number: 1084488EAN: 4036976106619

€21.95*

Prices incl. VAT plus shipping costs

Gedore 1.1406140KS Spindle 17 mm, M14x1.5, 140 mm, with ball tip

Gedore 1.1406140KS Spindle SW 17, M14x1.5, 140 mm, with ball point Gedore 1.1406140KS Spindle SW 17, M14x1.5, 140 mm, with ball point Features:Exchangeable and rotatable thrust piece (ball or tip)Spindle head with hexagon drive and impulse impact surfaceNitrocarburized spindle surfacewear and corrosion resistantRolled fine threadwith the same effort - more pressureIn heat-treated steel as per EN 10083Spindle remains smooth and clean - no need to grease or oil Technical features:Width across flats 1 [mm]: 17Net weight [kg]: 0,2 kgUsable thread length [mm]: 140 mmTotal length [mm]: 195 mmSpindle thread size: M 14x1,5Gedore Code-Number: 1546821EAN: 4036976118391

€28.95*

Prices incl. VAT plus shipping costs

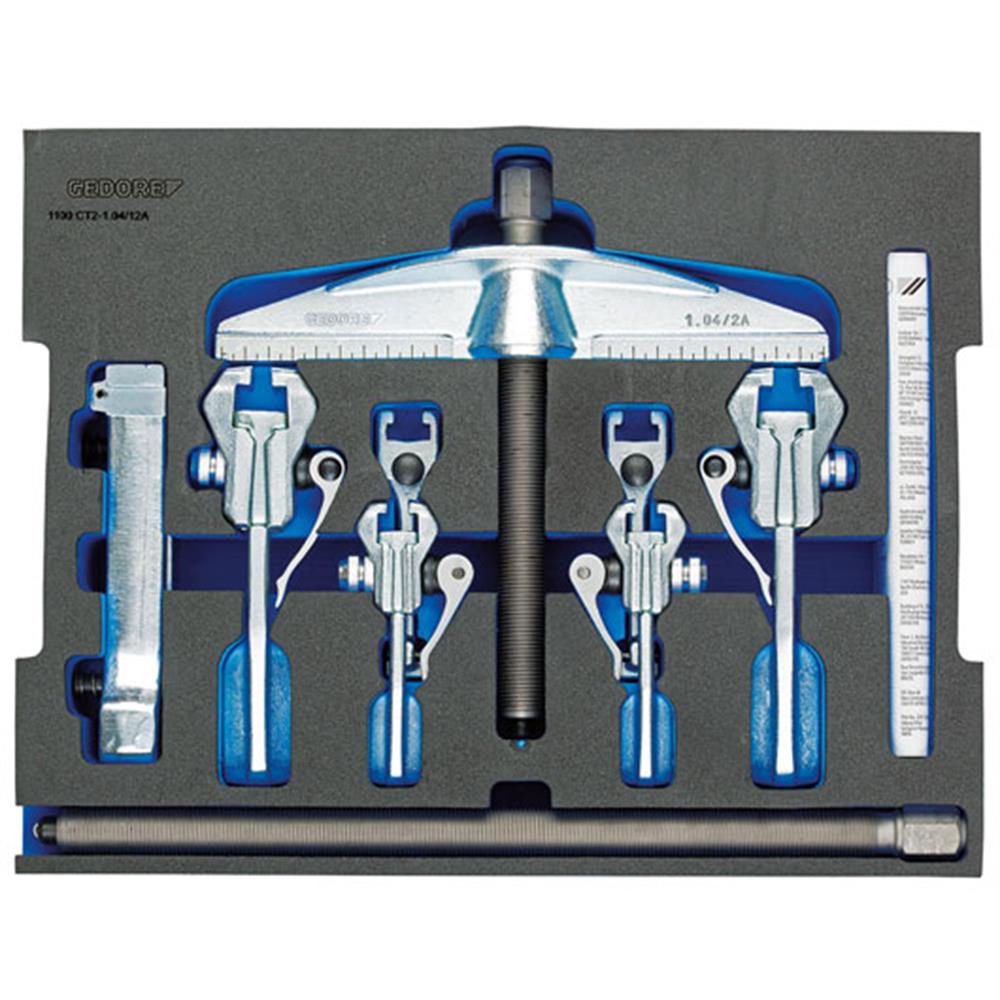

Gedore 1100 CT2-1.04/12A Puller set in 2/2 L-BOXX 136 module
