Gedore 1.04/3A-B Universal puller, 2-arm pattern, rigid legs with leg brake 350x200 mm
€378.95*
Content:
1 pcs
/ 5
Delivery time 5 working days
Variante
Product number:
1813414
Manufacturer no.:
1981137
EAN:
4036976121766
Weight in kg:
7.7
Product information "Gedore 1.04/3A-B Universal puller, 2-arm pattern, rigid legs with leg brake 350x200 mm"
Gedore 1.04/3A-B Universal puller, 2-arm, 350 x 200 mm, with hook brake
Gedore 1.04/3A-B Universal puller, 2-arm, 350 x 200 mm, with hook brake
Features:
- Due to the bending-moment reinforcement on its back face
- the energy-saving design of the cross-beam means even stronger and safer pulling work
- Strong drop forged pattern
- Pulling legs forged from one piece
- The legs clamp automatically when under tension
- With leg brake - prevents unintentional leg slipping. The leg can be slid along the cross-beam at the push of a button
- Can be used as external and internal puller by repositioning the legs
- Scale for uniform adjustment of the puller legs. Allows centred pulling
- with optimised application of force
- even when extremely high pulling forces are required
- Exchangeable spindle tip (ball or tip)
- Spindle thermo-chemically hardened
- Upgradeable with hydraulic spindle
Technical features:
- Number of arms: 2
- Number of hooks: 2
- Tractive force (max.) [t]: 7,5
- Hydraulic spindle optional: 1.06/HSP2

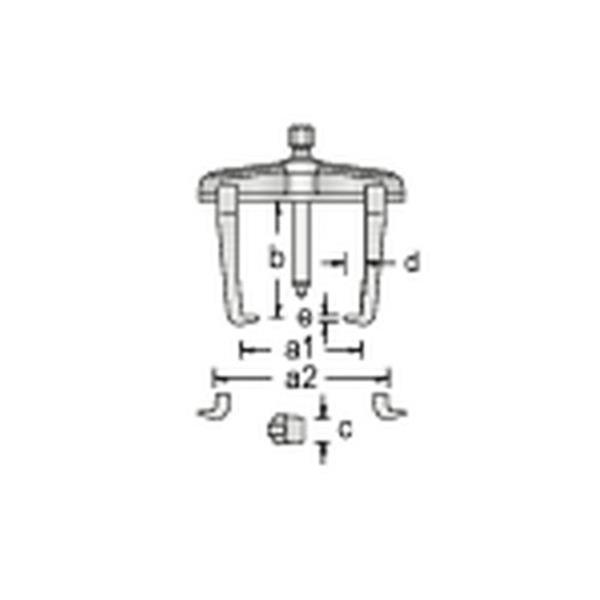

- Clamping width a2 (min.) internal pulling [mm]: 150 mm
- Usable clamping reach [mm]: 200 mm
Gedore Code-Number: 1981137
EAN: 4036976121766
