Gedore 1.04/HP2A Universal puller HIGH POWER 2-arm pattern 200x150 mm
€224.95*
Content:
1 pcs
/ 62
Please request delivery time
Variante
Product number:
273841
Manufacturer no.:
1868160
EAN:
4036976113518
Weight in kg:
3.09
Product information "Gedore 1.04/HP2A Universal puller HIGH POWER 2-arm pattern 200x150 mm"
Gedore 1.04/HP2A Universal puller, 2-arm, 200x150 mm, HIGH POWER
Gedore 1.04/HP2A Universal puller, 2-arm, 200x150 mm, HIGH POWER
Features:
- Cross-beam especially hardened and tempered allows safe application of extremely high pulling forces and doubles the tensile force capability
- Strong drop forged pattern
- Can be used as external and internal puller by repositioning the legs
- Scale for uniform adjustment of the puller legs. Allows centred pulling
- with optimised application of force
- even when extremely high pulling forces are required
- Integral legs
- with quick-release
- Exchangeable and rotatable thrust piece (ball or tip)
- Spindle thermo-chemically hardened
- Upgradeable with hydraulic spindle
Technical features:
- Number of arms: 2
- Number of hooks: 2
- Tractive force (max.) [t]: 10
- Hydraulic spindle optional: 1.06/HSP1
- Load of the entire puller (max.) [t]: 10 t

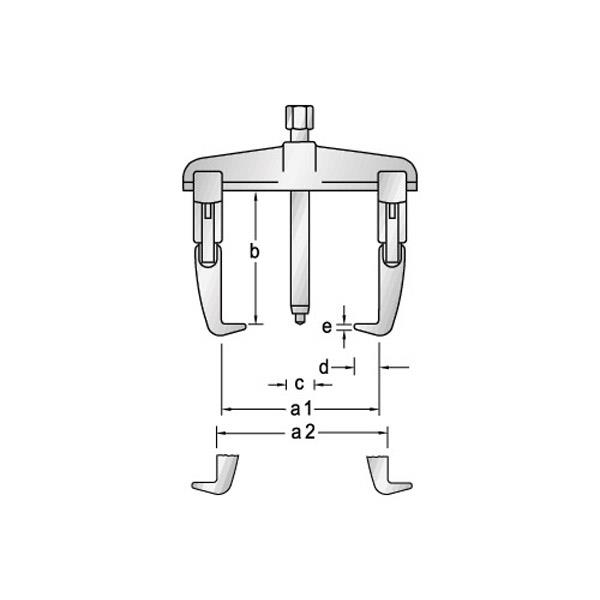

- Clamping width a2 (min.) internal pulling [mm]: 110 mm
Gedore Code-Number: 1868160
EAN: 4036976113518
