Gedore 1.04/HP3A-B Universal puller HIGH POWER 2-a rm pattern, rigid legs with leg brake 350x200 mm
€377.95*
Content:
1 pcs
/ 5
Delivery time 5 working days
Variante
Product number:
1813417
Manufacturer no.:
1981161
EAN:
4036976121797
Weight in kg:
7.7
Product information "Gedore 1.04/HP3A-B Universal puller HIGH POWER 2-a rm pattern, rigid legs with leg brake 350x200 mm"
Gedore 1.04/HP3A-B Universal puller, HIGH POWER 2-arm, 350 x 200 mm
Gedore 1.04/HP3A-B Universal puller, HIGH POWER 2-arm, 350 x 200 mm
Features:
- Cross-beam especially hardened and tempered allows safe application of extremely high pulling forces and doubles the tensile force capability
- Strong drop forged pattern
- Pulling legs forged from one piece
- With leg brake - prevents unintentional leg slipping. The leg can be slid along the cross-beam at the push of a button
- Can be used as external and internal puller by repositioning the legs
- Scale for uniform adjustment of the puller legs. Allows centred pulling
- with optimised application of force
- even when extremely high pulling forces are required
- Upgradeable with hydraulic spindle
Technical features:
- Number of arms: 2
- Number of hooks: 2
- Tractive force (max.) [t]: 15
- Hydraulic spindle optional: 1.06/HSP2
- Load of the entire puller (max.) [t]: 15 t

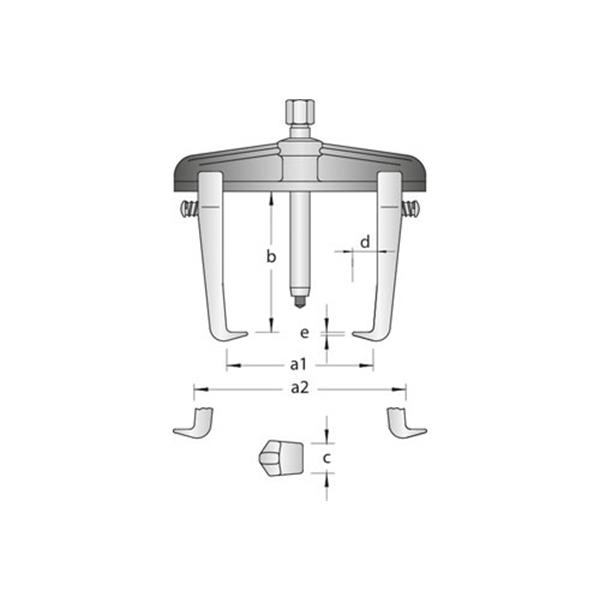

- Clamping width a2 (min.) internal pulling [mm]: 150 mm
Gedore Code-Number: 1981161
EAN: 4036976121797
