Gedore 1.06/2-3 Universal puller, 2-arm pattern 16 0x300 mm
€177.95*
Content:
1 pcs
/ 5
Delivery time 5 working days
Variante
Product number:
107185
Manufacturer no.:
8108510
EAN:
4036976103427
Weight in kg:
4.4
Product information "Gedore 1.06/2-3 Universal puller, 2-arm pattern 16 0x300 mm"
Gedore 1.06/2-3 Universal puller, 2-arm, 160x300 mm
Gedore 1.06/2-3 Universal puller, 2-arm, 160x300 mm
Features:
- Strong drop forged pattern
- Scale for uniform adjustment of the puller legs. Allows centred pulling
- with optimised application of force
- even when extremely high pulling forces are required
- Extended pulling legs
- Can be used as external and internal puller by repositioning the legs
- Interchangeable legs available for several clamping depths
- Upgradeable with hydraulic spindle (see table)

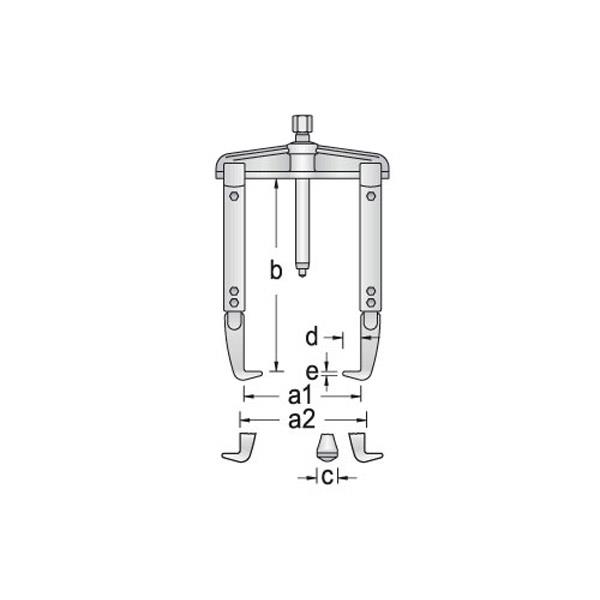

Technical features:
- Number of arms: 2
- Number of hooks: 2
- Tractive force (max.) [t]: 5
- Hydraulic spindle optional: 1.06/HSP1
- Clamping width (max.) external pulling [mm]: 160 mm
- Usable depth of hooked foot d2 [mm]: 18 mm
Gedore Code-Number: 8108510
EAN: 4036976103427
