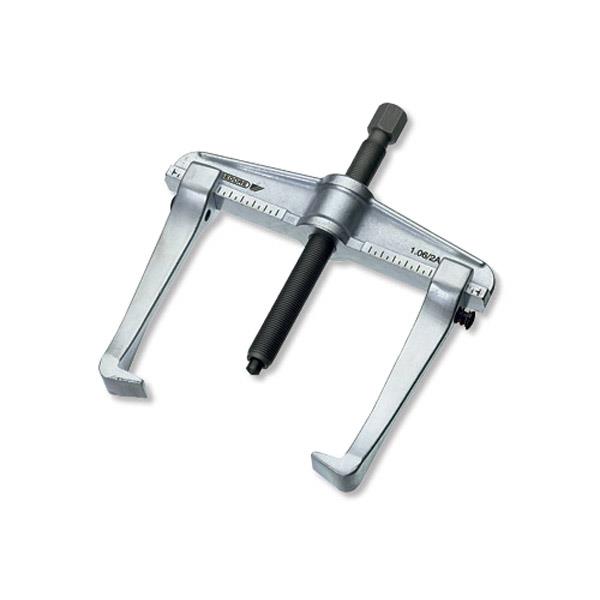

Gedore 1.06/2A1-B Universal puller, 2-arm pattern, rigid legs with leg brake 210x150 mm
€152.95
Content:
1 pcs
/ 5
Delivery time 5 working days
Variante
Product number:
993522
Manufacturer no.:
1956361
EAN:
4036976120905
Weight in kg:
3.3
Product information "Gedore 1.06/2A1-B Universal puller, 2-arm pattern, rigid legs with leg brake 210x150 mm"
Gedore 1.06/2A1-B Universal puller, with hook brake
Gedore 1.06/2A1-B Universal puller, with hook brake
Features:
- Strong drop forged pattern
- Pulling legs forged from one piece
- With leg brake - prevents unintentional leg slipping. The leg can be slid along the cross-beam at the push of a button
- Scale for uniform adjustment of the puller legs. Allows centred pulling
- with optimised application of force
- even when extremely high pulling forces are required
- Can be used as external and internal puller by repositioning the legs
- Interchangeable legs available for several clamping depths
Technical features:
- Number of arms: 2
- Number of hooks: 2
- Tractive force (max.) [t]: 5
- Hydraulic spindle optional: 1.06/HSP1
- Usable clamping reach [mm]: 150 mm
- Clamping width (max.) external pulling [mm]: 210 mm
Gedore Code-Number: 1956361
EAN: 4036976120905
