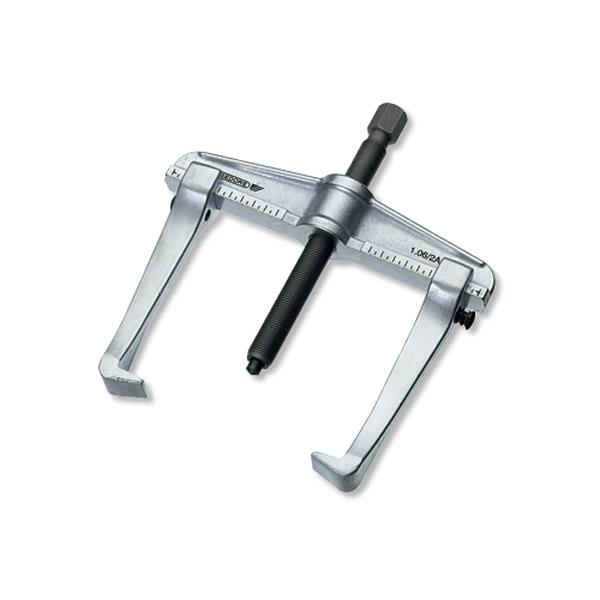

Gedore 1.06/3A1-B Universal puller, 2-arm pattern, rigid legs with leg brake 340x200 mm
€331.95
Content:
1 pcs
/ 5
Delivery time 5 working days
Variante
Product number:
993523
Manufacturer no.:
1956396
EAN:
4036976121018
Weight in kg:
7.54
Product information "Gedore 1.06/3A1-B Universal puller, 2-arm pattern, rigid legs with leg brake 340x200 mm"
Gedore 1.06/3A1-B Universal puller, with hook brake
Gedore 1.06/3A1-B Universal puller, with hook brake
Features:
- Strong drop forged pattern
- Pulling legs forged from one piece
- With leg brake - prevents unintentional leg slipping. The leg can be slid along the cross-beam at the push of a button
- Scale for uniform adjustment of the puller legs. Allows centred pulling
- with optimised application of force
- even when extremely high pulling forces are required
- Can be used as external and internal puller by repositioning the legs
- Interchangeable legs available for several clamping depths
Technical features:
- Number of arms: 2
- Number of hooks: 2
- Tractive force (max.) [t]: 7,5
- Hydraulic spindle optional: 1.06/HSP2

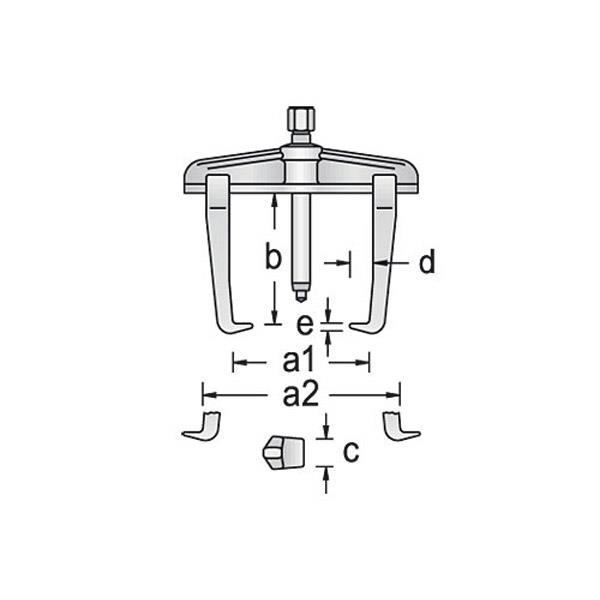

- Clamping width a2 (min.) internal pulling [mm]: 125 mm
- Usable clamping reach [mm]: 200 mm
Gedore Code-Number: 1956396
EAN: 4036976121018
