Gedore 1.06/40 Puller for hydraulic implement 1.50 , 520x200 mm
Product number:
107276
Manufacturer no.:
8112620
EAN:
4036976103755
Weight in kg:
10.94
Product information "Gedore 1.06/40 Puller for hydraulic implement 1.50 , 520x200 mm"
Gedore 1.06/40 Puller for hydraulic implement 1.50, 520x200 mm
Gedore 1.06/40 Puller for hydraulic implement 1.50, 520x200 mm
Features:
- For the fast and damage-free removal of pulleys
- wheels
- ball bearings
- etc.
- Robust pattern
- designed for rigidity and heavy duty use
- Can be used as external and internal puller by repositioning the legs
- The reach may be increased both by using pulling legs in special lengths
- and by using extensions

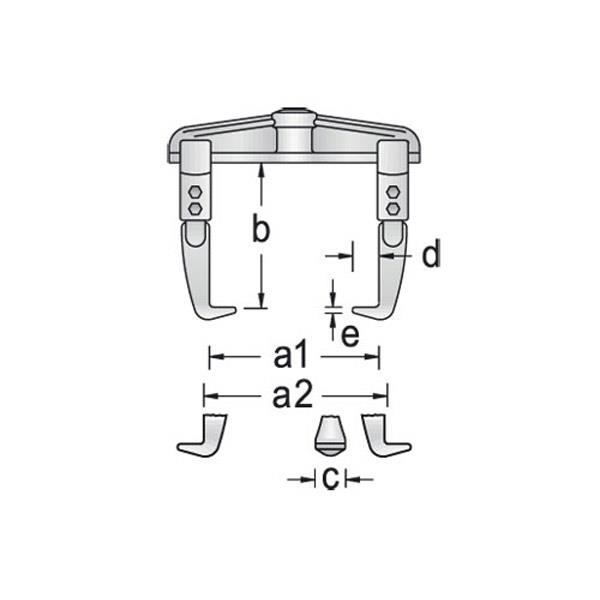

Technical features:
- Number of arms: 2
- Tractive force (max.) [t]: 10
- Net weight [kg]: 11 kg
- Clamping width a2 (min.) internal pulling [mm]: 185 mm
- Usable clamping reach [mm]: 200 mm
- Width of hooked foot [mm]: 36 mm
Gedore Code-Number: 8112620
EAN: 4036976103755
