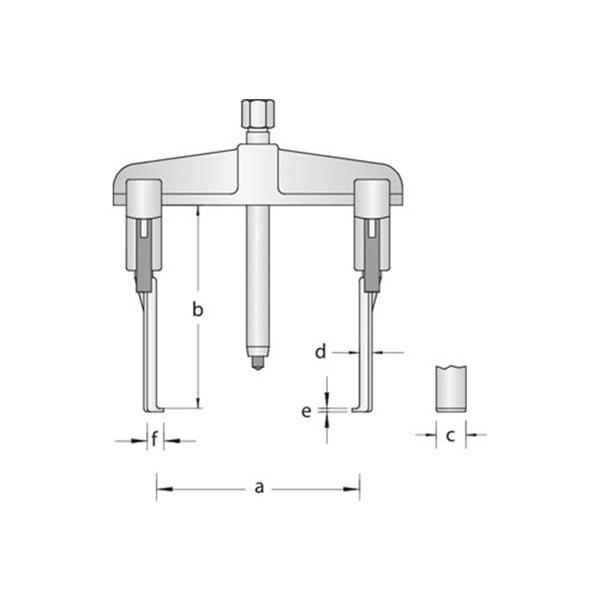

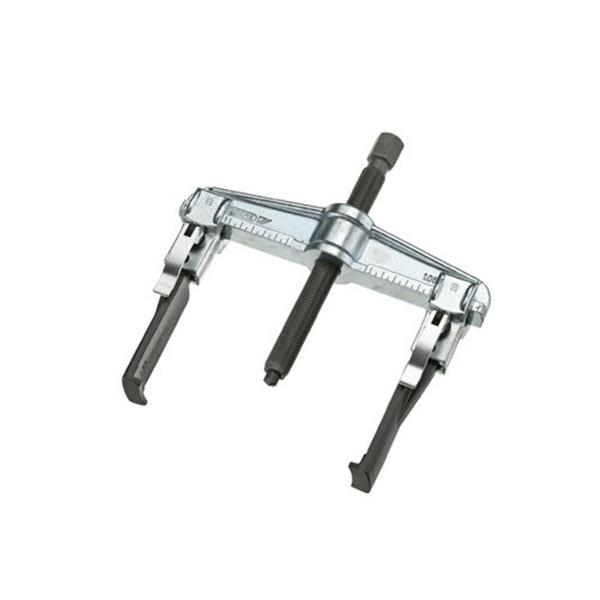

Gedore 1.06/S1A-E Quick-release puller, 2-arm patt ern, with slim legs 140x100 mm
€131.95
Content:
1 pcs
/ 5
Delivery time 5 working days
Variante
Product number:
1813419
Manufacturer no.:
2015714
EAN:
4036976123463
Weight in kg:
1.36
Product information "Gedore 1.06/S1A-E Quick-release puller, 2-arm patt ern, with slim legs 140x100 mm"
Gedore 1.06/S1A-E Quick-action puller 2-arm, with slim hooks 140x100 mm
Gedore 1.06/S1A-E Quick-action puller 2-arm, with slim hooks 140x100 mm
Features:
- The forged leg feet are very slim
- Particularly suitable for barely accessible places
- Scale for uniform adjustment of the puller legs. Allows centred pulling
- with optimised application of force
- even when extremely high pulling forces are required
- Quick release legs for fast
- easy set-up and adjustment
Technical features:
- Number of arms: 2
- Tractive force (max.) [t]: 2,5
- Hydraulic spindle optional: -
- Net weight [kg]: 1,4 kg
- Usable clamping reach [mm]: 100 mm
- Depth of hooked foot [mm] 3: 13,5 mm
Gedore Code-Number: 2015714
EAN: 4036976123463
