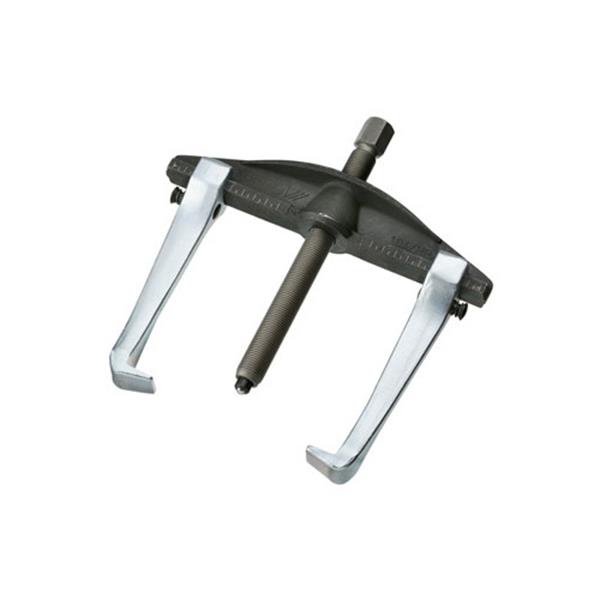

Gedore 1.06/S2-E Quick-release puller, 2-arm patte rn, with slim legs 160x150 mm
€189.95
Content:
1 pcs
/ 5
Delivery time 5 working days
Variante
Product number:
1813420
Manufacturer no.:
2015722
EAN:
4036976123470
Weight in kg:
2.9
Product information "Gedore 1.06/S2-E Quick-release puller, 2-arm patte rn, with slim legs 160x150 mm"
Gedore 1.06/S2-E Quick-action puller 2-arm, with slim hooks 160x150 mm
Gedore 1.06/S2-E Quick-action puller 2-arm, with slim hooks 160x150 mm
Features:
- The forged leg feet are very slim
- Particularly suitable for barely accessible places
- Scale for uniform adjustment of the puller legs. Allows centred pulling
- with optimised application of force
- even when extremely high pulling forces are required
- Quick release legs for fast
- easy set-up and adjustment

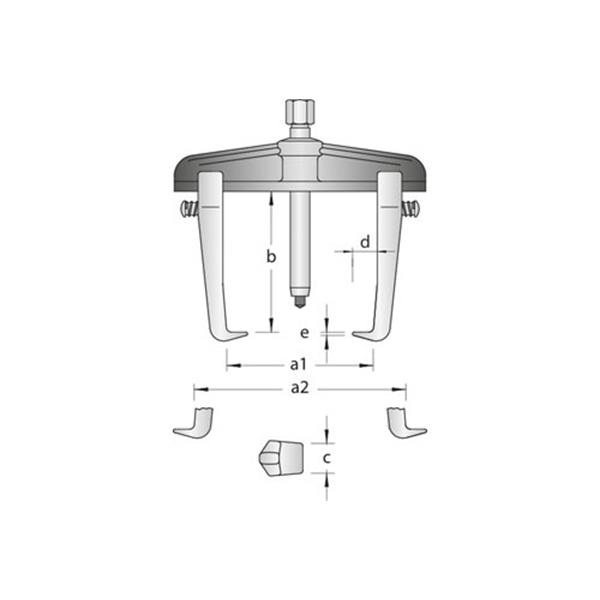

Technical features:
- Number of arms: 2
- Tractive force (max.) [t]: 5
- Hydraulic spindle optional: 1.06/HSP1
- Depth of hooked foot [mm] 3: 15 mm
- Usable clamping reach [mm]: 150 mm
- Clamping width (max.) external pulling [mm]: 160 mm
Gedore Code-Number: 2015722
EAN: 4036976123470
