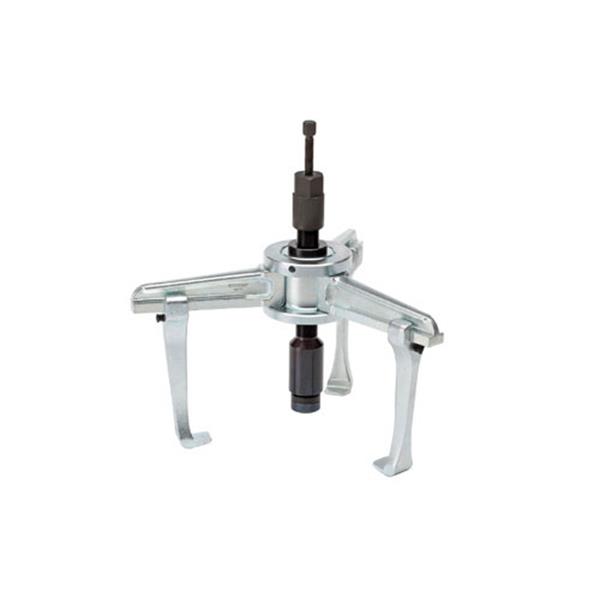

Gedore 1.07/4A1-B-HSP3 Universal puller, hydraulic , 3-arm pattern, rigid legs with leg brake
€1,538.95
Content:
1 pcs
/ 5
Delivery time 5 working days
Variante
Product number:
1852054
Manufacturer no.:
2546582
EAN:
4036976126068
Weight in kg:
23.1
Product information "Gedore 1.07/4A1-B-HSP3 Universal puller, hydraulic , 3-arm pattern, rigid legs with leg brake"
Gedore 1.07/4A1-B-HSP3 Universal puller, hydraulic, 3-arm pattern, rigid legs with leg brake
Features:
- Just like our standard model no. 1.06, this puller is designed for all branches of industry, but particularly for the construction of electric motors
- It is also suitable for removing heavy, multistage V-belt pulley wheels, flywheels, gear wheels, etc.
- Pins are used to lock the arms at 120 degrees to each other on the hub
- Rigid legs forged from one piece
- Leg brake - prevents unintentional leg slipping. The leg can be slid along the cross-beam at the push of a button
- By reversing the legs, this tool can be used as an internal or external puller
- This puller may also be used with the hydraulic aid 1.50 without requiring any reduction bushing
- Also available with further legs - please request
Technical Data:
- Weight: 23,1 kg

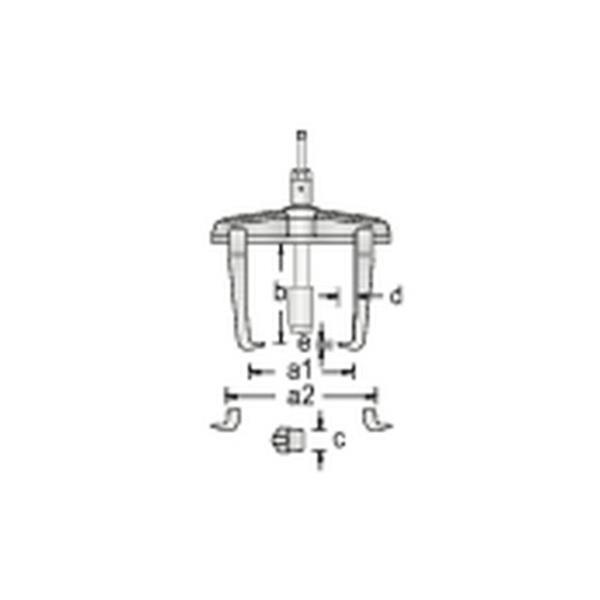

- Clamping spread -max- external pulling (a, a1): 580 mm
- Clamping spread -max- internal pulling (a2): 640 mm
- Clamping reach: 75 mm
- Width of hooked foot (c): 36 mm
- Depth of hooked foot (d): 28 mm
- Thickness of hooked foot at tip (e): 6,5 mm
- Loading max. t: 10 t
- Hydraulic spindle: 1.06/HSP3
- Loading max. N.m: 25 N·m
