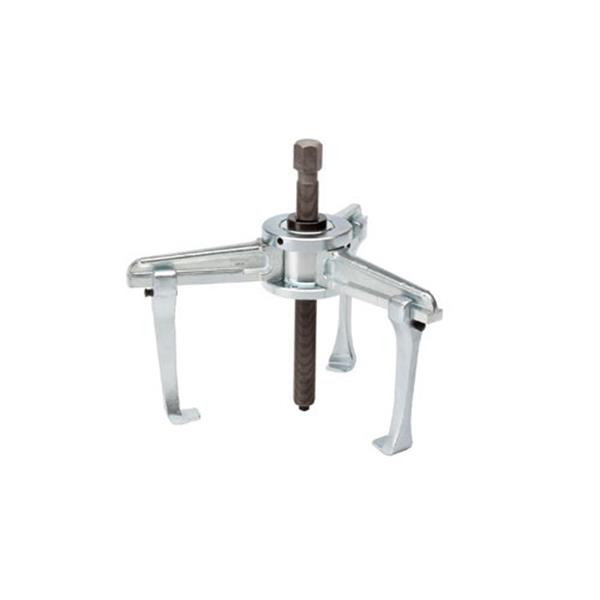

Gedore 1.07/4A1-B Universal puller, 3-arm pattern, rigid legs with leg brake 580x200 mm
€1,171.95
Content:
1 pcs
/ 62
Please request delivery time
Variante
Product number:
1852051
Manufacturer no.:
2546558
EAN:
4036976126020
Weight in kg:
22
Product information "Gedore 1.07/4A1-B Universal puller, 3-arm pattern, rigid legs with leg brake 580x200 mm"
Gedore 1.07/4A1-B Universal puller 3-arm 580x200mm
Gedore 1.07/4A1-B Universal puller 3-arm 580x200mm
Features:
- Industrial quality
- 3 arms for optimum load distribution
- non-tilting and gentle on material
- Strong
- ergonomically shaped cross beam
- Hook red-hot drop-forged
- All-steel hooks positively connected to the crossbar
- With patented hook brake - quick adjustment and secure fixing of the hooks
- at the push of a button
- Can be used as internal puller by repositioning the hooks
- Nitrocarburized spindle surface
- wear and corrosion resistant
- Spindle remains smooth and clean - no need to grease or oil
- Crosspiece can be combined with other spindle/hook designs and lengths from the GEDORE puller construction kit
Technical features:
- Typee of use: Internal and external pulling
- Number of arms: 3
- Tractive force (max.) [t]: 10
- Hydraulic spindle optional: 1.06/HSP3
- Total length [mm]: 137 mm
- Clamping width (min.) external pulling [mm]: 150 mm
Gedore Code-Number: 2546558
EAN: 4036976126020
