Gedore 1.07/K-1-SE 200 S Puller set with 6 legs 90 x100/200 mm
€413.95
Content:
1 pcs
/ 5
Delivery time 5 working days
Product number:
1844410
Manufacturer no.:
1745158
EAN:
4036976112825
Weight in kg:
4.2
Product information "Gedore 1.07/K-1-SE 200 S Puller set with 6 legs 90 x100/200 mm"
Gedore 1.07/K-1-SE 200S Puller set with 6 hooks, 90x100/200 mm
Gedore 1.07/K-1-SE 200S Puller set with 6 hooks, 90x100/200 mm
Features:

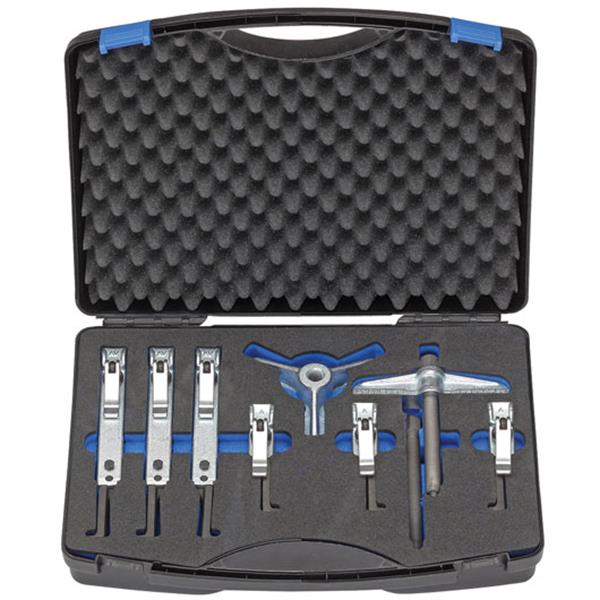

- In robust plastic case
- The forged hooked feet are particularly suitable for difficult-to-access places
- Quick release legs for fast
- easy set-up and adjustment
- Contents: 2 spindles
- 1 cross-beam each 2- and 3-arm pattern thin quick-grip pulling legs of the 100 and 200 mm clamping depths

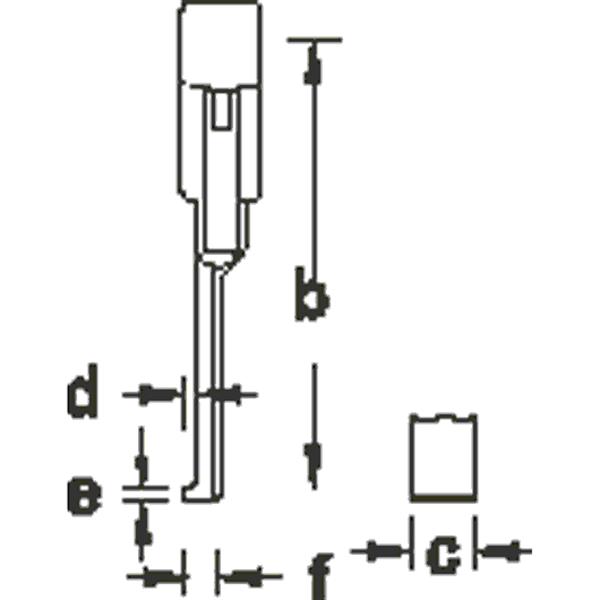

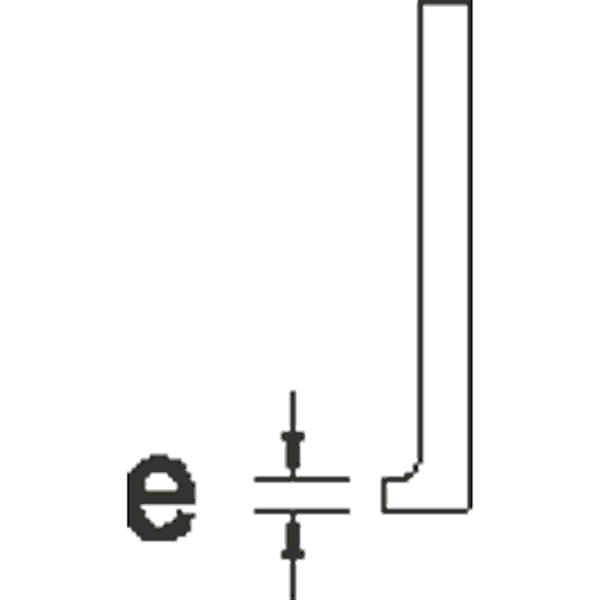

- Clamping depth 100 mm = hook foot thickness (e) 3.7 mm
- max. 2.5 t
- Clamping depth 200 mm = hook foot thickness (e) 2.0 mm
- max. 2.0 t
Technical features:
- Tractive force (max.) 2 [t]: 2,0
- Tractive force (max.) [t]: 2,5
- Contents (Qty of pieces): 9
- Usable clamping reach: 100 - 200 mm
- Parts list: 106/203 Cross beam 2-arm 220 mm 07/203 Cross beam 3-arm 220 mm 06/A-100-SE Pull-off hook with quick release clamping piece 100 mm (3x) 6/S-200-SSE Slim pull-off hook with quick release clamping piece 200 mm (3x) -1.1406140 Spindle 17, M14x1.5, 140 mm (2x) 07/199-SE 200S Plastic case with foam insert for 1.07/K-1-SE 200S
- Width across flats [mm]: 17 mm
- Hook foot thickness at the tip 2 e1 [mm]: 2,0 mm
Gedore Code-Number: 1745158
EAN: 4036976112825
