Gedore 1.09/1 Puller TWIST+PULL, 3-arm pattern, wi th rotating adjustment 30x130 mm
€341.95*
Content:
1 pcs
/ 62
Please request delivery time
Variante
Product number:
129245
Manufacturer no.:
1748173
EAN:
4036976112832
Weight in kg:
2.62
Product information "Gedore 1.09/1 Puller TWIST+PULL, 3-arm pattern, wi th rotating adjustment 30x130 mm"
Gedore 1.09/1 Puller TWIST PULL 3-arm with twist lock 30x130 mm
Gedore 1.09/1 Puller TWIST PULL 3-arm with twist lock 30x130 mm
Features:
- The precise manufactured head allows fast and exact use
- The legs open by simple rotation and enclose automatically the part to be removed
- No more time-consuming set-up and readjusting of the legs
- High-quality steel and thermo-chemical treatment guarantee highest toughness of the spindle and the legs
- Ball or tip can easily be exchanged

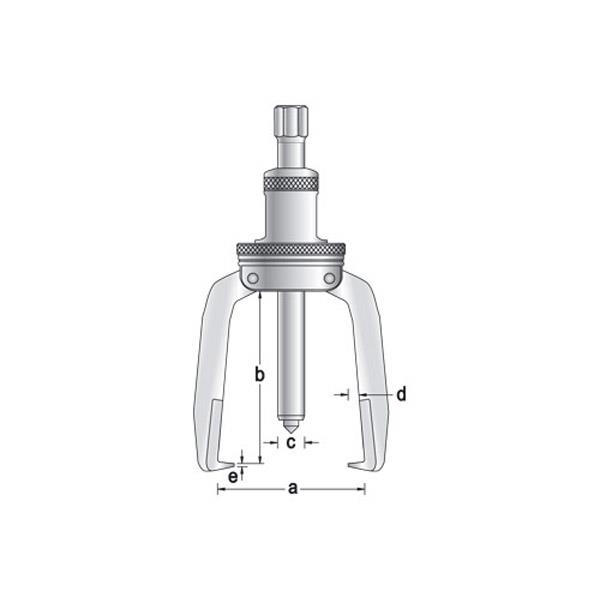

Technical features:
- Number of arms: 3
- Tractive force (max.) [t]: 6.5
- Usable depth of hooked foot d2 [mm]: 12 mm
- Usable clamping reach [mm]: 130 mm
- Clamping width a2 (max.) internal pulling [mm]: 150 mm
- Width of hooked foot [mm]: 17 mm
Gedore Code-Number: 1748173
EAN: 4036976112832
