Gedore 1.10/4 Puller, 2-arm pattern 320x260 mm
€223.95*
Content:
1 pcs
/ 5
Delivery time 5 working days
Variante
Product number:
129239
Manufacturer no.:
1731882
EAN:
4036976112771
Weight in kg:
5.1
Product information "Gedore 1.10/4 Puller, 2-arm pattern 320x260 mm "
Gedore 1.10/4 Puller 2-arm 320x260 mm
Gedore 1.10/4 Puller 2-arm 320x260 mm
Features:
- Tried and tested
- strong design for removing discs
- wheels
- ball bearings etc.
- The wide or narrow hook ends
- which can be used on both sides
- press themselves automatically when loaded
- The wide leg ends of the puller 1.10/2
- /3
- /4 and /5 possess 8 mm slots
- so that pulleys or gears may also be pulled off using 8 mm bolts

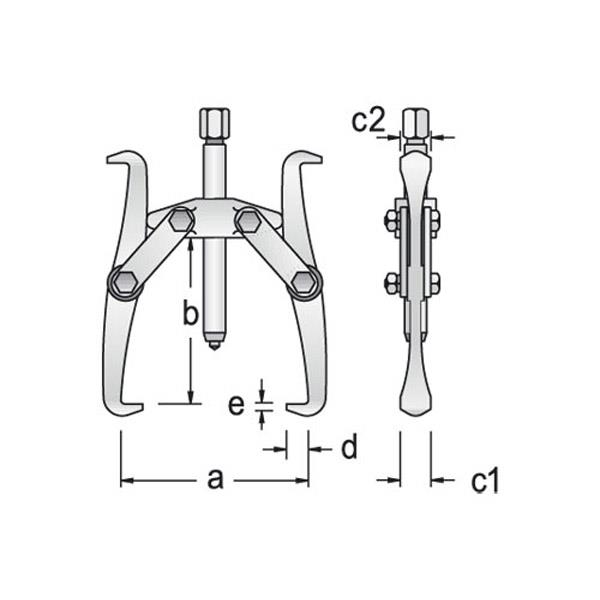

Technical features:
- Number of arms: 2
- Tractive force (max.) [t]: 8
- Hydraulic spindle optional: 1.06/HSP1
- Width across flats [mm]: 22 mm
- Usable clamping reach [mm]: 260 mm
- Width of hooked foot [mm]: 27 mm
Gedore Code-Number: 1731882
EAN: 4036976112771
