Gedore 1.20/3 Puller with clamping yoke 150x140 mm
€176.95*
Content:
1 pcs
/ 62
Please request delivery time
Variante
Product number:
107392
Manufacturer no.:
8008210
EAN:
4036976104844
Weight in kg:
3.4
Product information "Gedore 1.20/3 Puller with clamping yoke 150x140 mm "
Gedore 1.20/3 Puller with clamp 150x140 mm
Gedore 1.20/3 Puller with clamp 150x140 mm
Features:
- This puller is mainly used for pulling steering levers on cars and trucks
- The clamping yoke applies firm pressure behind the part to be moved and keeps the puller firmly in the correct position

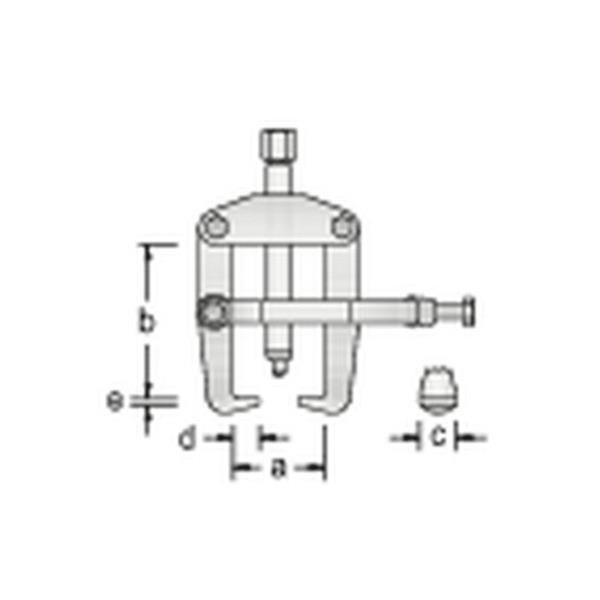

Technical features:
- Number of arms: 2
- Tractive force (max.) [t]: 7.5
- Hydraulic spindle optional: 1.06/HSP1
- Usable clamping reach [mm]: 140 mm
- Clamping width (max.) external pulling [mm]: 150 mm
- Usable depth of hooked foot d2 [mm]: 18 mm
Gedore Code-Number: 8008210
EAN: 4036976104844
