Gedore 1.55/2 Hydraulic press, 15 t
€200.95
Content:
1 pcs
/ 5
Delivery time 5 working days
Product number:
107488
Manufacturer no.:
8024170
EAN:
4036976105841
Weight in kg:
1.8
Product information "Gedore 1.55/2 Hydraulic press, 15 t "

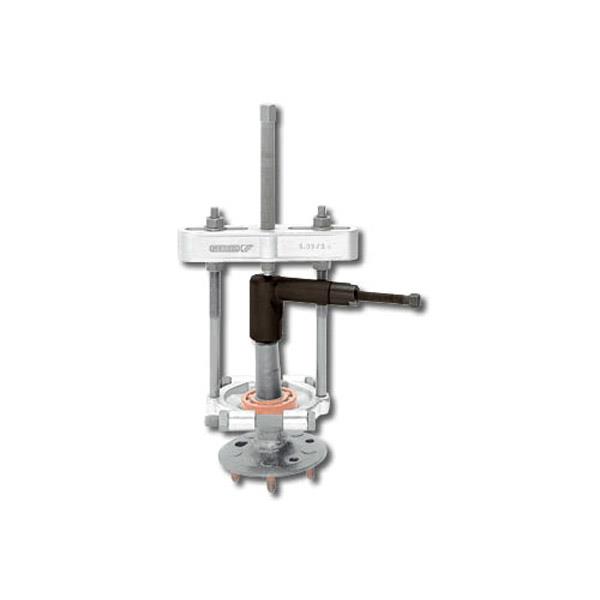

Gedore 1.55/2 Hydraulic press, 15 t
Gedore 1.55/2 Hydraulic press, 15 t
Features:
- By using the hydraulic press
- the performance of the normal pressure spindle is considerably increased
- Operation: With pressure released
- the press is placed between the pressure spindle and the end of the shaft. The pressure spindle is then tightened firmly. Care must be taken that the centreline of the shaft
- the hydraulic press
- and the pressure spindle are exactly in alignment. Then the hydraulic spindle is screwed inwards.
- Important: Release the hydraulic press after use
Technical features:
- Installation height: 90
- Net weight [kg]: 1,8 kg
- Lifting height (max.): 15 mm
- Working pressure (max.) [t]: 15,0 t
- VDE certified: No
Gedore Code-Number: 8024170
EAN: 4036976105841
Product Safety and Downloads
Documents and datasheets
Product safety information
Manufacturer
Gedore Werkzeugfabrik GmbH & Co. KG
Remscheider Straße 149
42899 Remscheid
Germany
