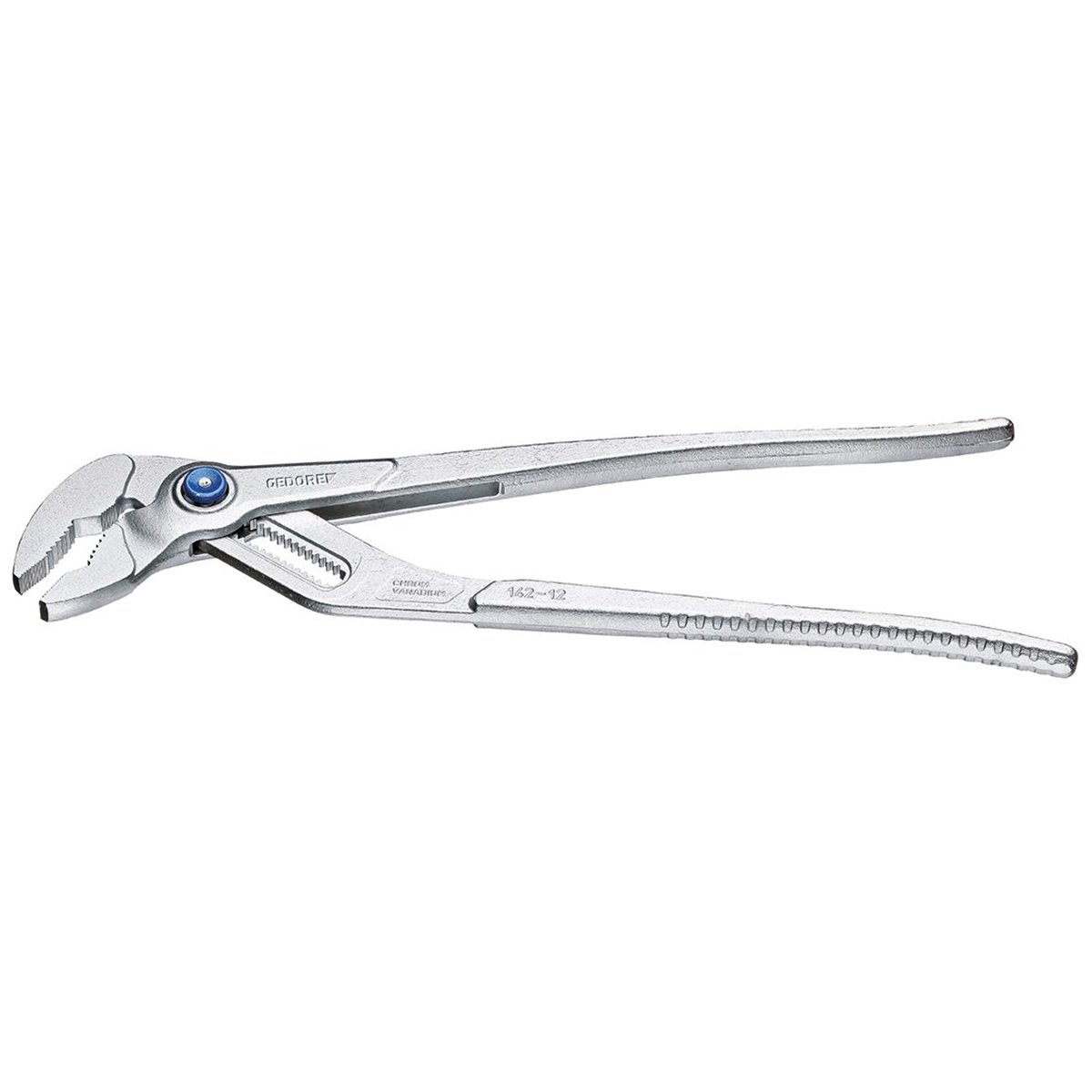

Gedore 142 12 C Universal pliers 12", 17 settings

Product information "Gedore 142 12 C Universal pliers 12", 17 settings "

Gedore 142 12 C Universal pliers 12, 17-way adjustable"



Gedore 142 12 C Universal pliers 12, 17-way adjustable"



Features:

  • Acc. to DIN ISO 8976 Form C
  • With box joint and clamping protection
  • Fine adjustment by push button
  • No. 142 12 = 17-way adjustable
  • Push-button one-hand adjustment with large actuating surface
  • Narrow pliers head for hard-to-reach places
  • Long pliers jaws
  • Offset gripping surfaces
  • self-clamping on nuts and tubes
  • GEDORE special chrome-vanadium steel
  • Induction-rehardened serrated faces
  • Design C = slim handle legs with forged ribbing
  • Span width 44 mm


Technical features:

  • Number of setting positions: 17
  • Net weight [kg]: 0,53 kg
  • Total height [mm]: 21 mm
  • Total length [mm]: 300 mm
  • Jaw length L3 [mm]: 43 mm
  • Clamping width [mm]: 44 mm

Gedore Code-Number: 1995553
EAN: 4010886877456

Design/type: standard length
Handles: plastic-coated, metal handle, mutli-component handle
Length: 180, 250, 255, 260, 300, 309
Plier type: Pipe wrenches/Water pump pliers

Product Safety and Downloads

Documents and datasheets

Product safety information

Manufacturer

Gedore Werkzeugfabrik GmbH & Co. KG
Remscheider Straße 149
42899 Remscheid
Germany
info@gedore.com

Zubehör

Gedore 702 13 A Feeler gauge set, fan pattern .000 2-.035"
Gedore 702 13 A Feeler gauge set, fan pattern .0002-.035" With protective handle, folding, blade length 100 mm 702 22 A + 702 26 A each increasing by 1/1000" Handle nickel-plated

€7.95*

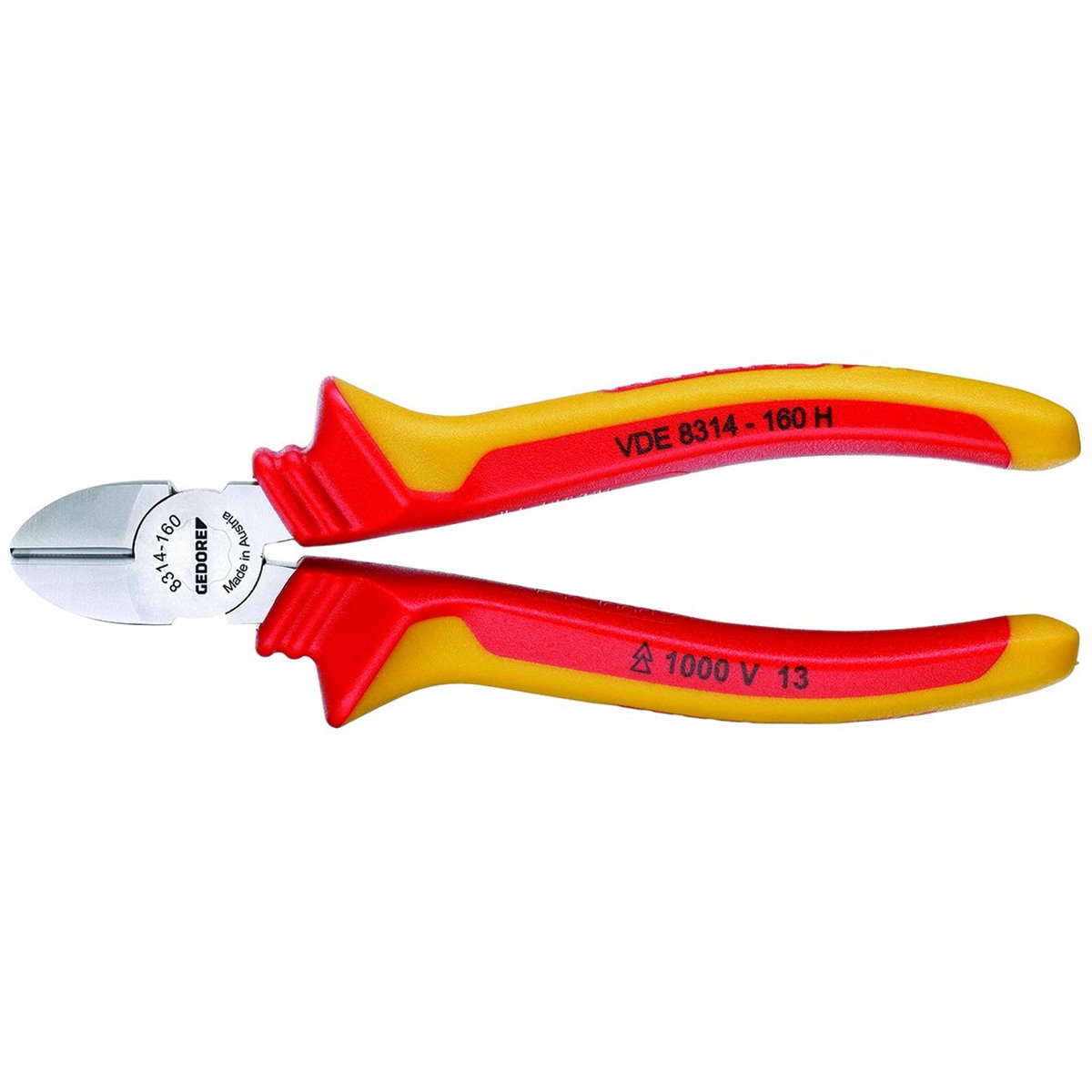

Gedore VDE 8314-160 H VDE Side cutter with VDE ins ulating sleeves 160 mm
Gedore VDE 8314-160 H VDE Diagonal cutters with sleeve insulation 160 mm Gedore VDE 8314-160 H VDE Diagonal cutters with sleeve insulation 160 mm Features:With slender headideal for confined spacesInduction-hardened precision cutting edgeshardness 63 - 65 HRCGEDORE special hardened and tempered steeldrop-forgedoil-hardened and annealedHandles with VDE insulating sleeves up to 1000 Vacc. to EN 60900/IEC 60900 Technical features:Net weight [kg]: 0,231 kgHead thickness [mm] T1: 10,0 mmTotal length [mm]: 160 mmHead height 1 [mm]: 19 mmCutting edge length [mm]: 19 mmWidth of head 1 [mm]: 22,0 mmGedore Code-Number: 1552163EAN: 4010886816097

€26.95*
Gedore VDE 8132-160 H VDE Telephone pliers with VD E insulating sleeves 160 mm
Gedore VDE 8132-160 H VDE Flat nose pliers with cover insulation 160 mm Gedore VDE 8132-160 H VDE Flat nose pliers with cover insulation 160 mm Features:Longflat-round jawsstraight gripping facesserratedFor holdinggrippingbending and cuttingInduction-hardened precision cutting edgeshardness 61 - 63 HRCGEDORE special hardened and tempered steeldrop-forgedoil-hardened and annealedHandles with VDE insulating sleeves up to 1000 Vacc. to EN 60900/IEC 60900 Technical features:Net weight [kg]: 0,164 kgWidth of head 1 [mm]: 16,5 mmTotal length [mm]: 160 mmThickness of point: 2,5 mmTotal height [mm]: 26 mmHandle design: 2C handle covers VDE insulated up to 1000 VGedore Code-Number: 1552112EAN: 4010886816011

€24.95*
Gedore VDE 8250-180 H VDE Heavy duty combination p liers with VDE insulating sleeves 180 mm
Gedore VDE 8250-180 H VDE Power Combination pliers with VDE insulating sleeves 180 mm Gedore VDE 8250-180 H VDE Power Combination pliers with VDE insulating sleeves 180 mm Features:Individually testedFor heavy continuous useGood lever action for easy cuttingFor round and flat materialExtra long bladesInduction-hardened precision cutting edgeshardness 62 - 64 HRCFor all wire types including piano wire1.6 mmSerrated gripping facesInserted jointHigh cutting performance with guaranteed 35% less effortLegs VDE insulated up to 1000 Vaccording to EN 60900/IEC 609002-component handle protection sleevesGEDORE special hardened and tempered steeldrop-forgedoil-hardened and annealedchrome-plated Technical features:Net weight [kg]: 0,288 kgHead thickness [mm] T1: 11,0 mmTotal length [mm]: 180 mmWidth of head 1 [mm]: 25,6 mmTotal height [mm]: 29 mmHandle design: 2C handle covers VDE insulated up to 1000 VGedore Code-Number: 1550950EAN: 4010886816066

€29.95*
Gedore 407 Hacksaw
Gedore 407 Hacksaw with 2C handle Gedore 407 Hacksaw with 2C handle Features:For severing metals and steelDiverse scope of use and robust metal hacksaw with adjustment arrangementTo best serve the intended purposethe saw blade can be used both vertically and at a 40° anglePracticaltool-free clamping function of the saw blade due to blue clamping element in the handleCaptive dowel pins fix the saw bladeThe combination of lightweight aluminium bracket and a soft angled handle ensure ergonomic working and durabilityBimetal saw blade 407 A Technical features:Net weight [kg]: 0,66 kgTotal width [mm]: 133 mmTotal height [mm]: 27 mmTotal length [mm]: 405 mmMaterial: Die-cast aluminumGedore Code-Number: 1879375EAN: 4010886861394

€26.95*
