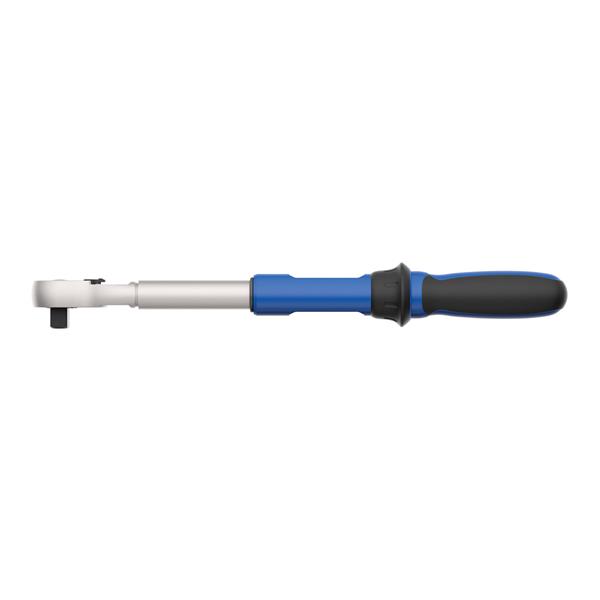

Gedore 1993 TU-10 Telescopic reversible ratchet 1/ 2"
Product number:
1908792
Manufacturer no.:
3041859
EAN:
4010886950371
Weight in kg:
1.31
Product information "Gedore 1993 TU-10 Telescopic reversible ratchet 1/ 2""
Gedore 1993 TU-10 Telescopic reversible ratchet 1/2
Gedore 1993 TU-10 Telescopic reversible ratchet 1/2
Features:
- Long lever arm for high torques
- max. torque 600 Nm

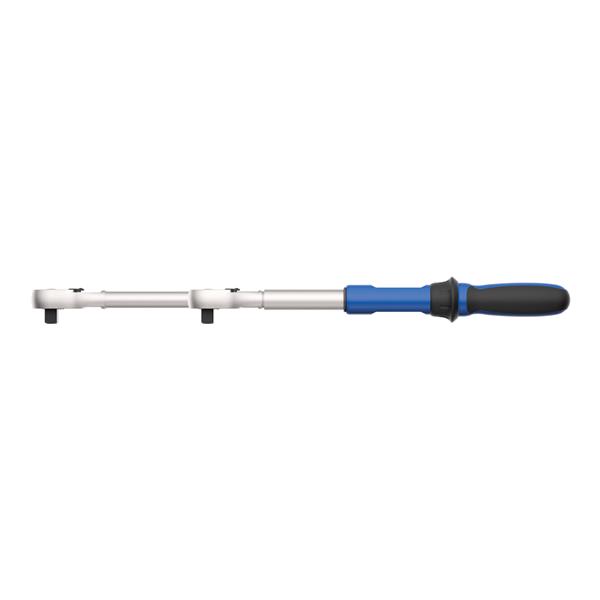

- Adjustable from 400 to 600 mm in eight steps
- With recessed lever change
- With push-button release
- Return angle 7.5°
- Non-slip 2-component handle
- Locks in the middle position: When the lever is flipped
- it automatically engages for clockwise or anti-clockwise operation
- For hand-operated sockets and accessories with square drive as per DIN 3120 - C 12.5
- ISO 1174
- ball locking device
- GEDORE vanadium steel 31CrV3
- chrome-plated
- Hot-drop forged
Technical features:
- Number of teeth: 48
- Net weight [kg]: 1,31 kg
- Drive square inch: 1/2
- Drive connector square [metric]: 12,5 mm
- Handle material: 2-components
- variable length: 400-600
Gedore Code-Number: 3041859
EAN: 4010886950371
