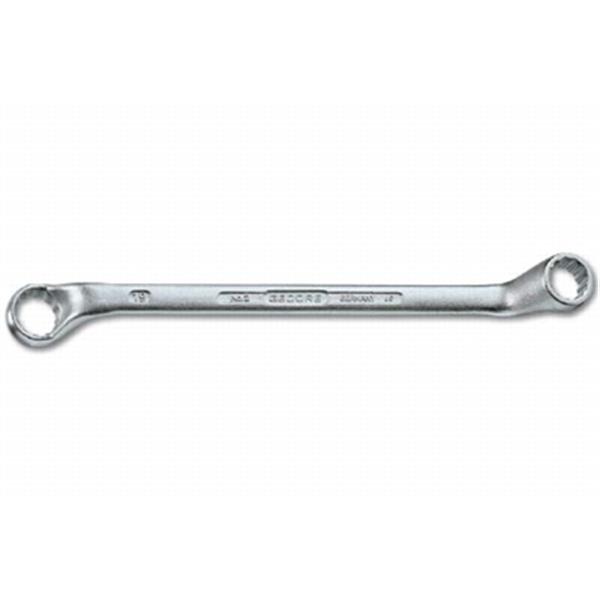

Gedore 2 30x32 Double ended ring spanner offset 30 x32 mm
€38.95
Content:
1 pcs
/ 5
Delivery time 5 working days
Variante
Product number:
100131
Manufacturer no.:
6019260
EAN:
4010886601921
Weight in kg:
0.73
Product information "Gedore 2 30x32 Double ended ring spanner offset 30 x32 mm"
Gedore 2 30X32 double ring spanner, UD profile, 30x32 mm
Gedore 2 30X32 double ring spanner, UD profile, 30x32 mm
Features:
- Acc. to DIN 838
- ISO 3318
- ISO 1085
- ISO 10104
- Rings deep offset
- strong but thin walls
- Vanadium steel 31CrV3
- chrome-plated
- Satin non-glare finish
- Carefully forged and professionally machined: Ring: thin-walled
- 5° deep offset from shaft
- with UD profile for gentle transmission of force
- High bending strength - does not fracture or splinter when overloaded
- thus minimising the risk of injury
- Overloading indicated by deformation
- For extremely deep or inset bolts
- Top-grade industrial quality for the hardest of continuous use
Technical features:
- Width across flats 1 [mm]: 30
- Width across flats 2 [mm]: 32
- Net weight [kg]: 0,731 kg
- Head height 1 [mm]: 16,4 mm
- Head height 2 [mm]: 17,4 mm
- Width across flats [mm]: 30x32
Gedore Code-Number: 6019260
EAN: 4010886601921
| Design/type: | angled, flat, offset, standard length |
|---|---|
| Size: | 30 x 32 mm |
| Spanner type: | Double ring spanner |
| Unit of measurement: | metric (mm) |
