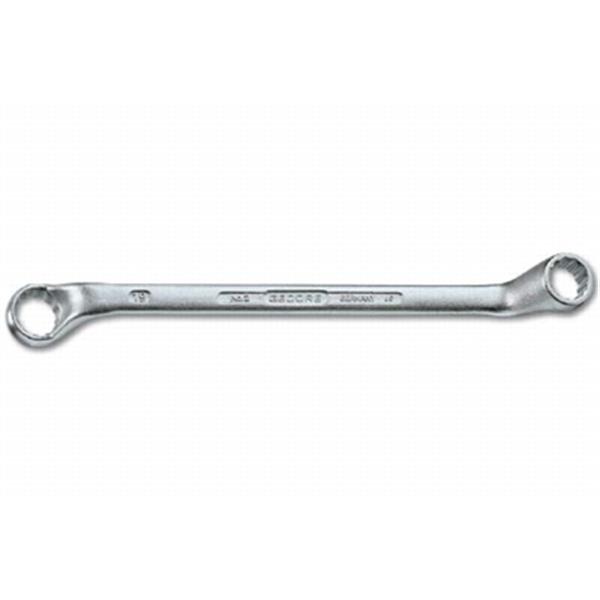

Gedore 2 46x50 Double ended ring spanner offset 46 x50 mm
€109.95
Content:
1 pcs
/ 5
Delivery time 5 working days
Variante
Product number:
100139
Manufacturer no.:
6019850
EAN:
4010886601983
Weight in kg:
2.04
Product information "Gedore 2 46x50 Double ended ring spanner offset 46 x50 mm"
Gedore 2 46X50 double ring spanner, UD profile, 46x50 mm
Gedore 2 46X50 double ring spanner, UD profile, 46x50 mm
Features:
- Acc. to DIN 838
- ISO 3318
- ISO 1085
- ISO 10104
- Rings deep offset
- strong but thin walls
- Vanadium steel 31CrV3
- chrome-plated
- Satin non-glare finish
- Carefully forged and professionally machined: Ring: thin-walled
- 5° deep offset from shaft
- with UD profile for gentle transmission of force
- High bending strength - does not fracture or splinter when overloaded
- thus minimising the risk of injury
- Overloading indicated by deformation
- For extremely deep or inset bolts
- Top-grade industrial quality for the hardest of continuous use
Technical features:
- Width across flats 1 [mm]: 46
- Width across flats 2 [mm]: 50
- Net weight [kg]: 2,035 kg
- Head height 1 [mm]: 22,2 mm
- Head height 2 [mm]: 23,6 mm
- Material: 31CrV3
Gedore Code-Number: 6019850
EAN: 4010886601983
| Design/type: | angled, flat, offset, standard length |
|---|---|
| Size: | 46 x 50 mm |
| Spanner type: | Double ring spanner |
| Unit of measurement: | metric (mm) |
