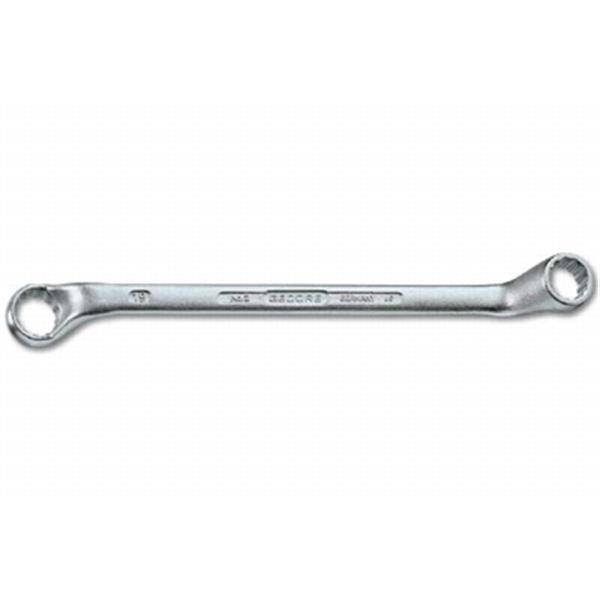

Gedore 2 8x10 Double ended ring spanner offset 8x1 0 mm
Product number:
100095
Hersteller-Nr.:
6015780
EAN:
4010886601570
Gewicht (in KG):
0.07
Product information "Gedore 2 8x10 Double ended ring spanner offset 8x1 0 mm"
Gedore 2 8X10 double ring spanner, UD profile, 8x10 mm
Gedore 2 8X10 double ring spanner, UD profile, 8x10 mm
Features:
- Acc. to DIN 838
- ISO 3318
- ISO 1085
- ISO 10104
- Rings deep offset
- strong but thin walls
- Vanadium steel 31CrV3
- chrome-plated
- Satin non-glare finish
- Carefully forged and professionally machined: Ring: thin-walled
- 5° deep offset from shaft
- with UD profile for gentle transmission of force
- High bending strength - does not fracture or splinter when overloaded
- thus minimising the risk of injury
- Overloading indicated by deformation
- For extremely deep or inset bolts
- Top-grade industrial quality for the hardest of continuous use
Technical features:
- Width across flats 1 [mm]: 8
- Width across flats 2 [mm]: 10
- Net weight [kg]: 0,072 kg
- Width of head 1 [mm]: 13,3 mm
- Width of head 2 [mm]: 15,9 mm
- Total width [mm]: 16 mm
Gedore Code-Number: 6015780
EAN: 4010886601570
| Ausführung: | Standardlänge, abgewinkelt, flach, gekröpft |
|---|---|
| Größe: | 8 x 10 mm |
| Maßeinheit: | Metrisch (mm) |
| Schlüsselform: | Doppel-Ringschlüssel |
