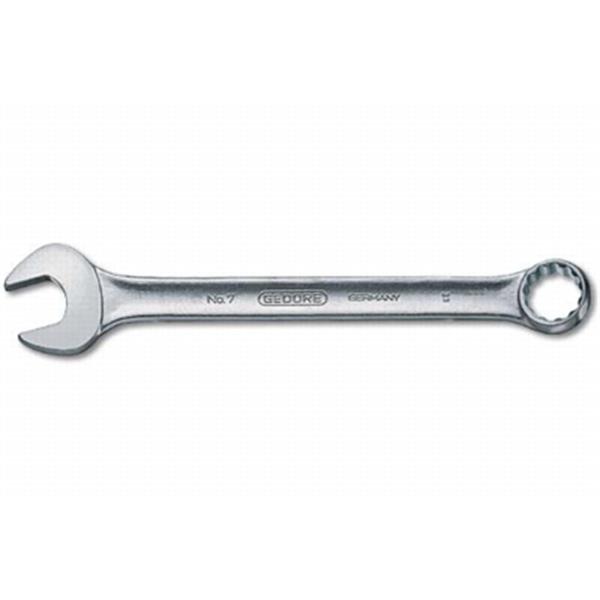

Gedore 7 10 Combination spanner 10 mm
Product number:
100433
Manufacturer no.:
6090050
EAN:
4010886609002
Weight in kg:
0.03
Product information "Gedore 7 10 Combination spanner 10 mm "
Gedore 7 10 Combination spanner UD profile 10 mm
Gedore 7 10 Combination spanner UD profile 10 mm
Features:
- Acc. to DIN 3113
- Form A
- ISO 3318
- ISO 7738
- Chrome-vanadium steel 31CrV3
- chrome-plated
- Carefully forged and professionally machined
- Slim jaw and jaw walls make this spanner lighter overall
- Jaw: ground precisely to exact nominal size for optimum contact areas
- Ring: 15° offset from shaft
- with UD profile for gentle transmission of force
- Overloading indicated by deformation
- Secure grip thanks to hollow shaft - very ergonomic and handy
- Glare-free look due to matt chrome
- Designed for universal use
- Top-grade industrial quality for the hardest of continuous use
- Size 3 to 5.5 with hexagonal ring
- from 6mm with UD profile
- * not standardised
Technical features:
- Width across flats 1 [mm]: 10
- Net weight [kg]: 0,033 kg
- Weight: 0,070 lbs
- Total height [mm]: 10 mm
- Total length [mm]: 140 mm
- Width of head 1 [mm]: 15,5 mm
Gedore Code-Number: 6090050
EAN: 4010886609002
| Design/type: | angled, flat, standard length |
|---|---|
| Size: | 10 mm |
| Spanner type: | Combination spanner |
| Unit of measurement: | metric (mm) |
