Gedore 7 R 34 Combination ratchet spanner 34 mm
Product number:
2769826
Manufacturer no.:
2219549
EAN:
4010886883419
Weight in kg:
1.01
Product information "Gedore 7 R 34 Combination ratchet spanner 34 mm "

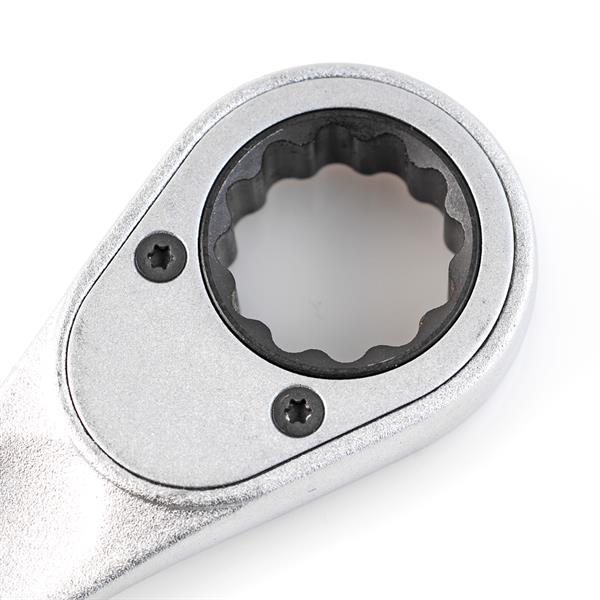

Gedore 7 R 34 Combination ratchet spanner UD profile 34 mm
Gedore 7 R 34 Combination ratchet spanner UD profile 34 mm
Features:
- With same size each end

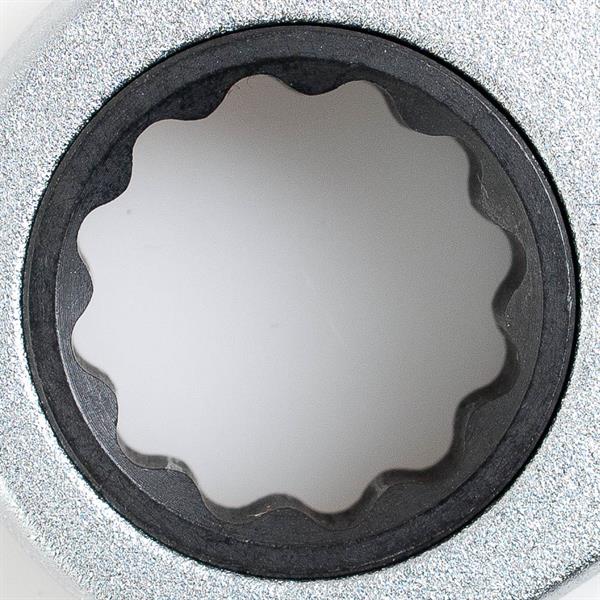

- UD-Profile
- High torque transfer
- Chrome-vanadium steel 31CrV3
- Non-glare look due to matt chrome-plating

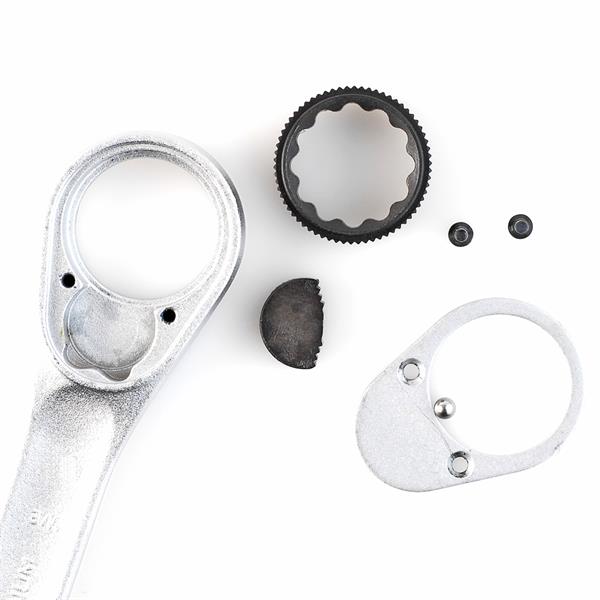

- locking insert and pawl manganese-phosphated
- Hot forged

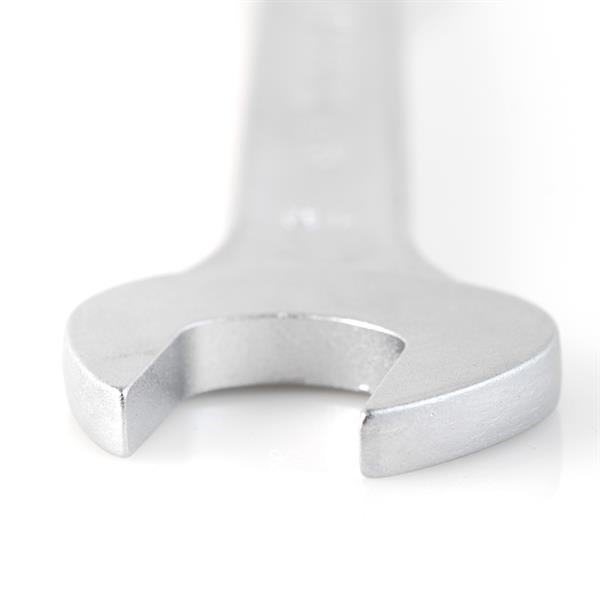

- Jaw: ground precisely to exact nominal size for optimum contact areas
- In combination with adaptor 7 RA or 7 RB (please order separately) the spanner 7 R can be used as a (bit) ratchet
- Hollow profile comfortable to hold
- Warp-resistant geometry with double T-girder effect
- For ratchet loosening and fast tightening
- Ring 13° offset from shaft
- reversible
Technical features:
- Width across flats [mm]: 34,0
- Net weight [kg]: 1,011 kg
- Jaw set: 15 °
- Head height 1 [mm]: 18,4 mm
- Total height [mm]: 19 mm
- Material: 31CrV3
Gedore Code-Number: 2219549
EAN: 4010886883419
| Design/type: | standard length, straight |
|---|---|
| Size: | 34 mm |
| Spanner type: | Combination ratchet spanner |
