Gedore 8146 Stripping pliers incl. module insert 8 146-1
€95.95*
Content:
1 pcs
/ 5
Delivery time 5 working days
Variante
Product number:
111197
Manufacturer no.:
1830805
EAN:
4010886855188
Weight in kg:
0.18
Product information "Gedore 8146 Stripping pliers incl. module insert 8 146-1"

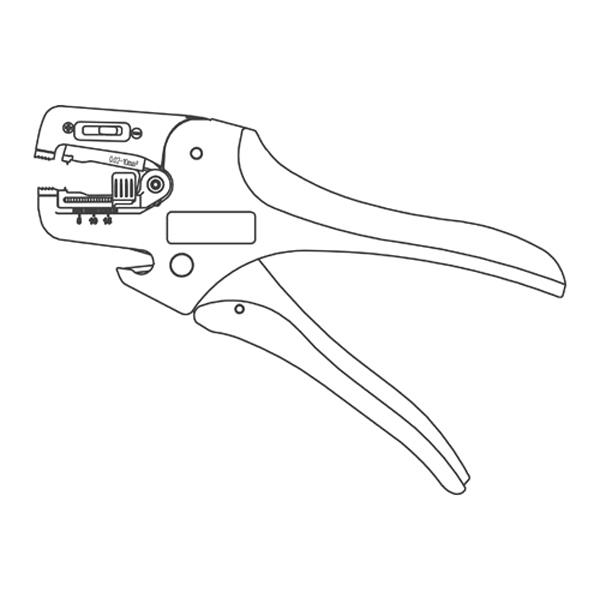

Gedore 8146 Stripping pliers incl. module insert 8146-1
Gedore 8146 Stripping pliers incl. module insert 8146-1
Features:
- Self-adjusting cutting and stripping tool (No. 8146) for modern electrical installations and equipment circuitry (90 % of all wires can be stripped without any adjustment of the tool)

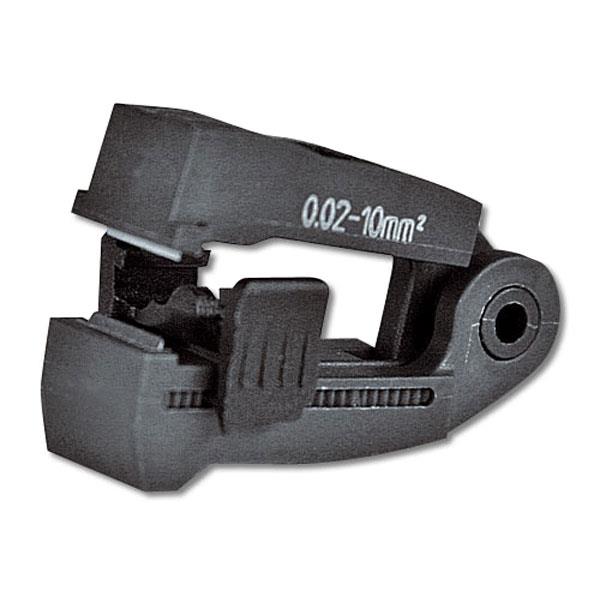

- The use of easily exchangeable module inserts allows accurate stripping of a wide range of insulation materials
- including PVC and PTFE
- with just one tool
- With flat blade
- Dimensions: 191 x 123 x 20 mm
- Stripping capacity: No. 8146-1 with flat blade: 0.02-10 mm²/AWG 34-8 (for PVC insulation)
- No. 8146-2 with circular blade: 4-16 mm²/AWG 10-5
- No. 8146-3 with V-blade: PTFE 0.1- 4 mm²/AWG 28-12 (for all insulations)
- Cutting values: Flexible conductors up to 10 mm²/AWG 8
- Rigid wires up to 1.5 mm² / AWG 16
Technical features:
- Cable cross section [mm²]: 0,02-10
- Net weight [kg]: 0,18 kg
- Wire gauge AWG: 34-8
- Surface: black
- REACH: compliant
- Design non-sparking: No
Gedore Code-Number: 1830805
EAN: 4010886855188
| Design/type: | standard length |
|---|---|
| Plier type: | Wire strippers |
