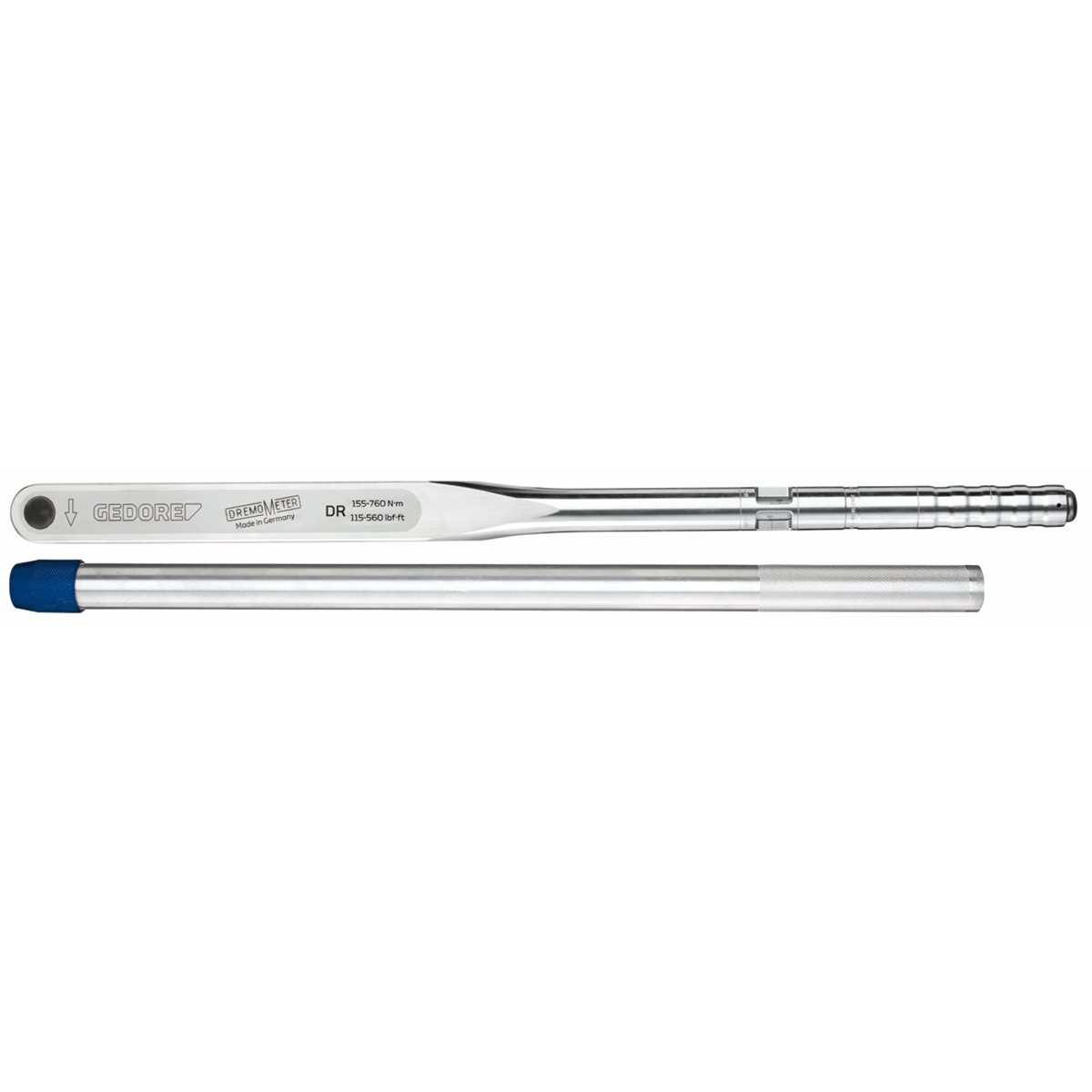

Gedore 8568-01 Torque wrench DREMOMETER DRL 3/4" 1 55-760 Nm
Product number:
274049
Manufacturer no.:
7670500
EAN:
4002805868010
Weight in kg:
4.55
Product information "Gedore 8568-01 Torque wrench DREMOMETER DRL 3/4" 1 55-760 Nm"
Gedore 8568-01 Torque wrench DREMOMETER DRL 155-760 Nm
Gedore 8568-01 Torque wrench DREMOMETER DRL 155-760 Nm
Features:
- Use: Controlled screw tightening in the range of 155 - 760 Nm / 115 - 560 lbf·ft
- For use in almost all industrial manufacturing areas
- Features: Classified according to DIN EN ISO 6789-2:2017 Type II Class A
- incl. traceable test certificate
- calibrated to a maximum permissible deviation of +/- 3 % and thus more precise than the +/- 4 % required by the standard
- 3/4 square drive with pin-locking mechanism DIN 3120 - B 20
- ISO 1174
- Automatic short-path actuation with tactile impulse and audible signal
- Double scale with a scale division of 10 Nm and 10 lbf ft
- Technical advantage/Function: Lightweight yet robust (as the housing is made of an aluminium alloy) and resilient
- very workshop-friendly
- No inaccuracies whether used with both hands or held away from the handle (as for standard torque wrenches)
- Both the square drive and fulcrum are on an axis which ensures a high degree of user safety - can be extended to reduce the user's working load.
- Extremely low wear attributable to reduced forces in a lever mechanism
- Forged lever chain from our group own quality forge
- Maximum precision even when subjected to extreme continuous use
- Long life cycles and tool lives
- Easy operation - fast and safe torque tightening
- Easy adjustment thanks to attractive adjusting button secured against loss at the end of the handle
- Single- and double-square drive for controlled bi-directional tightening"
Technical features:
- Precision +/-: +/- 3 %
- Graduation [lbf·ft]: 10 lbf·ft
- Torque (min.) [lbf·ft]: 115 lbf·ft
- Torque range (min./max.) [lbf·ft]: 115 lbf·ft - 560 lbf·ft

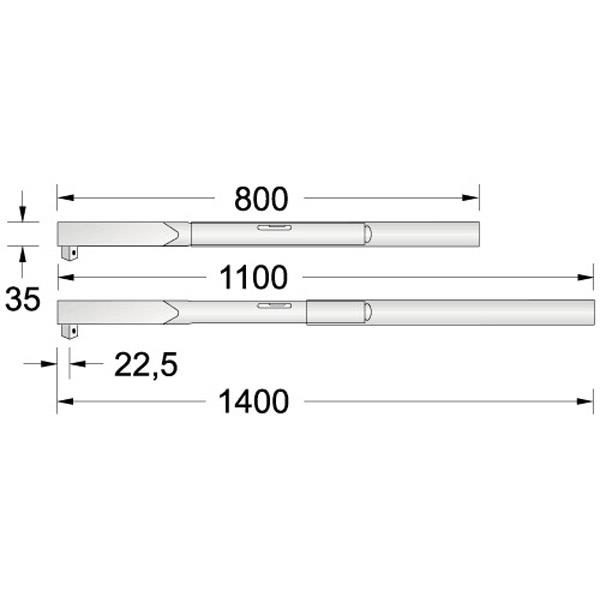

- Calibration length: 1290,5 mm
- Torque (min.) [Nm]: 155 Nm
Gedore Code-Number: 7670500
EAN: 4002805868010
| Drive: | 3/4" (20 mm) |
|---|---|
| Torque Tools: | Mechanical torque wrench |
| Torque range: | 155-760 N·m |
