Gedore DVI-20L Torque Multiplier DREMOPLUS ALU 200 0 Nm
€2,210.95*
Content:
1 pcs
/ 5
Delivery time 5 working days
Variante
Product number:
1852171
Manufacturer no.:
2653249
EAN:
4010886934432
Weight in kg:
4.5
Product information "Gedore DVI-20L Torque Multiplier DREMOPLUS ALU 200 0 Nm"
Gedore DVI-20L Torque Multiplier DREMOPLUS ALU 2000 Nm
Gedore DVI-20L Torque Multiplier DREMOPLUS ALU 2000 Nm
Features:
- Especially suitable for: Industry
- construction sites
- commercial vehicle and car workshops
- agricultural technology
- construction machinery
- Bridge
- ship
- aircraft and railway construction
- refineries
- Machinery and plant engineering
- maintenance
- Features: Mechanical hand torque multiplier for controlled screw tightening and unloosening screw connections
- With a single-stage planet gear
- High-performance aluminium housing
- Models with transmission ratio 1:4
- 1:5.5
- Guaranteed accuracy: Better than +/- 3 % tolerance
- To operate with a suitable torque wrench
- 2 models with maximum load in the range from max. 2000 Nm to 2800 Nm
- Model -Z: with cranked reaction arm Z-shaped made of chrome vanadium steel
- Model -L: with straight reaction arm L-shaped
- with adjustable reaction square
- made of light metal
- Output square with hole for Impact sockets with locking pin and ring

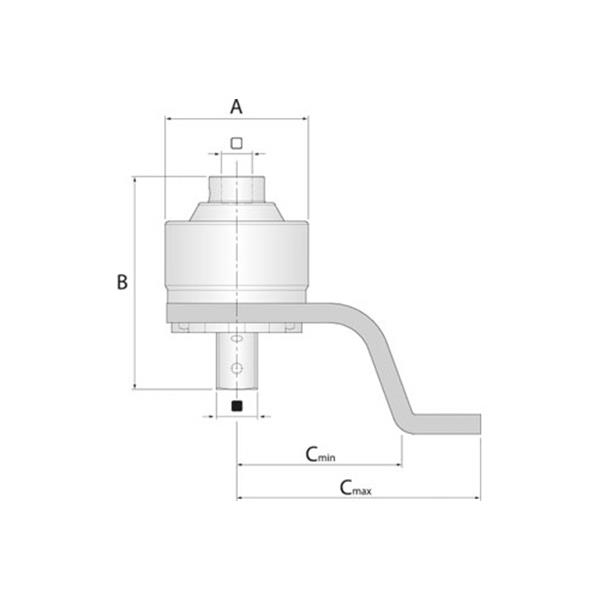

Technical features:
- Multiplication at the ratio: 1:4
- Distance output square - start reaction arm (min.): 73
- Total width without reaction arm: 88
- Total height without reaction arm: 131,0
- Distance output square - end of reaction arm (max): 152
- Output torque (max.) [lbf-ft]: 1500
- Output torque (max.) [Nm]: 2000
Gedore Code-Number: 2653249
EAN: 4010886934432
| Design/type: | offset, straight |
|---|---|
| Drive: | 1" (25 mm) |
| Torque Tools: | Torque Multiplier |
| max. N·m output: | 2000 N·m, 2800 N·m |
