Gedore DVV-40ZRS Torque multiplier DREMOPLUS ALU 4 000 Nm
Product number:
1852162
Manufacturer no.:
2653109
EAN:
4010886934302
Weight in kg:
7.5
Product information "Gedore DVV-40ZRS Torque multiplier DREMOPLUS ALU 4 000 Nm"
Gedore DVV-40ZRS Torque Multiplier DREMOPLUS ALU 4000 Nm
Gedore DVV-40ZRS Torque Multiplier DREMOPLUS ALU 4000 Nm
Features:
- Especially suitable for: Machinery and plant engineering
- Cable cars
- lifts and masts
- Heavy industry
- construction sites
- Bridge construction
- Shipbuilding
- aircraft and railway construction
- Refineries
- plastics industry
- Power plants of all kinds
- Features: Mechanical hand torque multiplier for controlled screw tightening and unloosening screw connections
- With a two-stage planet gear
- High-performance aluminium housing
- Models with 1:16 gear ratio
- DVV-40ZRS model with anti-wind-up ratchet (RS)
- With non-destructive overload protection Slipper" to protect the gearbox
- right and left hand
- Z-form
- offset reaction arm depending on model made of chrome-vanadium steel
- Guaranteed accuracy: Better than +/- 3 % tolerance
- To operate with a suitable torque wrench
- 2 models with maximum load in the range of max. 4000 Nm
- Output square with hole for Impact sockets with locking pin and ring"

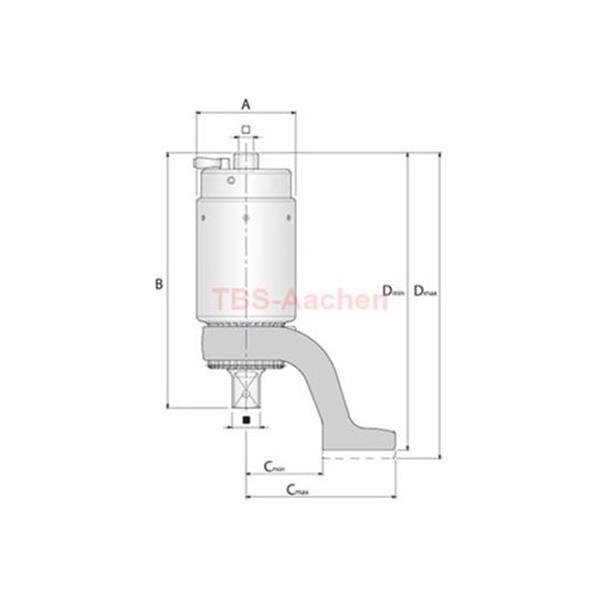

Technical features:
- Multiplication at the ratio: 1:16
- Distance output square - start reaction arm (min.): 68
- Total width without reaction arm: 88
- Distance output square - end of reaction arm (max): 133
- Total height without reaction arm: 227
- Total height with reaction arm (min.): 264
- Total height with reaction arm (max.): 270
Gedore Code-Number: 2653109
EAN: 4010886934302
| Design/type: | offset |
|---|---|
| Drive: | 1" (25 mm) |
| Torque Tools: | Torque Multiplier |
